23.40
Installing gearbox
•

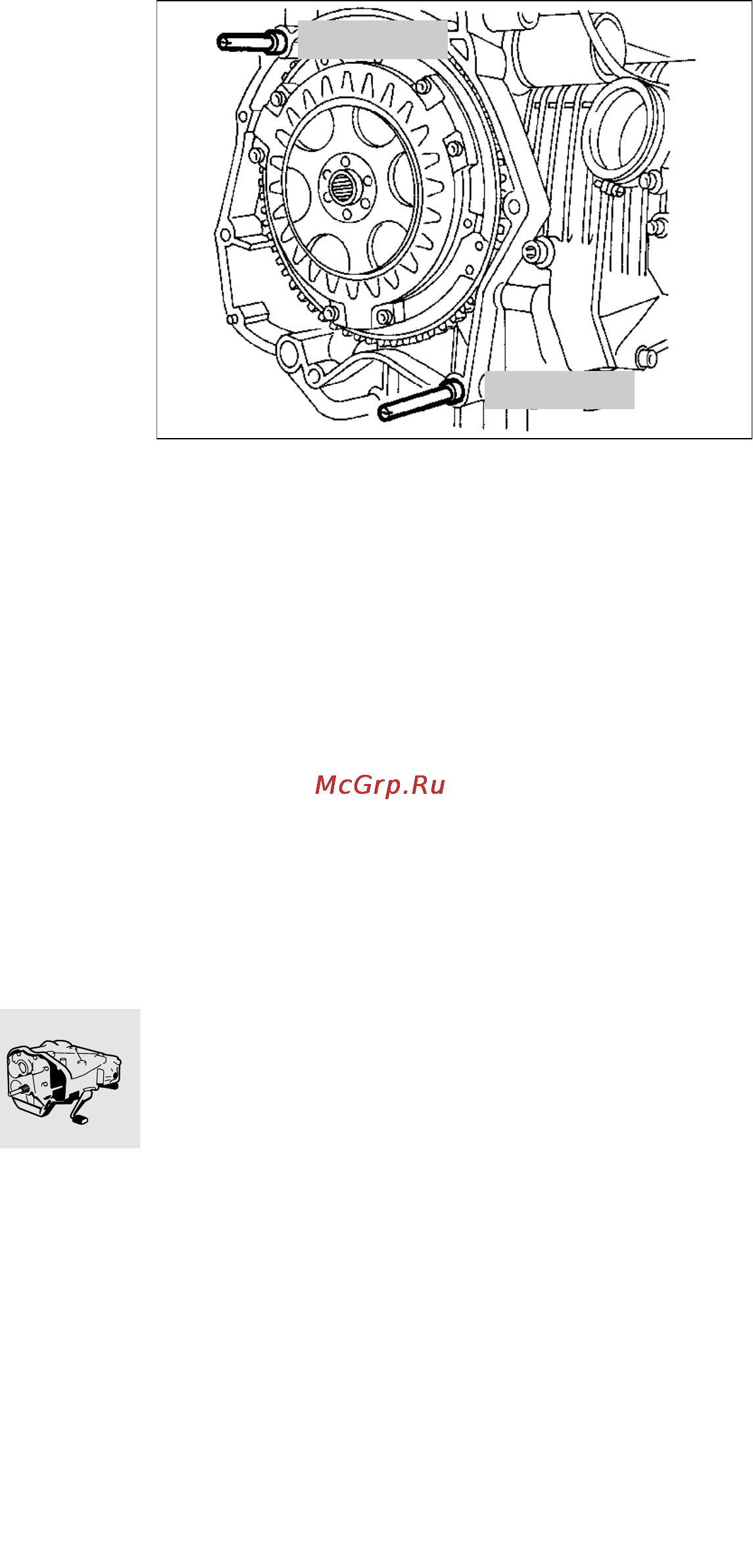

Check centering of driving plate with centering
pin, BMW No. 21 3 680.
•
Screw in guide pins (oiled), BMW No. 23 1 820,
and push the gearbox carefully on to them.
X Tightening torque:
Gearbox to engine block.............................. 22 Nm
•
Installation is performed in the reverse order to
the removal procedure.
23 1 820
23 1 820
RS230011
