23.26

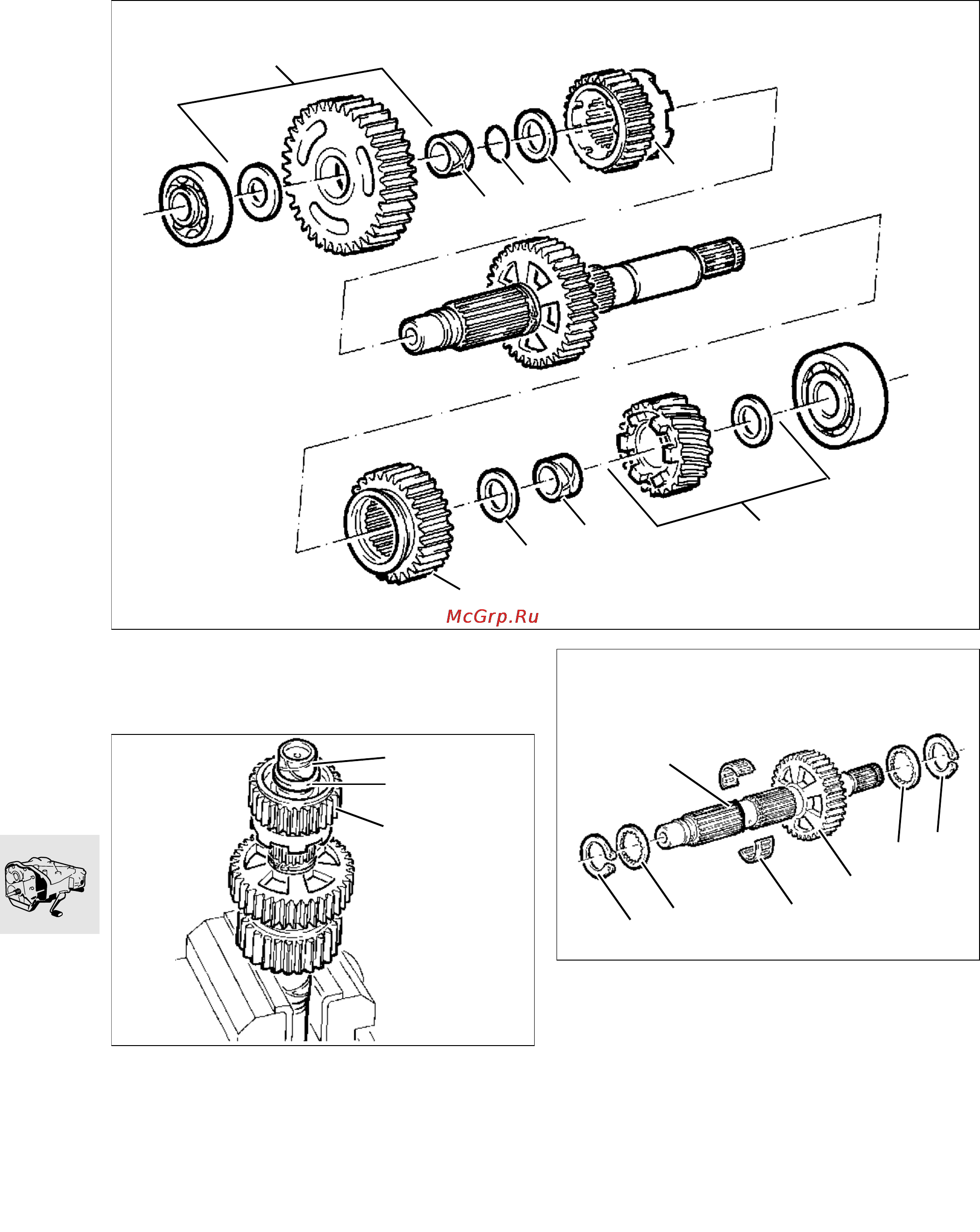

Removing spur gears
•
Remove spur gear for 1st (1) and 5th gear (2) with
thrust washers.
•
Remove thrust washer (4) and bearing bushing
(3) with spur gear for 3rd gear (5).
•
[from 1994 model year on] take off the O-ring
(15).
•
Remove spacer (7) and bearing bushing (6) with
spur gear for 4th gear (8).
•
Remove retaining ring (9).
•
Remove toothed disk (10).
•
Remove spur gear for 2nd gear (11).
•
Remove split needle cage (12).
•
Remove toothed disk (13) and retaining ring (14).
•
[from 1994 model year on] Take off O-ring (16).
1
6
15
7
8
3
4
5
2
RS230193
3
4
5
RS230194
16
14
13
12
11
10
9
RS230195
