BMW R850 1100GS (2000) [361/464] Rt removing and installing lower rear section
![BMW R850 1100GS (2000) [361/464] Rt removing and installing lower rear section](/views2/1121034/page361/bg169.png)
46.18

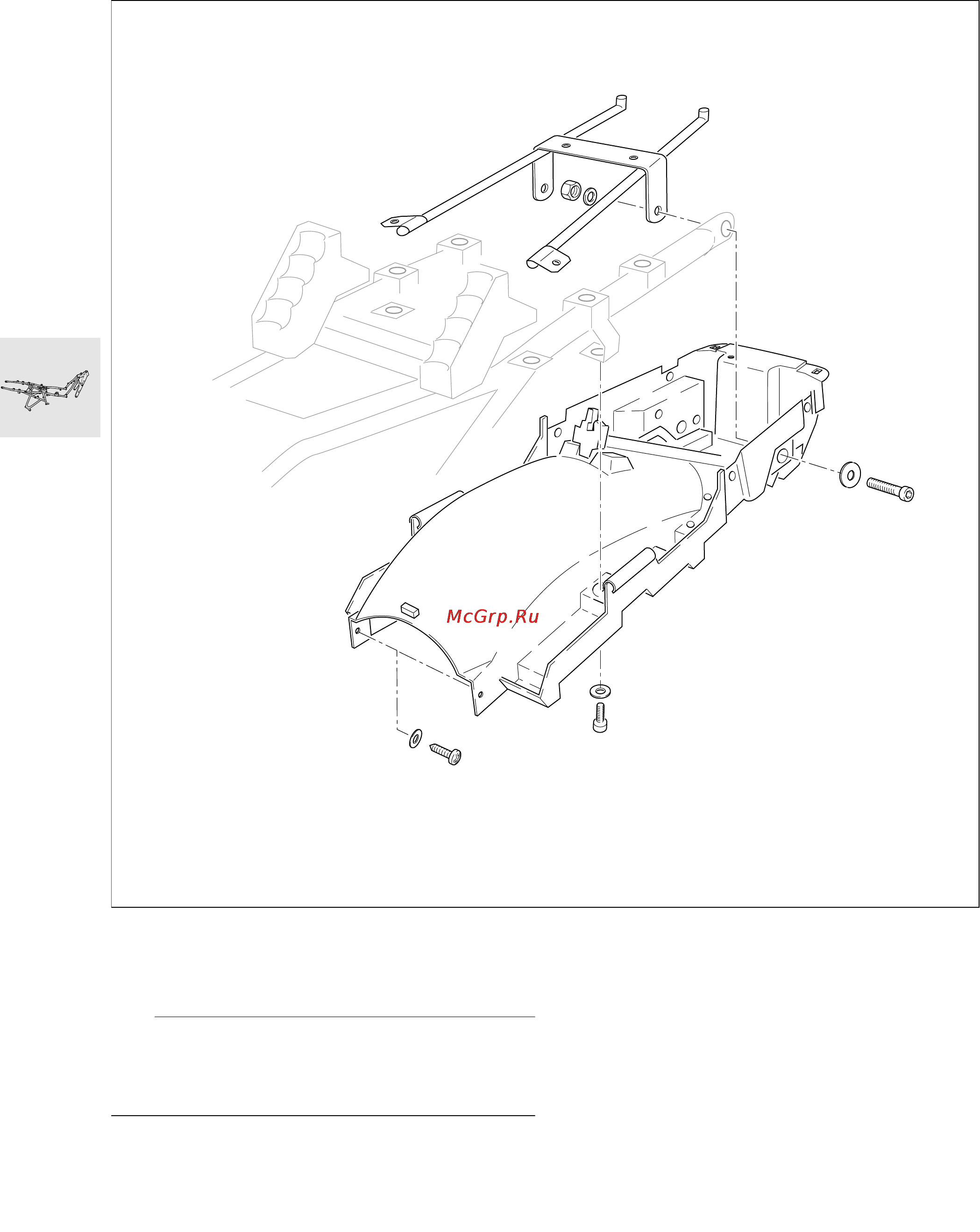

[RT] Removing and installing lower
rear section
e Caution:
Switch off ignition.
Disconnect ground (earth) lead from battery.
Insulate ground (earth) lead.
•
Remove dualseat.
•
Remove small side sections of fairing.
•
Remove rear light.
•
Remove luggage rack and case holder.
•
Remove rear trim panel.
•
Remove lower rear section.
•
Install in the reverse order of work.
2x
2x
2x
2x
RT460350
