11.44
•

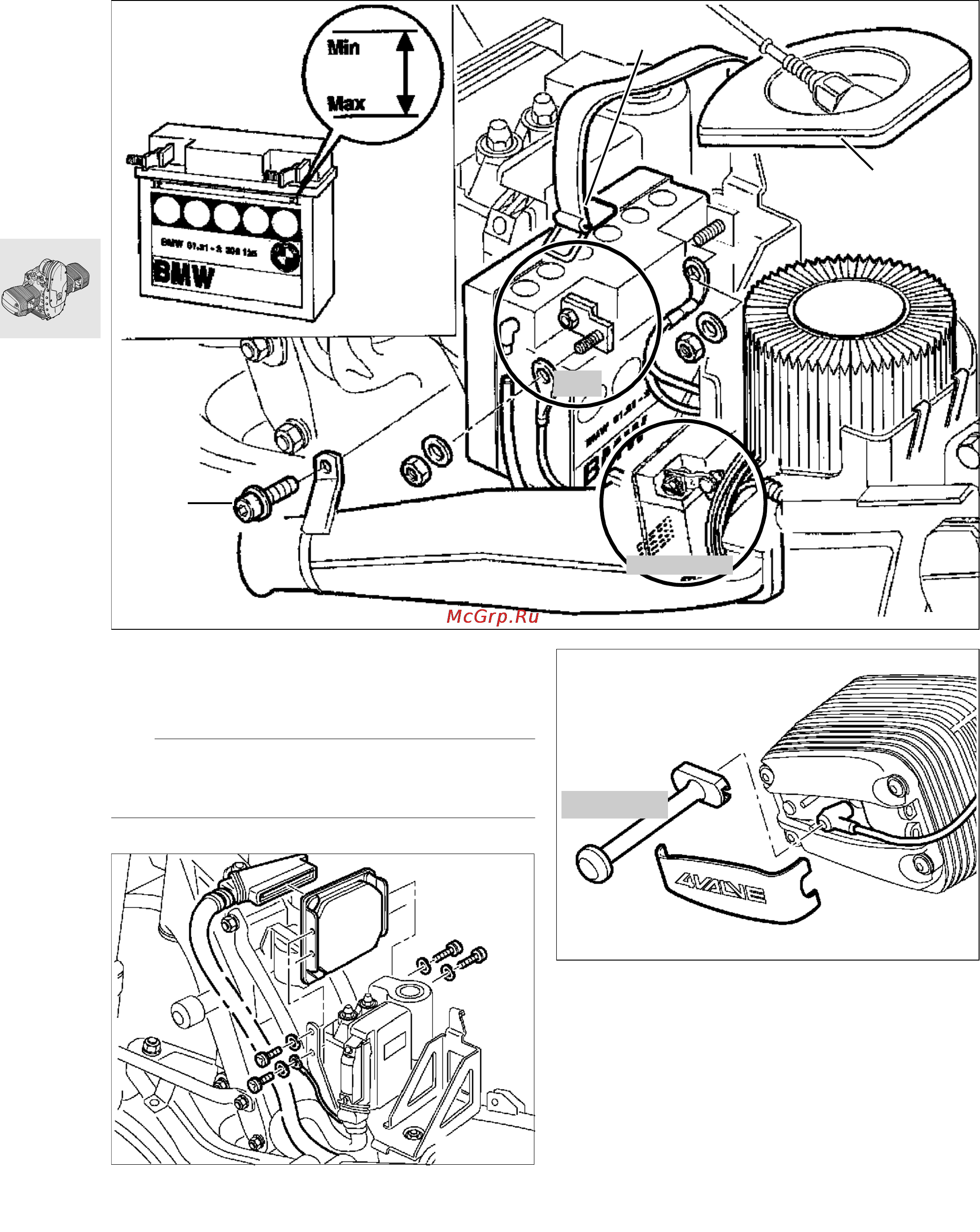

Remove air filter cover (1) and air intake pipe (2).
•
Remove battery (3).
e Caution:
Disconnect negative terminal first, then positive
terminal.
•
Remove Motronic control unit.
•
Remove spark plug covers.
•
Pull off spark plug caps with puller,
BMW No. 12 3 520.
RS
1
2
3
GS/R/RT
RS000340
RS130010
12 3 520
RS120170
