32.14
Removing and installing cold-start
cable
•

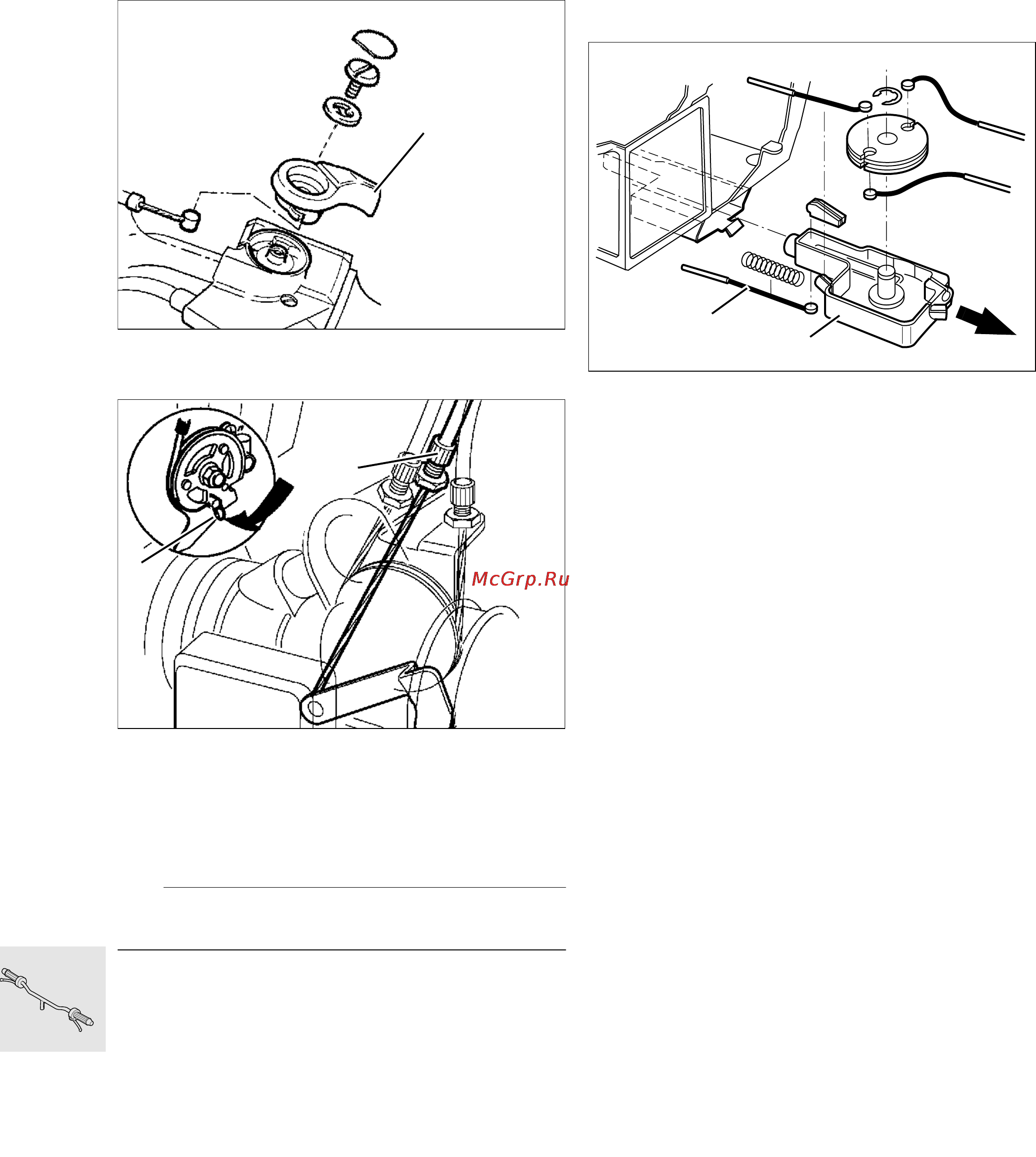

[RS/RT] Remove the left fairing.
•
[GS] Detach the fuel tank and pull it to the rear.
•
Remove actuating lever (1)/disconnect cable
•
Slacken off cable adjustment screw (2) on left
throttle body
•
Press in retaining spring (3) and disconnect
cable.
•
Install in the reverse order of work..
e Caution:
Install wire cable without kinking.
•
Adjust wire cable.
a See Group 00
With wire cable distribution block
•
Remove cable cover at throttle fitting/disconnect
the cable.
•
Remove actuating lever (1)/disconnect cable.
•
Remove the cable adjusting screws at the right
and left throttle stub pipes.
•
Press in the retaining spring and remove the
cable
•
Remove the wire cable distribution block (4) in
the direction of the arrow.
•
Detach cable (5).
•
Install in the reverse order of work.
•
Adjust wire cable
a See Group 00
1
RS320060
RS320070
2
3
4
5
RT320130
