BMW R850 1100GS (2000) [127/464] Checking conrods
![BMW R850 1100GS (2000) [127/464] Checking conrods](/views2/1121034/page127/bg7f.png)
11.77

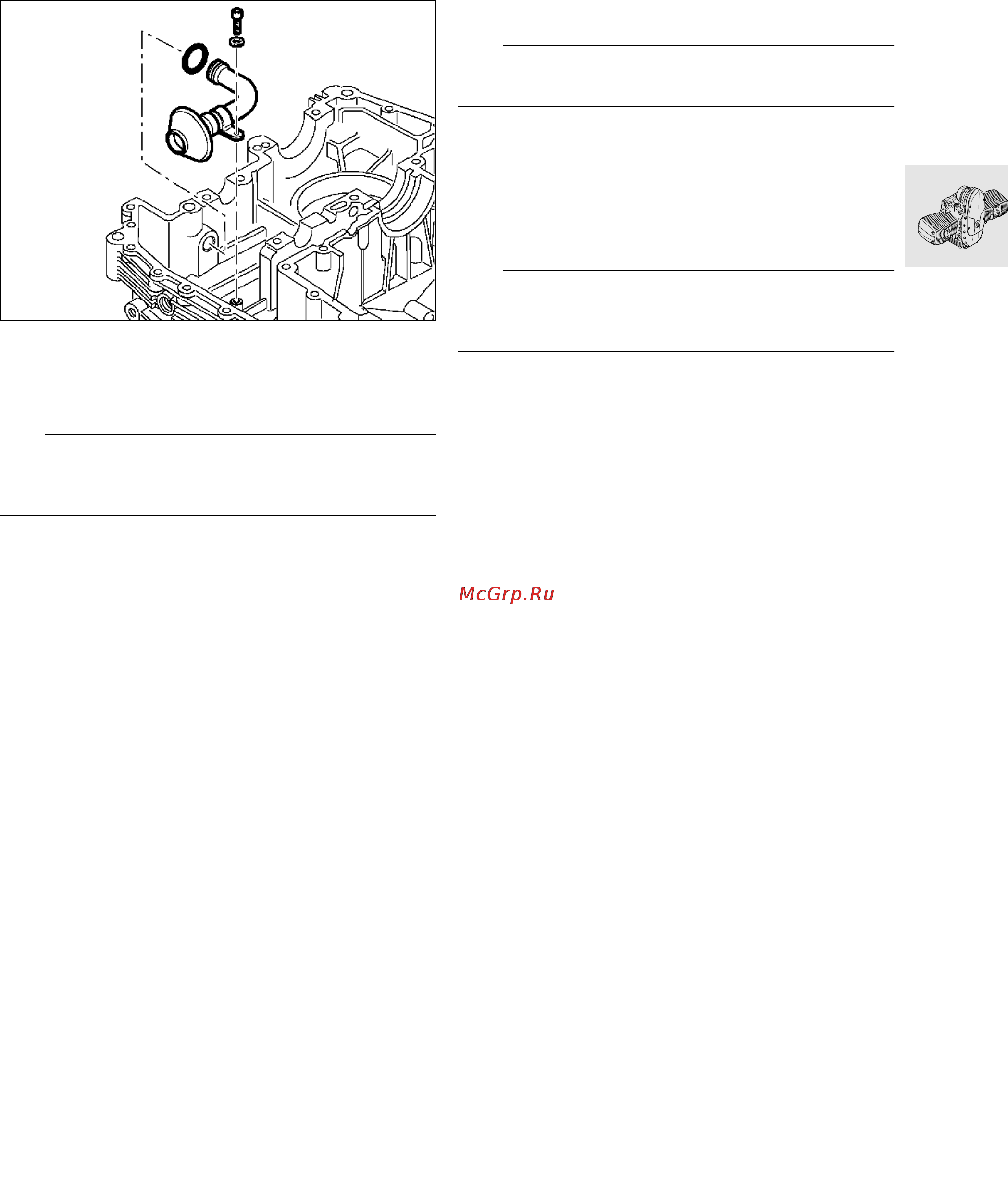

Removing and installing oil pick-up
basket
X Tightening torque:
M6 screw ........................................9 Nm (0.354 in)
e Caution:
Make sure that the O-ring is not omitted, and is
installed undamaged.
Replacing oil level sight glass
•
Pierce the plastic disc with a large screwdriver
and lever out the oil level sight glass.
•
Coat the sealing face of the new oil level sight
glass with engine oil and drive it in with drift,
BMW No. 00 5 550.
Removing conrods
•
Clamp crankshaft in a vise provided with protec-
tive jaws.
•
Remove conrod
e Caution:
Do not accidentally confuse the conrods.
Checking conrods
•
Check conrod dimensions.
a See Technical Data.
e Caution:
Sintered-metal conrods must never be straightened
– risk of fracture.
RS110300
