46.28

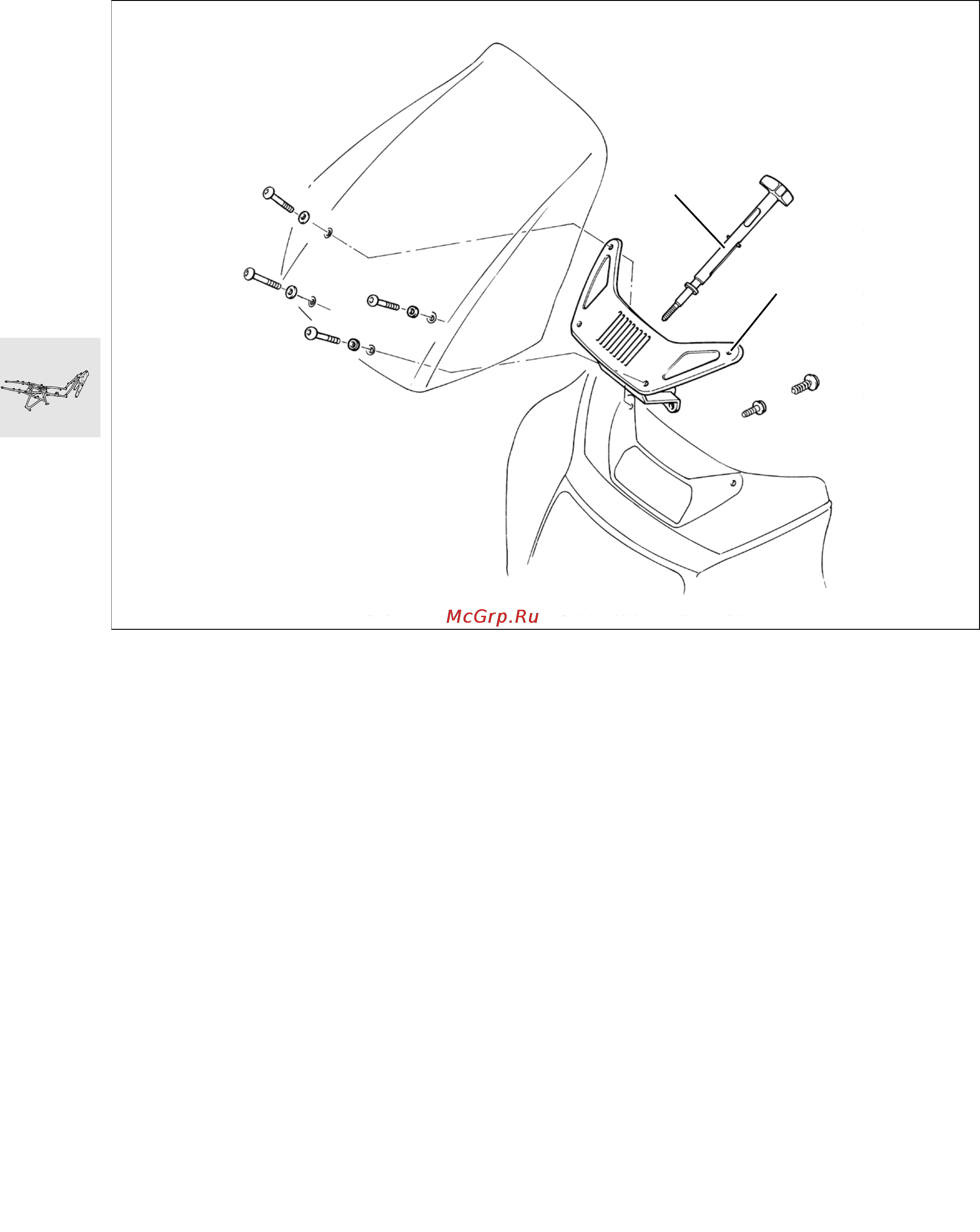

[RS] Removing and installing
adjustable windshield
•
Remove windshield.
•
Remove side sections of fairing.
•
Remove inner fairing panel.
•
Turn adjusting shaft (1) counterclockwise to
unfasten.
•
Detach instrument cluster.
•
Detach top section of fairing.
•
Remove headlight.
•
Remove bracket (2) for windshield.
•
Install in the reverse order of work.
1
2
RS460090
