46.49

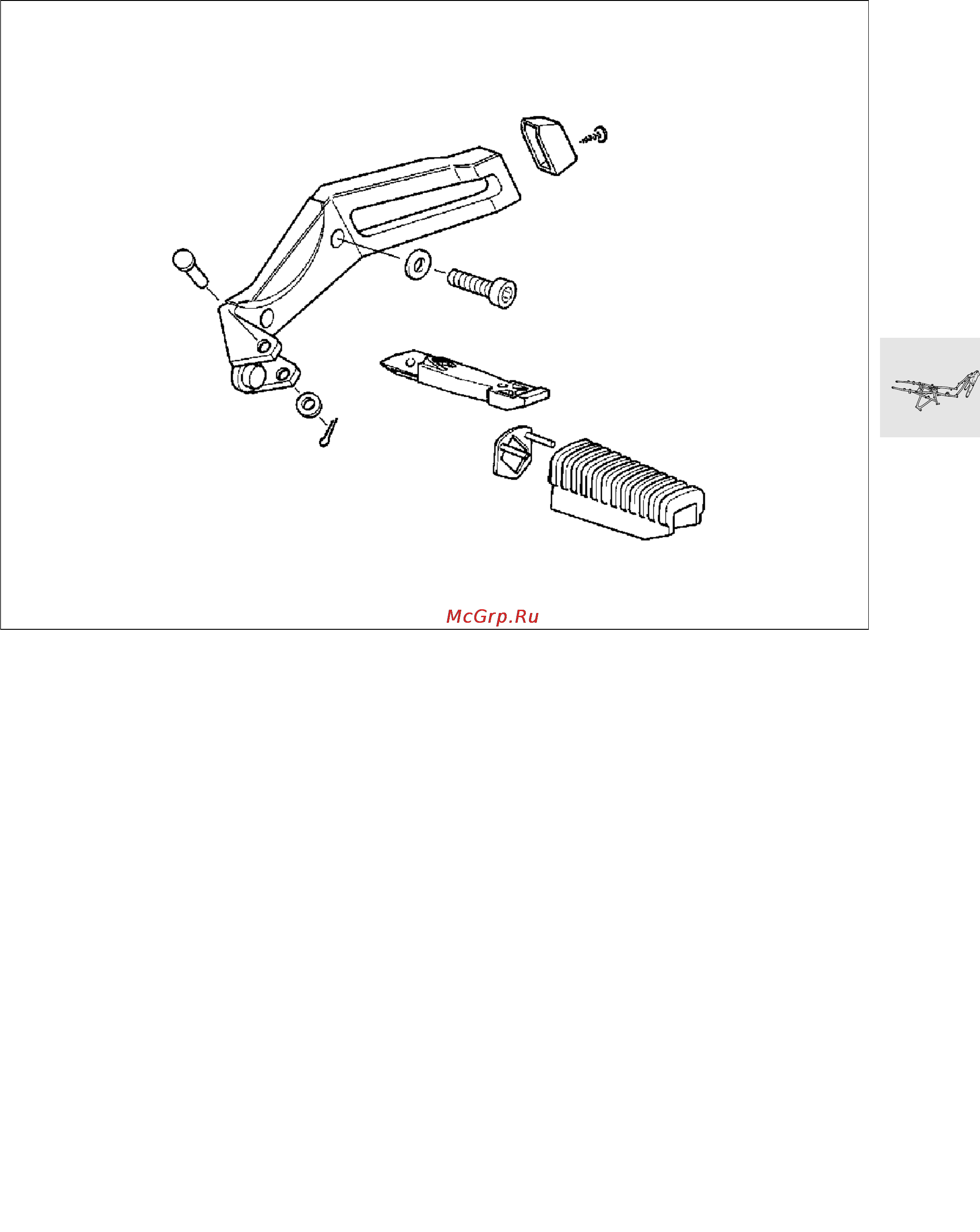

[GS/R] Removing and installing rear
footrest plate
X Tightening torque:
Footrest plate to rear frame.......................... 21 Nm
GS460181
