11.78
Measuring main and big end bearing
play
easuring radial bearing play
•

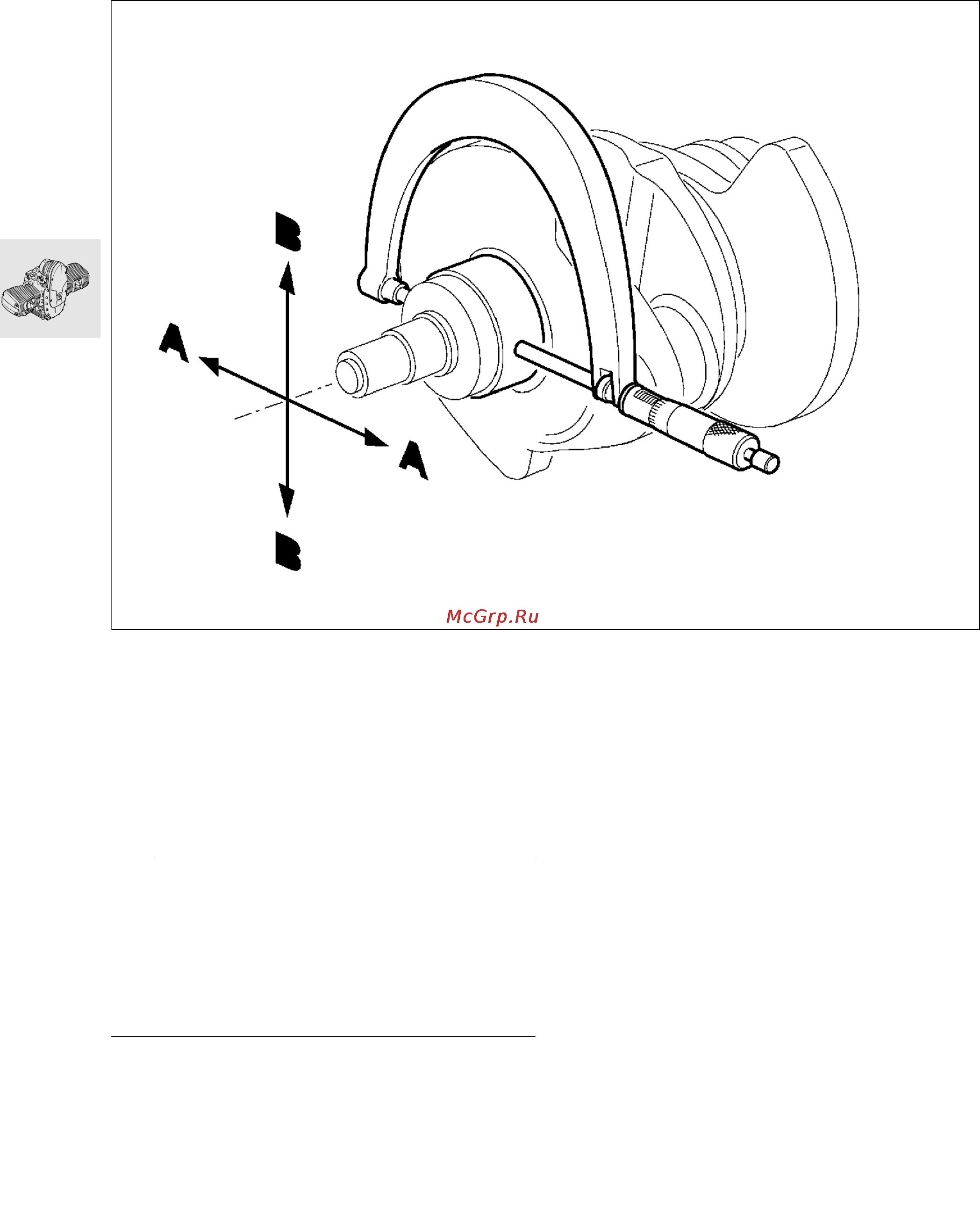

Measure main bearing journal with an external
micrometer crosswise in two planes, A and B.
•
Enter measured values on record sheet.
a See Technical Data.
e Caution:
The crankshaft can only be reground in
grinding stage 0; after this it must be rehardened
and finished. Grinding stages are identified by a
paint mark on the front crank web.
a See Technical Data
If the bearing shells have to be replaced, note
colored marks on crankpins and big end bearings.
RS110310
