BMW R850 1100GS (2000) [293/464] Installing drive shaft
![BMW R850 1100GS (2000) [293/464] Installing drive shaft](/views2/1121034/page293/bg125.png)
33.24

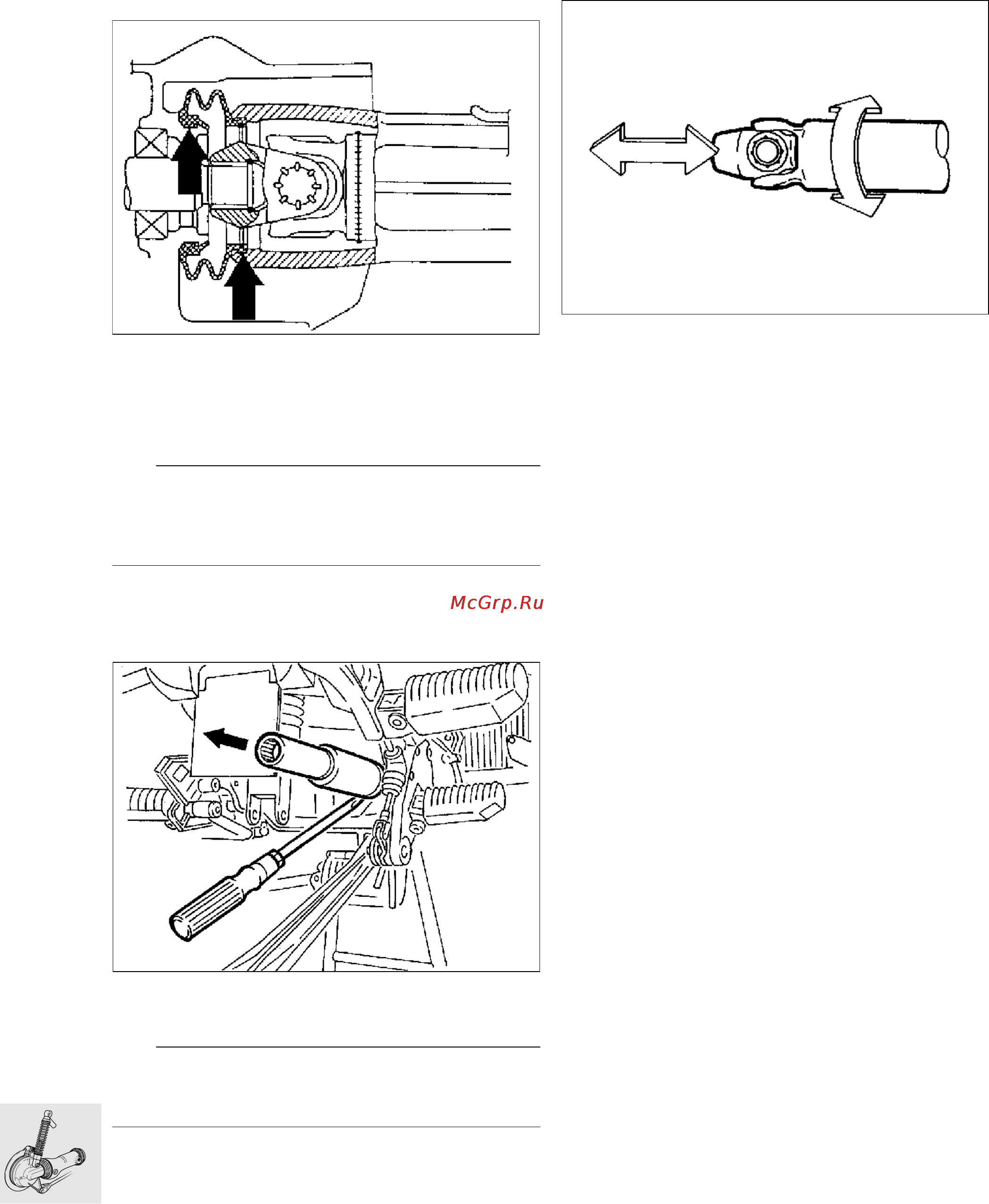

Removing and installing flexible gaiter
•
Remove inner retaining ring; remove gaiter from
swinging arm.
•
When installing, coat inner and outer sealing lips
(arrows) with Staburags NBU 30 PTM.
e Caution:
Drive shaft clearance when suspension is com-
pressed: aperture in retaining ring must be
horizontal.
Removing drive shaft
•
Press off drive shaft.
e Caution:
Do not scratch painted components: if necessary,
use a rubber mat.
Checking universal joint for wear
•
Determine end float and face runout.
Installing drive shaft
•
Coat the splines on the output shaft with
Staburags NBU 30 PTM.
•
Fit drive shaft to output shaft.
•
Engage the snap ring with gentle blows (plastic
hammer).
LT330300
RS330040
LT330420
