63.9

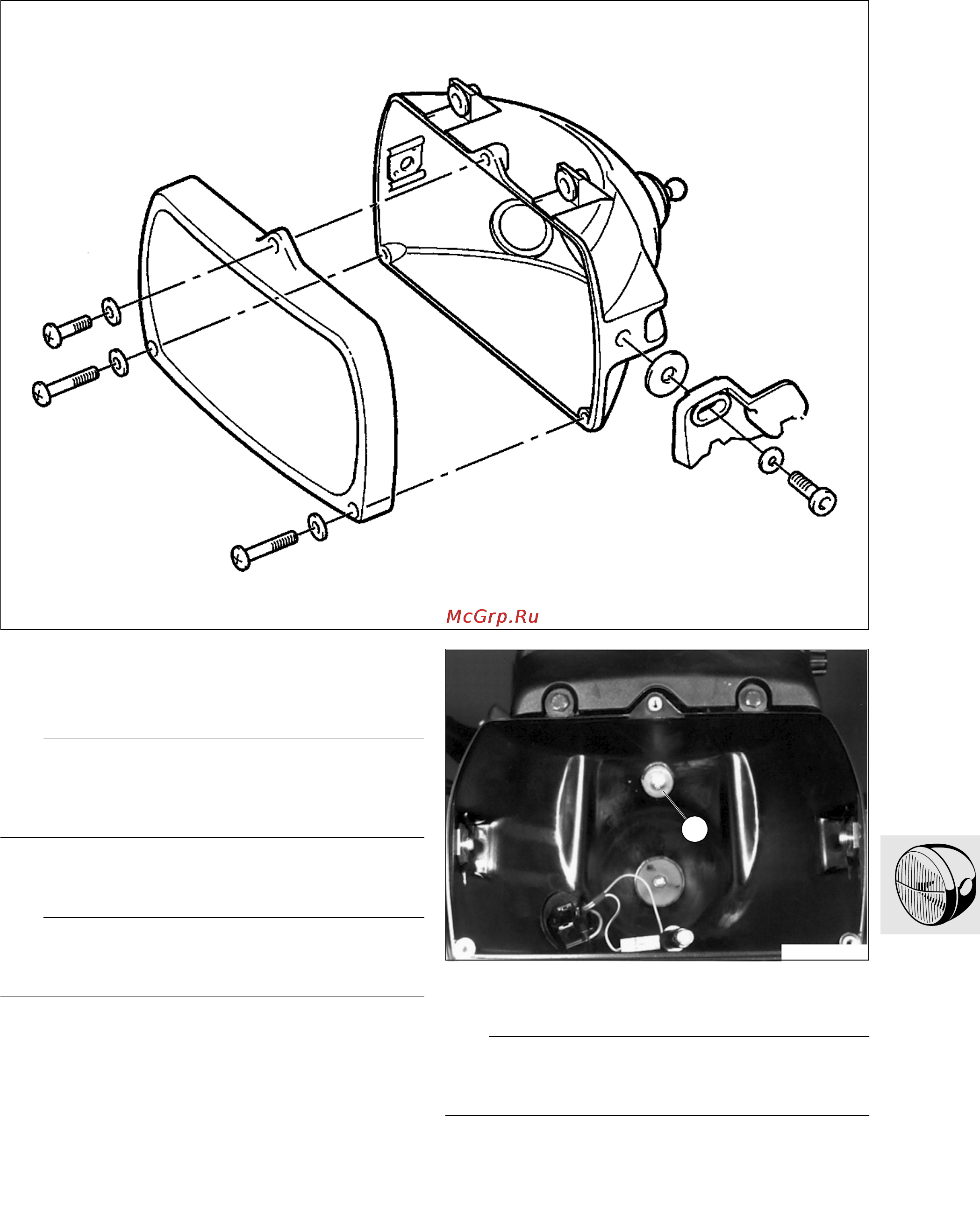

[GS] Removing and installing head-
light
e Caution:
Switch off ignition.
Disconnect ground (earth) lead from battery.
Insulate ground (earth) lead.
•
Remove windshield.
•
Remove headlight insert.
e Caution:
Do not touch inner surface of reflector or bulbs with
bare hands.
•
Detach instrument cluster.
L Note:
The center retaining screw (1) is in the headlight
housing.
•
Unfasten headlight beam throw adjuster.
•
Remove headlight housing.
RS630030
1
GS620020
