34.18
[RT] Removing and installing front
ABS sensor
•

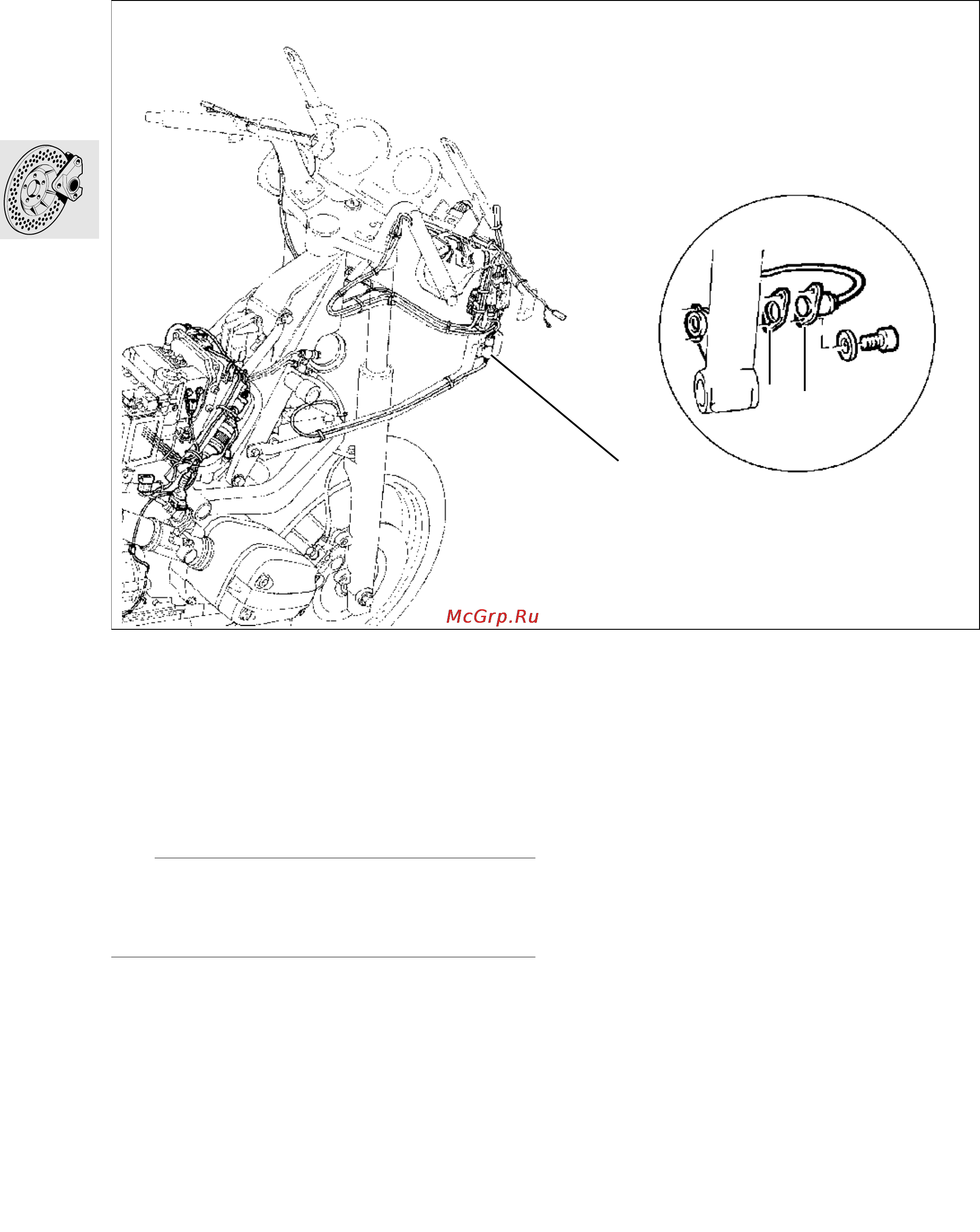

Remove right side sections of fairing.
•
Remove front mudguard.
•
Separate plug connector (1) in sensor line.
•
Remove sensor (2) with Torx T 25.
•
Install in the reverse order of work.
e Caution:
Run the sensor line correctly.
Check sensor gap and adjust if necessary with
spacer plate (3).
Sensor gap:.. 0.45...0.55 mm (0.0177...0.02165 in)
X Tightening torque:
Sensor ..........................................handtight, 4 Nm
RT340090
1
3
2
