Removing and installing frame
•
Remove fuel tank.
•
Detach brake line from frame.
•
[RS/GS] Detach fairing holder at frame.
e Caution:
Fairing will drop unless held securely.
If necessary, place foam rubber or similar material
below fairing panel.
•
Detach ball joint at front of control arm and pull
telescopic fork forwards.
•
Detach front suspension strut at top.
•

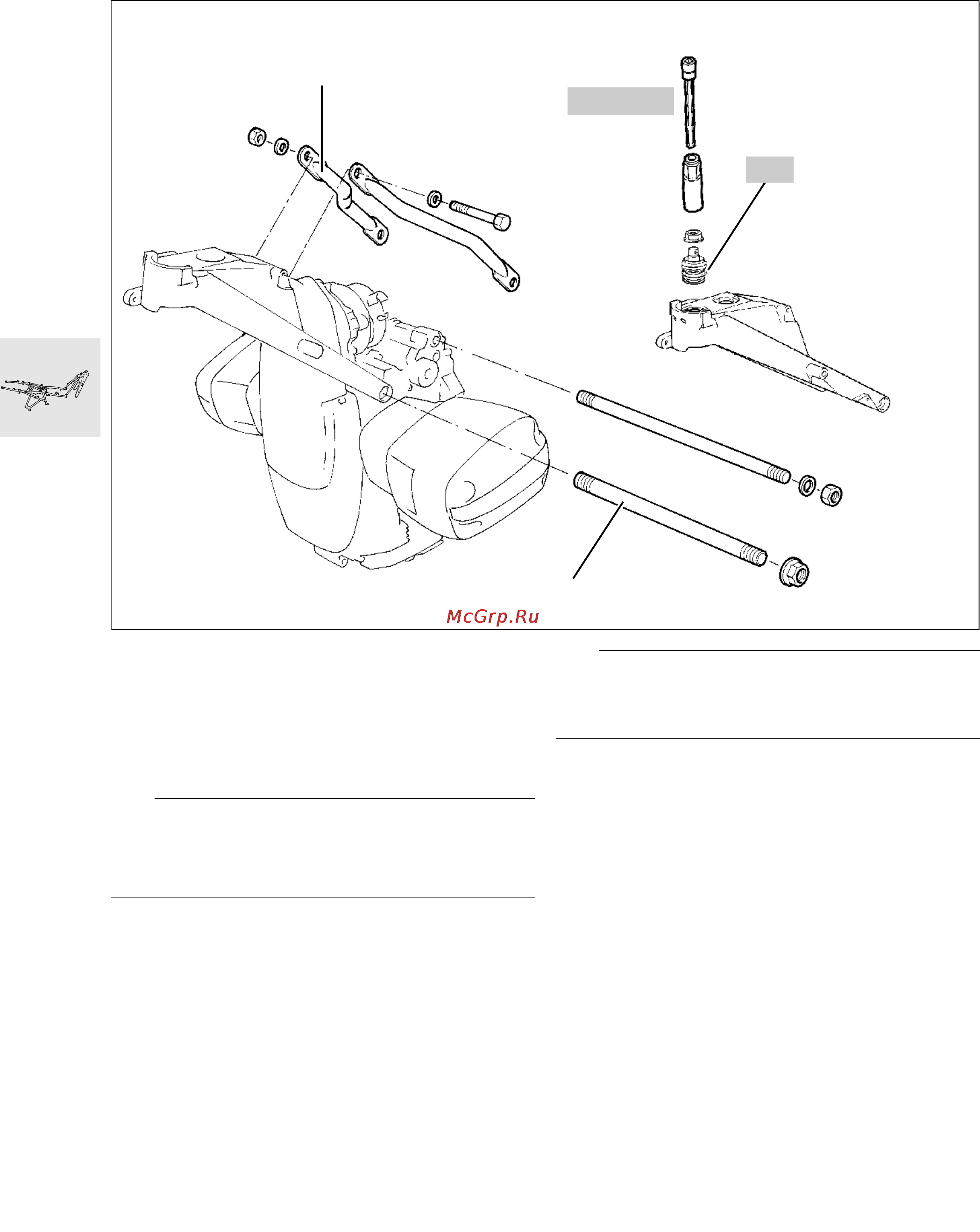

Unscrew pin (1) from engine and remove.
•
Screw the ball joint on handtight at the front of
the leading link.
•
Detach struts (2) from frame and loosen at
engine.
•
[RS] Using socket wrench insert with 6 mm
(0.2362 in) Allen key, BMW No. 31 5 600, detach
ball joint at fork bridge.
•
[R] Detach handlebar from fork bridge.
•
[R] Pull headlight holder forwards.
•
Unfasten screw connection between fork bridge
and frame.
L Note:
Screw pin is a press fit in ball thrust bearing: remove
complete unit.
•
[R] Detach oil cooler holder.
•
Remove frame.
•
Install in the reverse order of work.
X Tightening torque:
Frame to engine ........................................... 82 Nm
Struts to frame
(8.8 screw) ................................................... 47 Nm
(10.9 screw) ................................................. 58 Nm
Struts to engine
[RS] ............................................................. 47 Nm
[GS/R] ......................................................... 58 Nm
Fairing support bracket to frame .................. 20 Nm
