BMW R850 1100GS (2000) [305/464] Dismantling rear brake caliper
![BMW R850 1100GS (2000) [305/464] Dismantling rear brake caliper](/views2/1121034/page305/bg131.png)
34.10
[RS] Dismantling and assembling
rear brake caliper

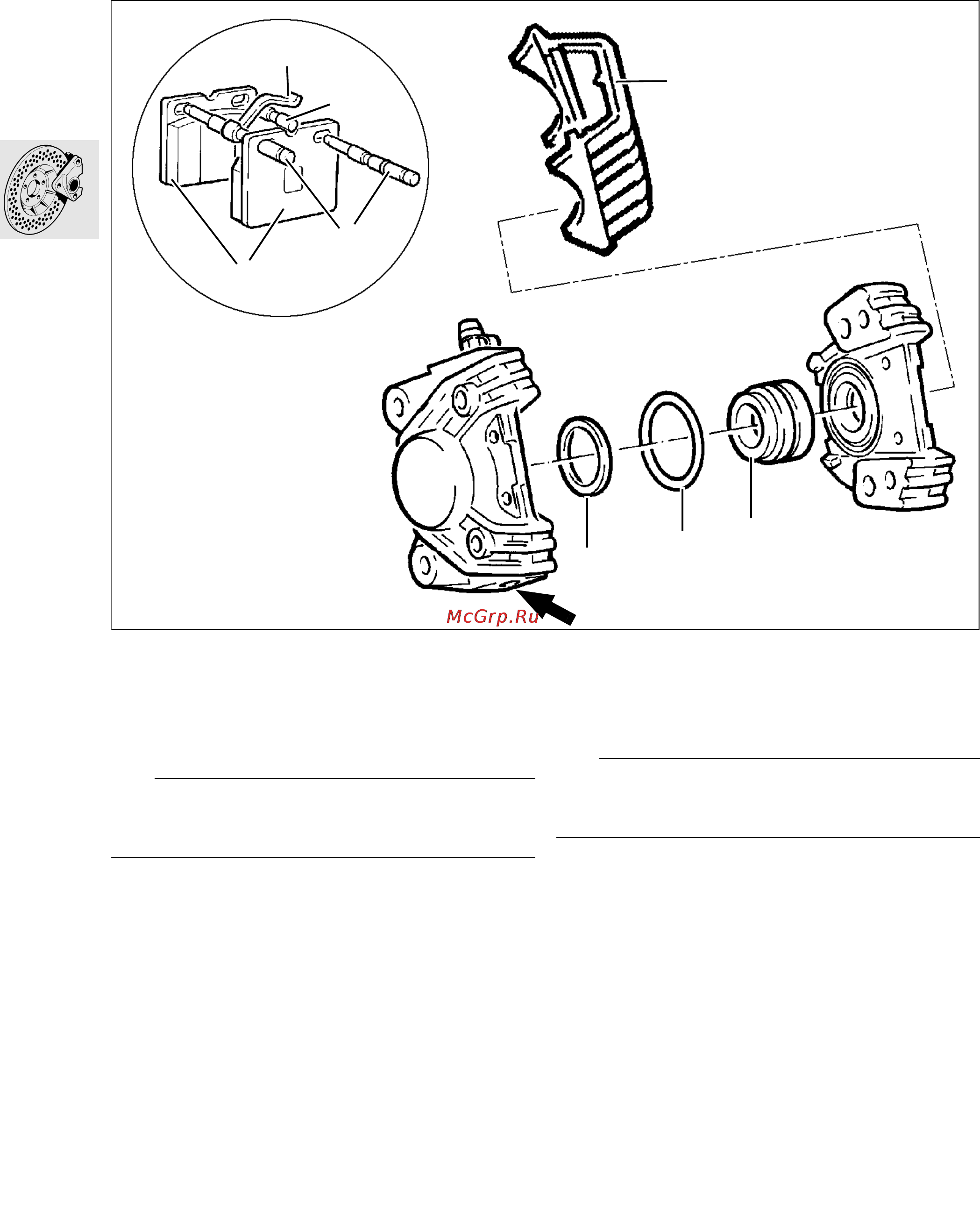

Dismantling rear brake caliper
e Caution:
The two halves of the brake caliper
must not be unscrewed!
•
Remove protective cap (1).
•
Drive out retaining pins (2) from the wheel side.
•
Take out clamping pin/curved spring (3/4).
•
Take out brake pads (5).
•
Take out dust protection sleeve (6) at left/right.
•
Seal the bleed screw.
X Tightening torque:
Bleed screw at brake caliper .......................... 7 Nm
•
Hold a cloth over the brake caliper.
•
Carefully press our brake piston (7) with a com-
pressed air gun at the connecting bore, working
at low air pressure.
e Caution:
Do not allow your fingers to be trapped by the pis-
ton; risk of injury!
•
Remove sealing ring (8) from the left/right wheel
brake cylinders.
•
Inspect the brake caliper piston for hairline
cracks/score-marks/other damage.
RS340133
6
8
7
1
4
3
2
5
