33.10
•

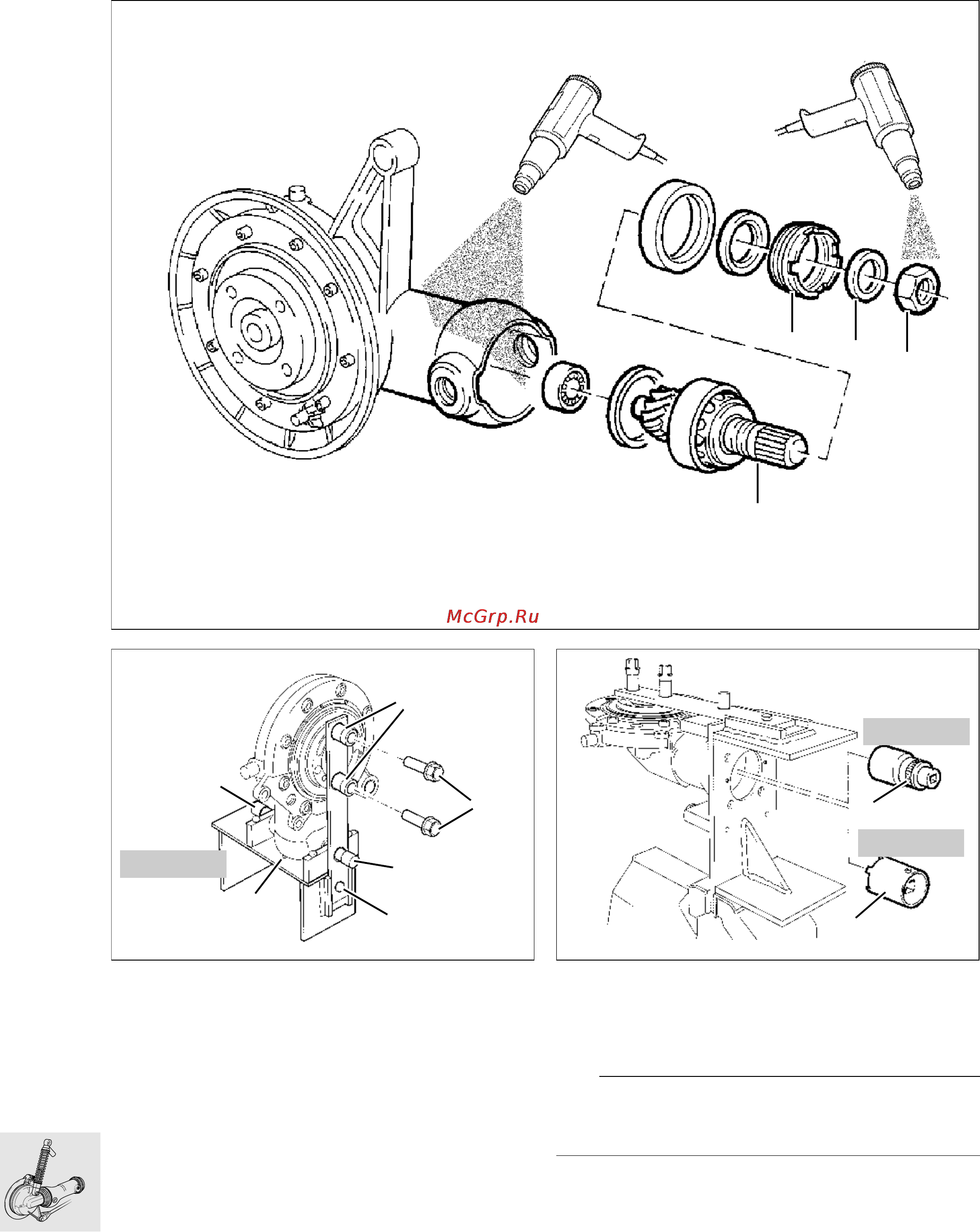

Bolt rear wheel drive centrally onto retaining fix-
ture, BMW No. 33 1 510, with bearing journal (1).
•
Bolt the locking arm (3) on tight.
•
Move threaded sockets (5) up to rear wheel
drive.
•
Tighten with wheel studs (2).
•
Tighten grub screws (4) until they make contact.
•
Heat hex nut (5) at input bevel pinion to 100 °C
and unscrew it with 36 mm socket wrench insert
and reducing adapter (1), BMW No. 33 1 720
e Caution:
Never use a hammer when loosening the hex nut:
this could damage the splines.
•
Remove thrust ring (6).
•
Heat housing to 120 °C and unscrew threaded
ring (7) with pin wrench (2), BMW No. 33 1 700.
•
To remove the input bevel pinion (8), heat bear-
ing seat to 120 °C.
8
7
6
5
j
100
j
120
LT330012
33 1 510
1
2
1
3
4
5
RT330350
1
33 1 720
2
33 1 700
RT330360
