23.22
•

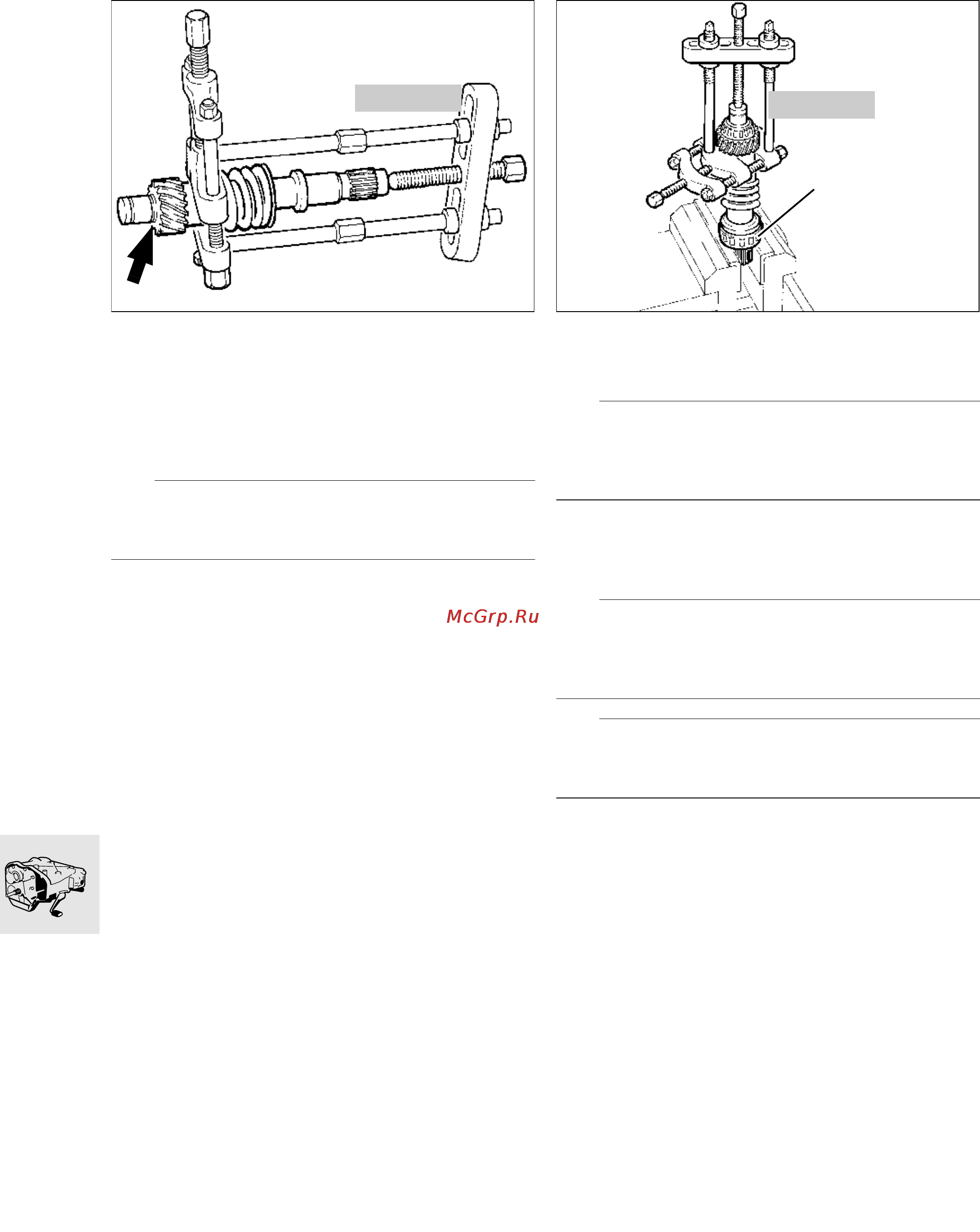

Use universal puller to tension spur gear against
coil spring until entire step (arrow) protrudes from
the spur gear.
•
To install using a press, press on taper roller
bearing cold, or heat it to 80 °C and position it on
the input shaft.
e Caution:
If necessary, drive further on by striking inner race
only.
•
Install retaining ring/washer (1) in front of taper
roller bearing.
•
Fit universal puller under spur gear and press ta-
per roller bearing firmly against retaining ring.
e Caution:
To prevent measuring errors when installing shims
later, zero backlash is required between
bearing and retaining ring.
•
Using a press, press on taper roller bearing (7)
cold, or heat it to 80 °C and position it on the
input shaft.
L Note:
If the input shaft has to be shimmed again, do not in-
stall taper roller bearing (7) until measuring work is
complete.
e Caution:
If necessary, drive further on by striking inner race
only.
00 7 500
RS230170
00 7 500
7
RS230171
