12.9

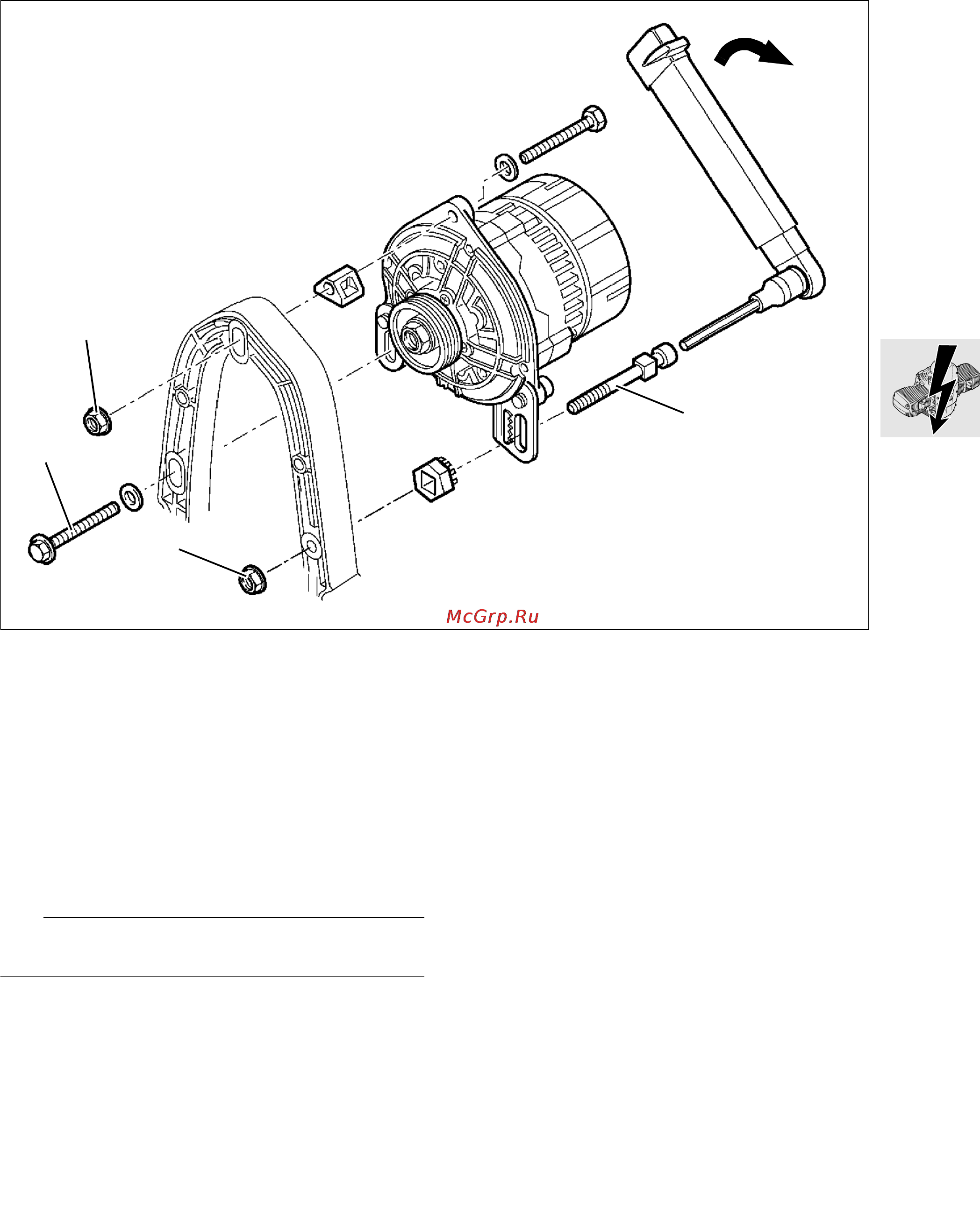

Adjusting procedure for Poly-V belt:
Poly-V belt installation procedure:
•
Place the Poly-V belt in position, tension it, turn
the engine over once, then relieve belt tension
Poly-V belt tensioning procedure:
•
Loosen alternator mount (1, 2, 3).
•
Screw up hex nut (1) at adjusting screw (4) lightly
by hand (using no tools)
•
Tighten adjusting screw (4) using torque wrench;
fully tighten retaining nut (3), slacken off adjusting
screw and tighten down screws.
L Note:
Siehe auch Serviceinformation 12 020 95 (700).
X Tightening torque:
Poly-V belt preload......................................... 8 Nm
Alternatorto alternator support cover............ 20 Nm
Positive lead to alternator............................. 15 Nm
Belt pulley at alternator................................. 50 Nm
2
3
1
4
RS110480
