11.95
•

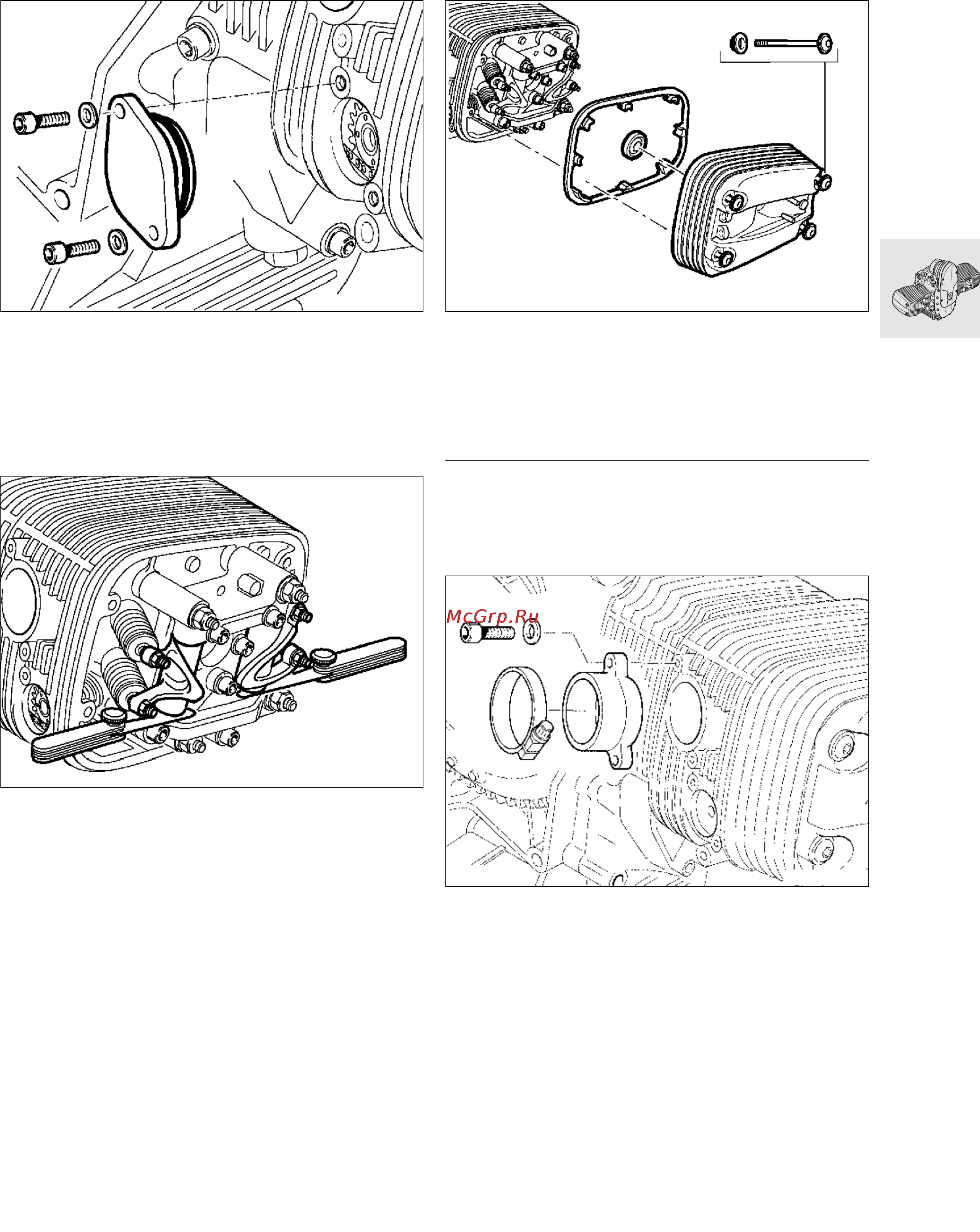

Install the end cover with an O-ring which is in
good condition.
X Tightening torque:
M 6 screw ...................................................... 9 Nm
•
If necessary, reduce end play to a minimum by
repositioning the bearings.
Rocker end float:
min........................................ 0.05 mm (0.00197 in)
max......................................... 0.40 mm (0.0157 in)
•
Install cylinder head cover.
e Caution:
Ensure that gaskets are properly seated. Gaskets
and sealing face must be free from oil and grease
X Tightening torque:
Cover screw................................................... 8 Nm
•
Tighten air intake stub pipe.
X Tightening torque:
M 6 screw ...................................................... 9 Nm
RS110050
RS110100
RS110940
RS110440
