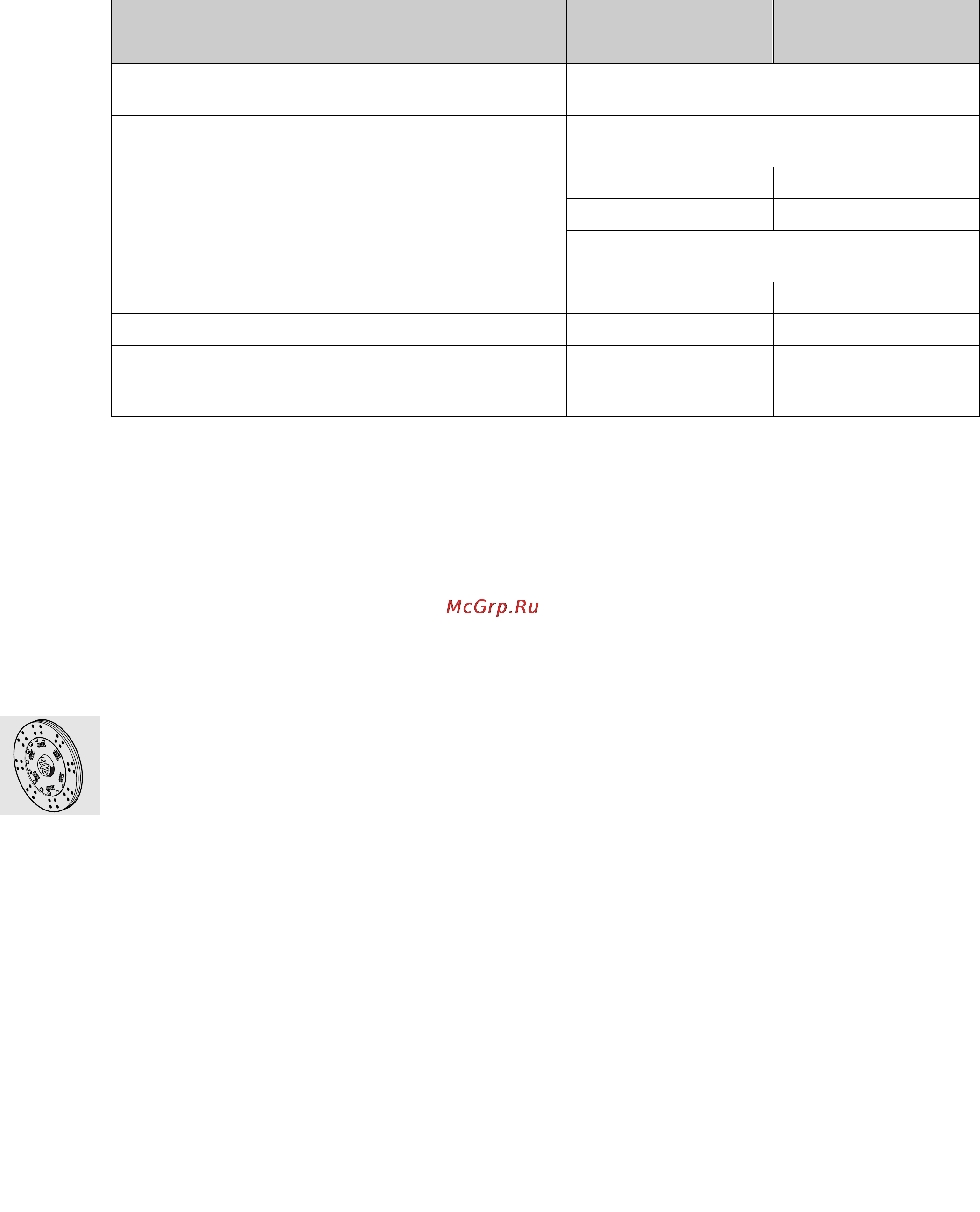

21.6
Technical Data R 850 R R 1100 R
Type of clutch Single dry plate with increased-leverage
diaphragm spring
Operation Mechanical, with release lever and thrust rod
passing through hollow gearbox shaft
Clutch plate dia. mm (in) 180 (7.0879 180 (7.0879
Wear dimension mm (in) 4,5 (0.177) 4,5 (0.177)
(measured on rivets of clutch plate using tips of
sliding caliper, pressed together by hand)
Manual effort required Nm 65 65
Clutch operating clearance at handlebar lever mm (in) 7 (0.276) 7 (0.276)
Distance for basic clutch adjustment
(free thread length at adjusting screw on
handlebar lever) mm (in) 12 (0.472) 12 (0.472)
