23.11
•
Remove brake fluid reservoir from holder.
•
Remove rear brake pipe from holder.
•
Detach retaining clip from ball head/shift linkage
and remove ball head.
•
Take off the footrest plates.
•
Unfasten rear frame screw connections but only
loosen front strut mounts.
•
Remove suspension strut.
•
Tilt rear frame upwards and secure with strap.
•
Remove rear brake caliper.
•
Unfasten strut at gearbox housing.
•
Heat rear wheel drive pivot pin to max. 120 °C/
loosen.
•
Remove rear wheel.
•
Remove rear wheel drive unit.
•
Remove swinging arm/heat pivot pin to max.
120 °C and remove.
•
Press off drive shaft.
•
Unfasten fuel line from injector and remove.
•
Remove cable connector/wiring harness from air
cleaner box.
•
Detach return line/oil trap from air cleaner box.
•
Remove air cleaner box.
•
Disconnect clutch cable from gearbox.
•
[RS/GS/R] Detach starter motor cover and pull
off wire to power socket.
•
Detach cable from starter motor.
•
Detach oil pressure sensor cable.
•
Detach side stand switch cable.
•
Detach injector cable
•
Detach throttle angle sensor cable.
•

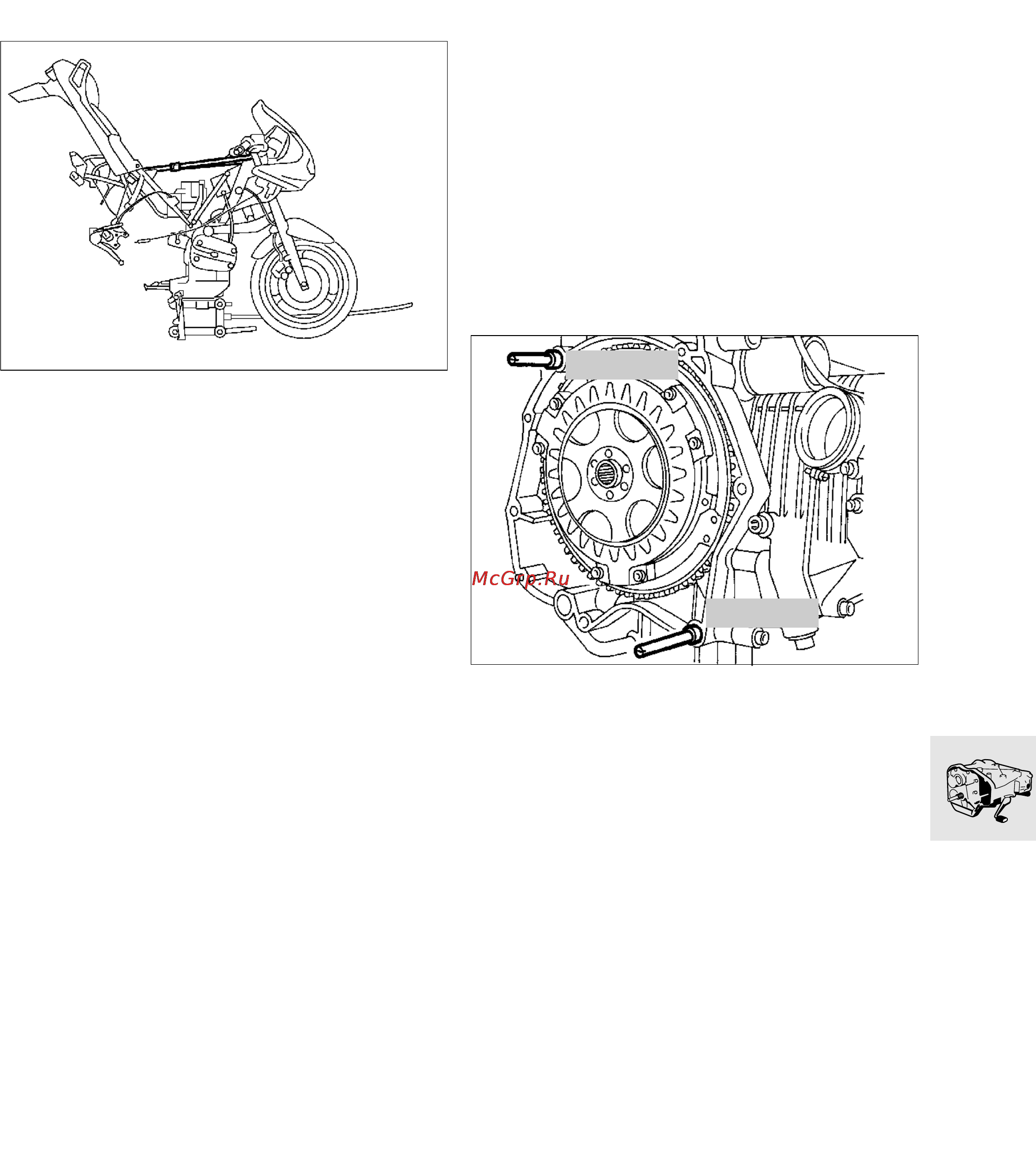

When removing gearbox, pull it out on guide
pins, BMW No. 23 1 820.
RS230311
23 1 820
23 1 820
RS230011
