23.28

•

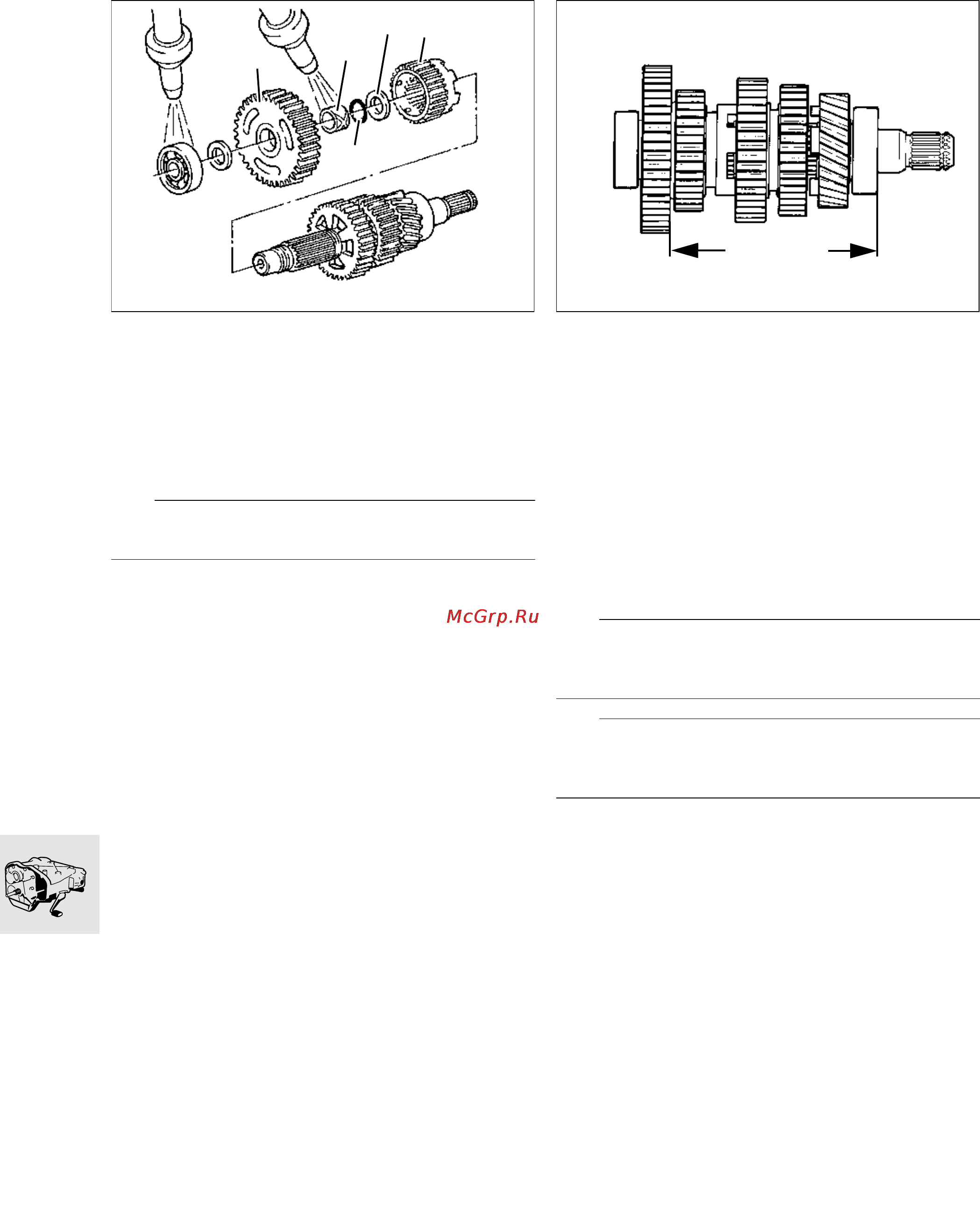

Invert output shaft in vise with spline tracks fac-

ing downwards.

•

Slide spur gear for 4th gear (8) onto output shaft

with dogs facing downwards.

•

Fit spacer (7).

•

[from 1994 model year on] Push O-ring (15)

onto seat.

e Caution:

Use a new O-ring.

•

[1993 model year] Measure distance G and

shim as necessary.

•

[1993 model year] Heat the narrow race (6) to

80 °C and push it onto the output shaft as far as

the spacing washer.

•

[from 1994 model year on] Heat the narrow race

(6) to 80 °C and push it on flush with the step in

the shaft.

•

Slide spur gear for 1st gear (1) onto output shaft

with aperture and shift teeth facing downwards.

•

Fit thrust washer.

•

Press on grooved ball bearing cold, using press,

or heat to 80 °C and position on input shaft.

e Caution:

If necessary, drive further on by striking inner race

only.

e Caution:

Be careful of the sealing washer as you heat the

bearing (Clean Bearing); risk of damage.

RS230190

G=125,8

-0,1

RS230199
