23.37

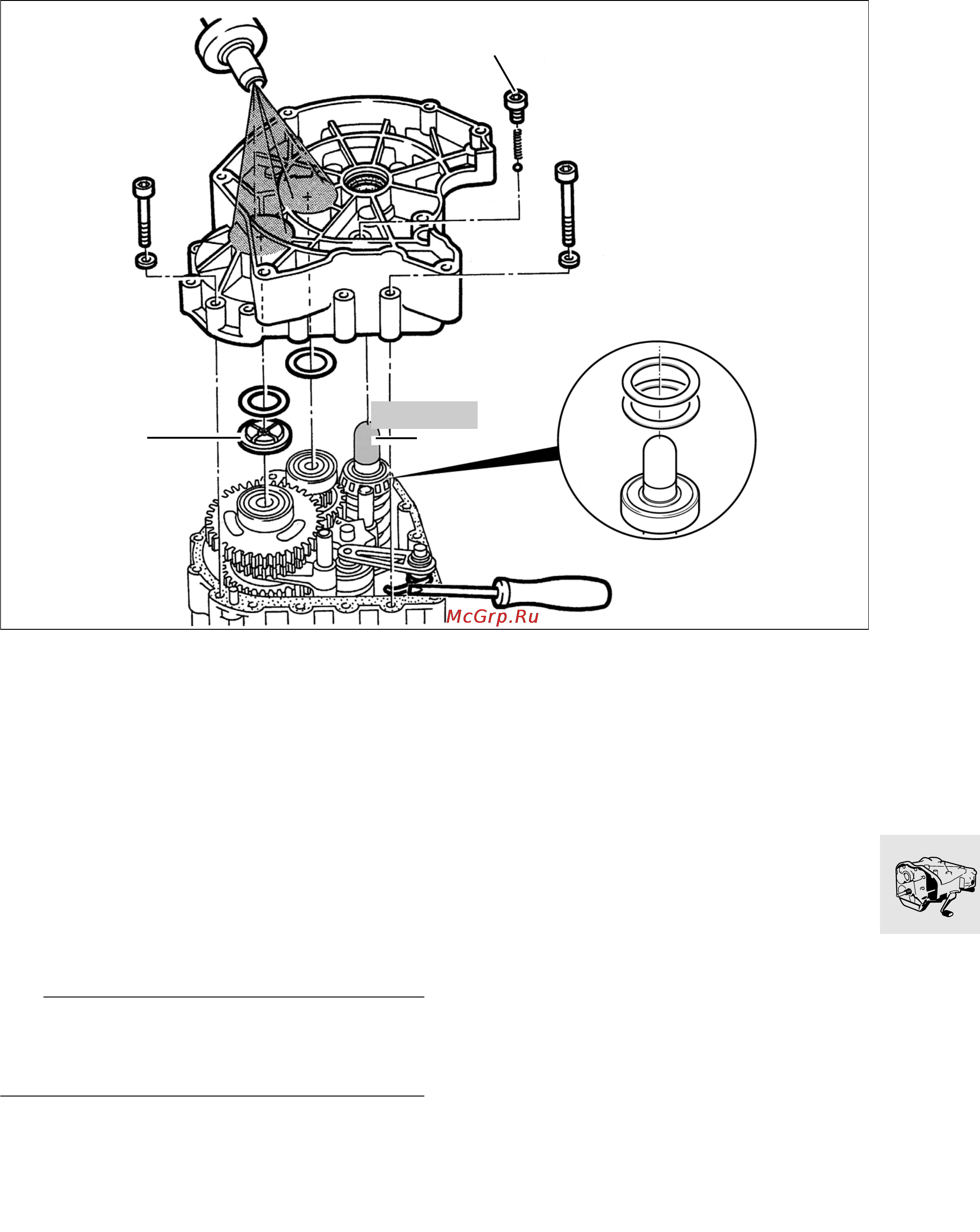

Installing gearbox cover
•
Slightly grease the shims of the calculated thick-
ness for the idler and output shafts (include oil
trap plate (1) in the shim thickness) and place
then flush on the deep-groove ball bearing.
•
Place sliding sleeve (2), BMW No. 23 4 632, on
the input shaft.
•
Apply a thin coat of Loctite 573 to the housing
joint face, which must be clean and free from
grease.
•
Heat the gearbox cover to 100
o
C.
•
Fit gearbox cover/insert selector shaft and selec-
tor drum in bearings.
•
Preload arm of stop lever spring, attach and
completely fit gearbox cover.
e Caution:
Arm of spring at clutch end of gearbox housing must
be under preload and must not be dis-placed to-
wards the output end of housing.
•
Tighten down gearbox cover.
•
Insert idle stop (3) (ball and spring) into gearbox.
•
Insert the neutral detent screw with Loctite 243.
X Tightening torque::
Retaining screws on gearbox cover ............ 10 Nm
Neutral detent screw
(clean thread + Loctite 243).......................... 13 Nm
23 4 632
1
3
v
573
v
243
j
100
Clean Bearing
2
RT230281
