31.7

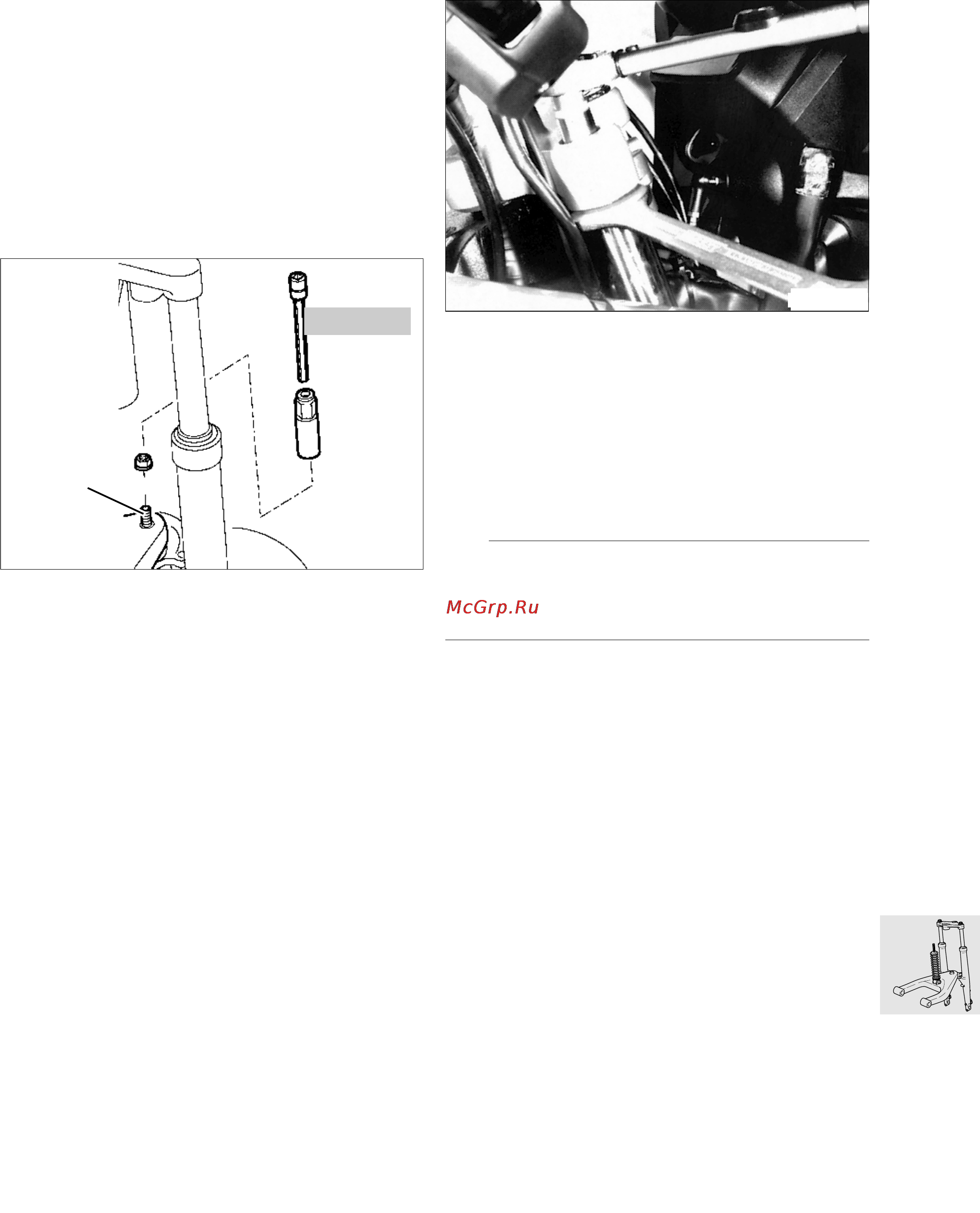

Removing and installing telescopic
fork
Removing and installing telescopic fork
without fork bridge
•
Remove mudguard.
•
Remove front wheel.
•
[ABS] Detach sensor.
•
Detach brake line retainer.
•
[R] Heat steering damper mount at slider tube
bridge to max. 120 °C, and take it of.
•
Heat leading link mount at front to max. 120 °C
and unscrew.
•
[RS] Loosen fixed-tube clamp at upper fork
bridge and pull telescopic fork out downwards.
•
[R/RT] Take off the handlebar.
•
[GS/R/RT] Slacken off the threaded connection
for the fixed tube at the upper fork bridge, hold-
ing the hexagon on the fixed tube to prevent it
from turning; pull telescopic fork out downwards.
•
Install in the reverse order of work.
•
Tighten ball joint at leading arm with socket
wrench insert and internal hexagon,
BMW No. 31 5 600, on leading link.
e Caution:
To prevent grease from escaping and the ingress of
dirt, ensure that sleeve is correctly located on ball
joint.
•
[ABS] Check sensor gap and adjust if necessary.
ABS – Sensor gap:.........................0.50...0.55 mm
................................................ (0.0197...0.0217 in)
X Tightening torque:
Ball joint at leading link:
(clean thread + Loctite 2701)...................... 130 Nm
Mount, fixed tube/fork bridge
[RS] ............................................................ 22 Nm
Threaded connection, fixed tube/fork bridge
(free from oil or grease) ...........................................
[GS/R/RT] ................................................... 45 Nm
Handlebar to fork bridge
[R/RT] ......................................................... 21 Nm
Steering damper at slider tube bridge mount
(clean thread + Loctite 2701)
[R] ............................................................... 20 Nm
Steering damper mount at slider tube bridge
(clean thread + Loctite 2701)
[R] ................................................................. 9 Nm
31 5 600
j
120
w
v
2701
GS310021
GS000410
