31.9

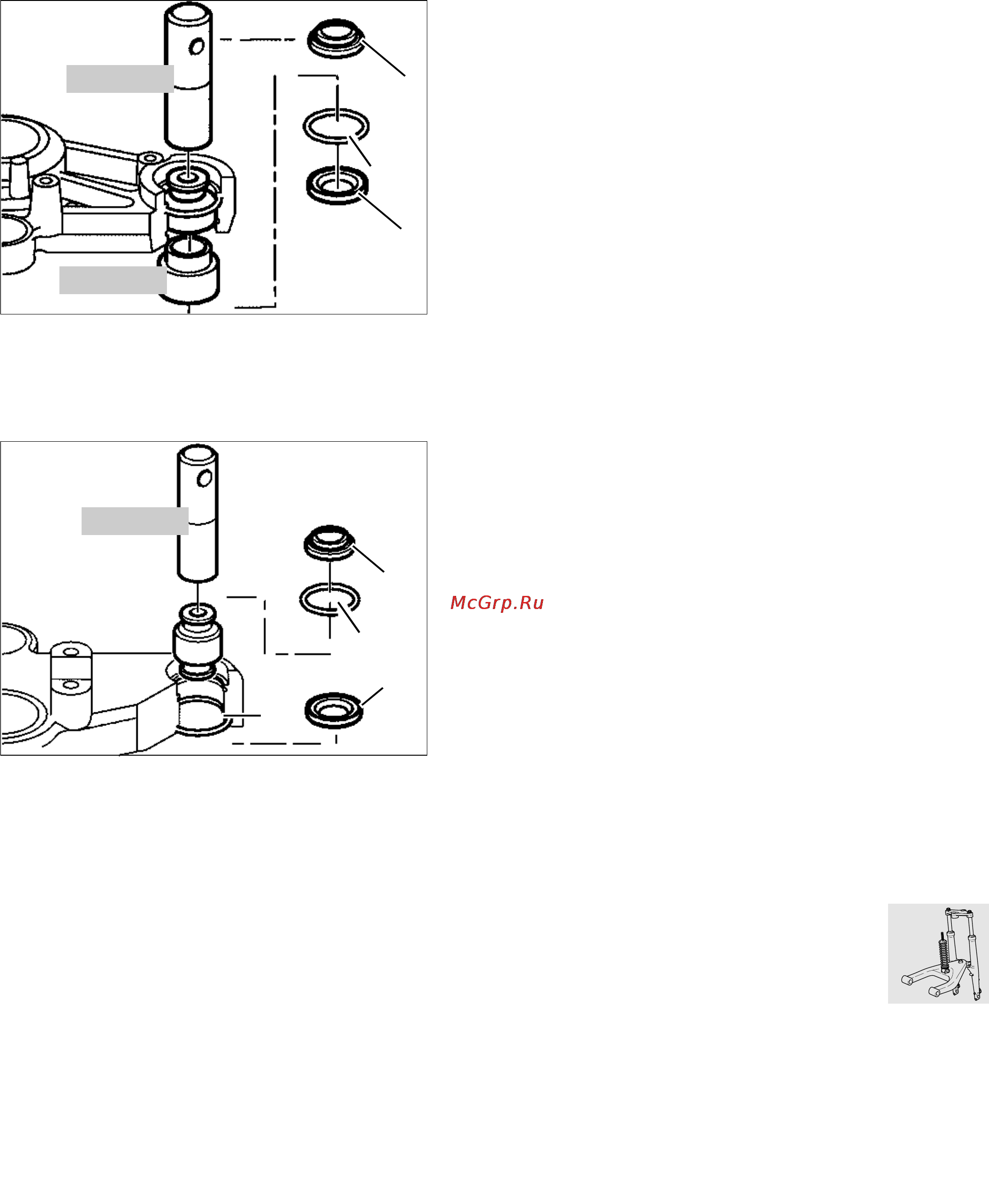

Removing and installing pot-type joints
•
Remove dust covers (1).
•
Remove top snap ring (2).
•
Press out pot-type joint using drift and bushing,
BMW No. 31 5 660.
•
Snap ring (3) is installed.
•
Press in pot-type joint using drift,
BMW No. 31 5 661.
•
Install snap ring (2).
•
Install dust covers (1).
31 5 661
31 5 662
1
1
2
GS310080
31 5 661
1
2
1
3
GS310090
