34.14

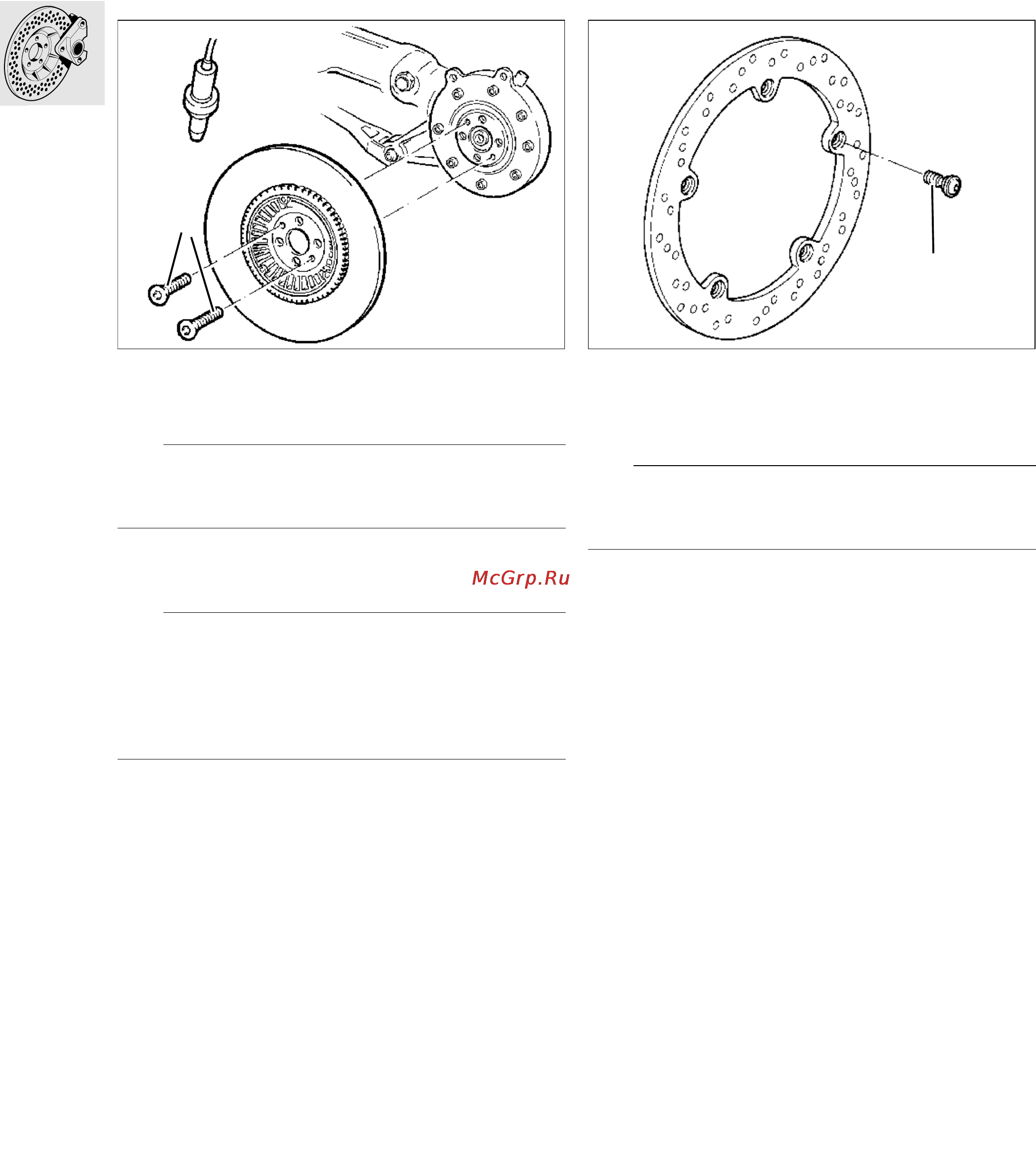

[RS] Removing and installing rear
brake disc (attached to rear wheel
drive)
•
Remove the brake caliper.
•
Remove rear wheel.
•
Heat brake disc retaining screws (1) to 120 °C/
remove.
L Note:
Mark the installed position of the brake disc, so that
vertical runout of the sensor wheel does not change.
•
Install in the reverse order of work.
•
Degrease the brake disc before installing.
e Caution:
[ABS] Check sensor gap and adjust with spacing
plates if necessary.
[ABS] If the brake disc and therefore the sensor
wheel are renewed, the disc’s vertical runout must
be determined/marked.
Sensor gap:.. 0.45...0.55 mm (0.0177...0.02165 in)
X Tightening torque:
Brake disc to rear wheel drive
(clean thread + Loctite 273).......................... 21 Nm
[GS/R] Removing and installing rear
brake disc (attached to rear wheel
hub)
•
Remove the brake caliper.
•
Remove rear wheel.
•
Remove brake disc.
•
Install in the reverse order of work.
•
Degrease the brake disc before installing.
e Caution:
[ABS] Check sensor gap and adjust with spacing
plates if necessary.
Sensor gap:.. 0.45...0.55 mm (0.0177...0.02165 in)
X Tightening torque:
Brake disc to rear wheel drive
(clean thread + Loctite 243).......................... 21 Nm
j
120
v
273
1
RS340160
v
243
GS340161
