36.9
•

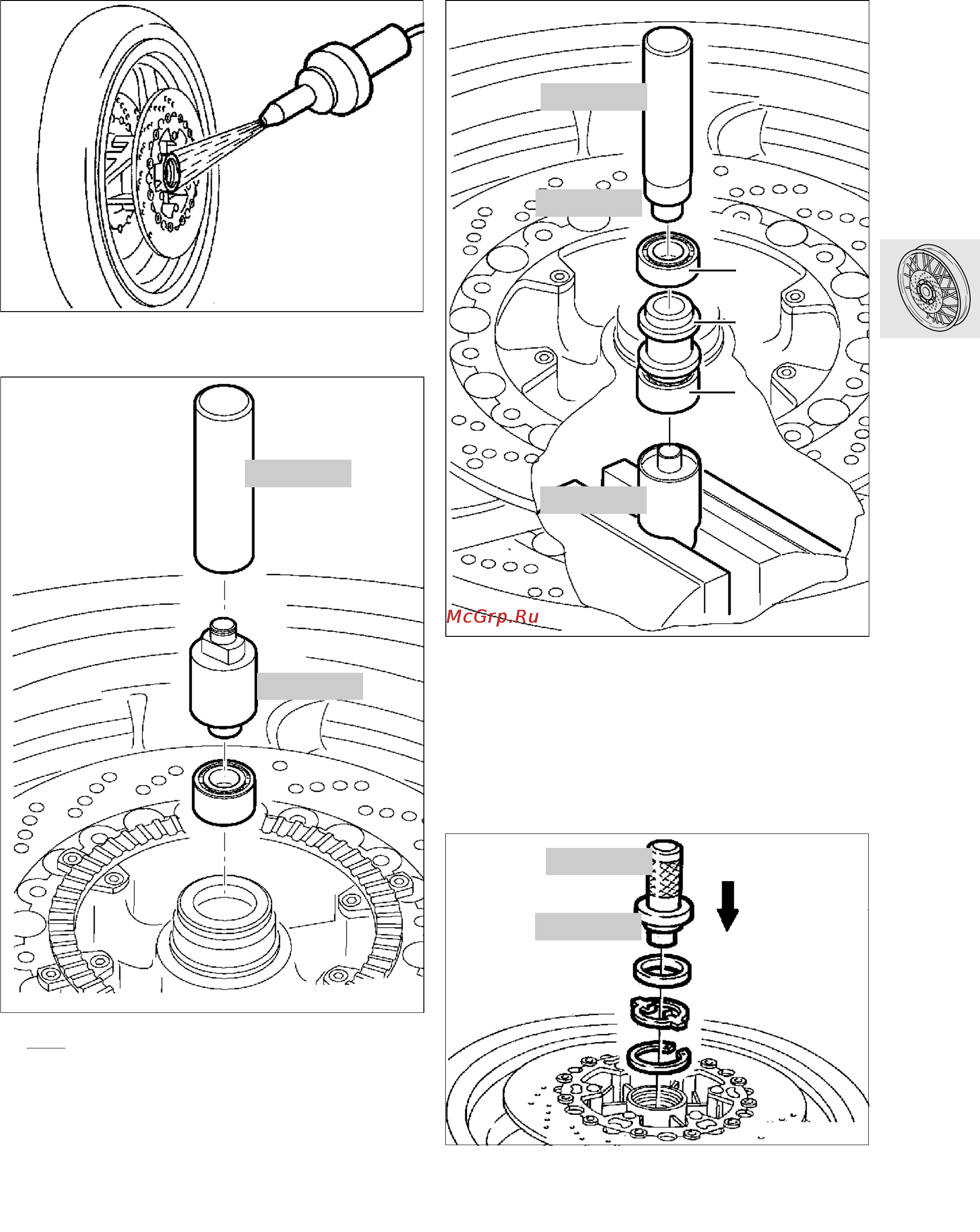

Heat bearing seat.
•
First insert wide bearing using drift,
BMW No. 36 5 511, and handle,
BMW No. 00 5 500.
•
Clamp arbor, BMW No. 36 5 511, in vise and
place wheel on it with wide bearing (2) in contact
with arbor.
•
Install spacer tube (1).
•
Bearing seat temperature 80 °C.
•
Insert narrow bearing (3) with drift,
BMW No. 36 5 512, and handle,
BMW No.005500.
•
Install retaining ring and driver.
•
Drive in shaft sealing ring with drift,
BMW No.365500, and handle,
BMW No.005500.
j
80
RS360025
00 5 500
36 5 511
RS360026
00 5 500
36 5 511
1
2
3
00 5 512
RS360028
00 5 500
36 5 500
RS360027
