00.28
•

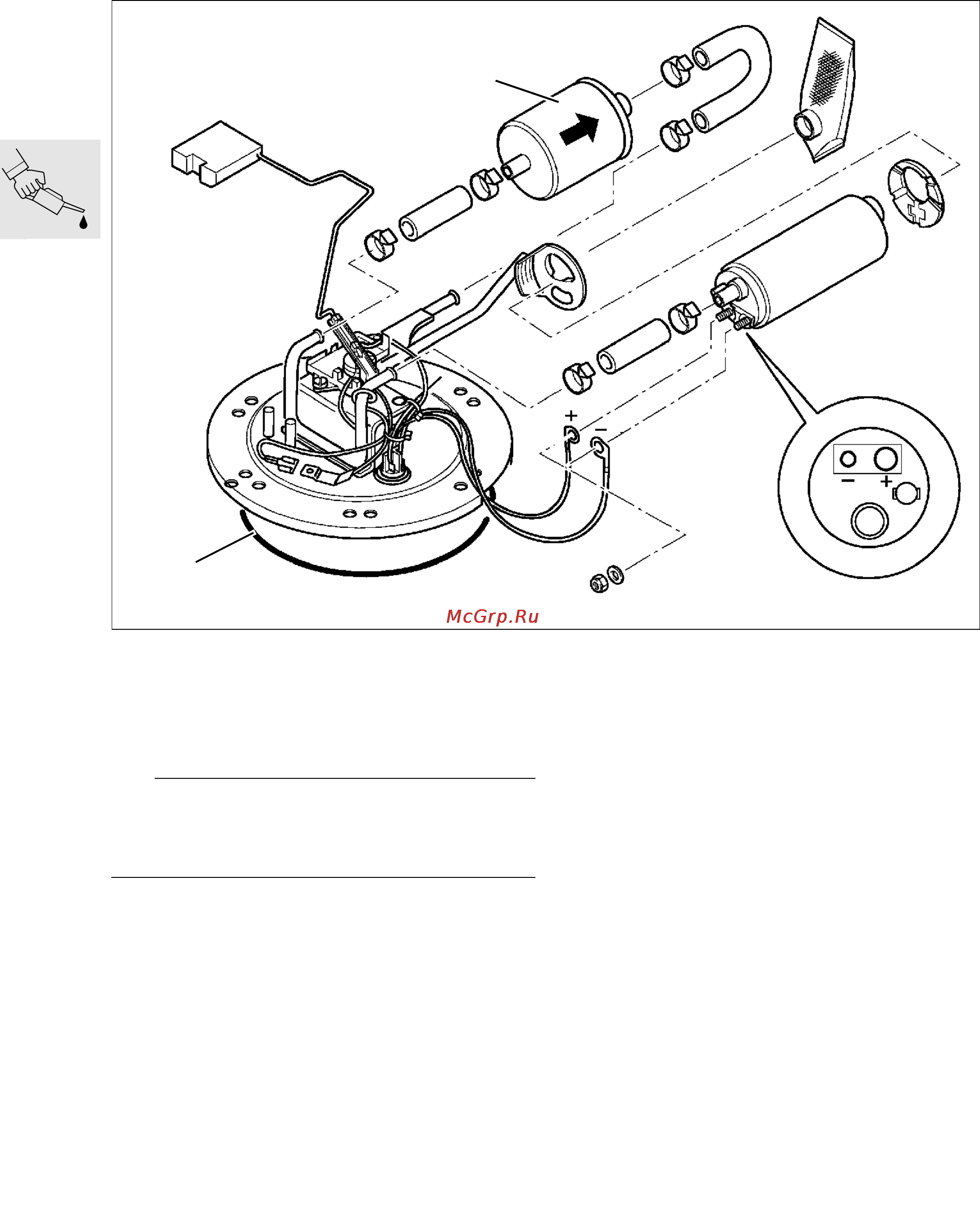

Detach hoses from fuel filter (1)
•
Fit new fuel filter.
•
Installation in reverse order.
•
Secure non-reusable hose clips with pliers,
BMW No. 13 1 500.
e Caution:
Note correct direction of flow through fuel filter. Use
only an O-ring seal (2) in good condition. After
assembly, check fuel pump unit for leaks.
X Tightening torqu
Fuel tank to rear frame ................................. 22 Nm
Fuel pump unit to fuel tank. ........................... 6 Nm
1
2
RS160030
