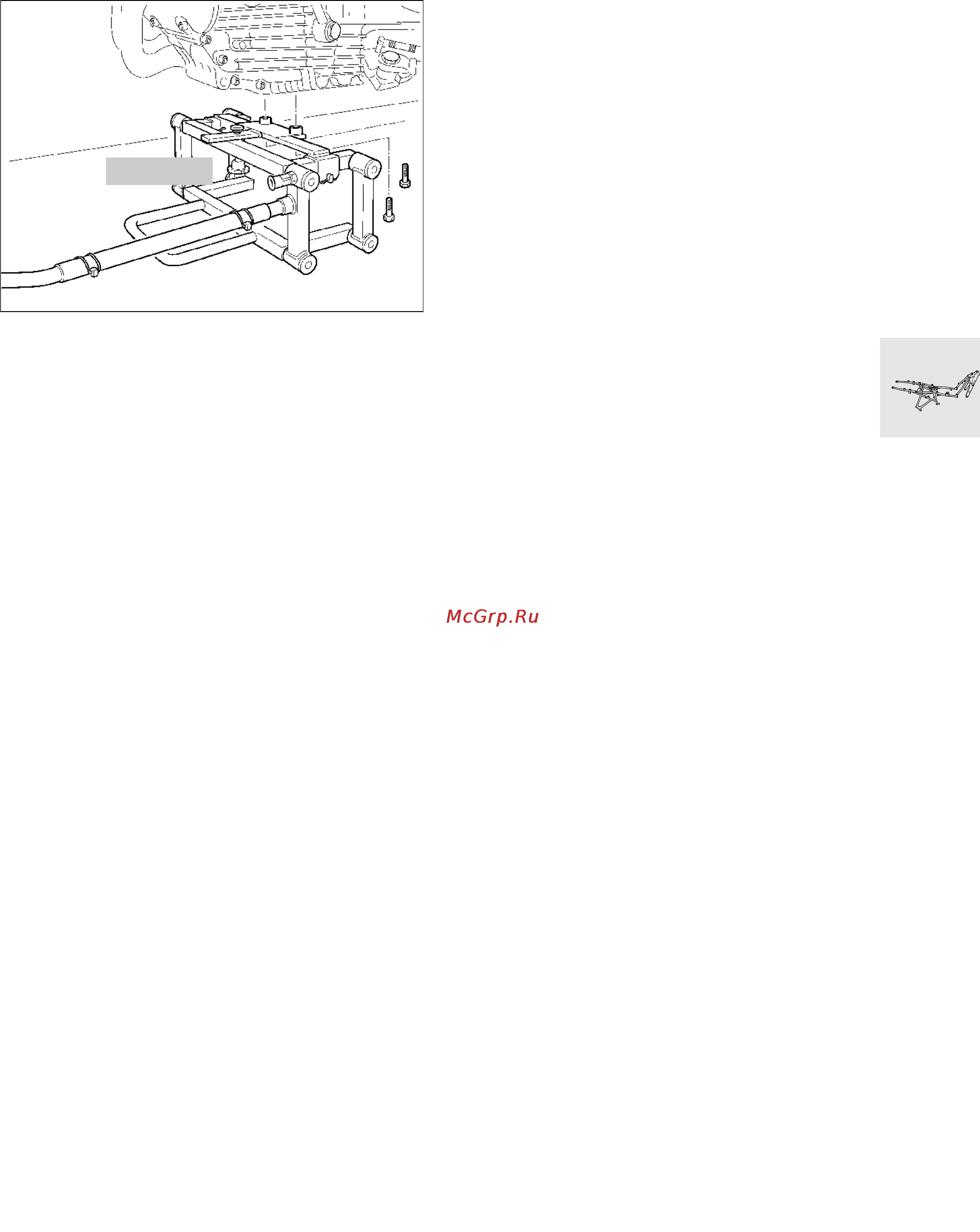

Raise the motorcycle with stand,
BMW No. 00 1 520.
•
Disconnect tension springs.
•
Unfasten left/right retaining screws (1).
•
Take out pivot bushes (2) together with M10
screw.
•
Remove center stand.
•
Disconnect plug from side stand switch.
•
Remove left/right bearing mount (3).
•
Install in the reverse order of work..
Lubricant................... e.g. Staburags NBU 30 PTM
X Tightening torque:
Center stand to carrier plate
(clean thread + Loctite 2701)........................ 21 Nm
Carrier plate to engine block, M 12
(clean thread + Loctite 2701)........................ 72 Nm
Carrier plate at engine block, M 8 countersunk
screw (clean thread + Loctite 2701) ............. 21 Nm
Side stand at bearing mount
(clean thread + Loctite 2701)........................ 42 Nm
00 1 520
RS460170
