11.52

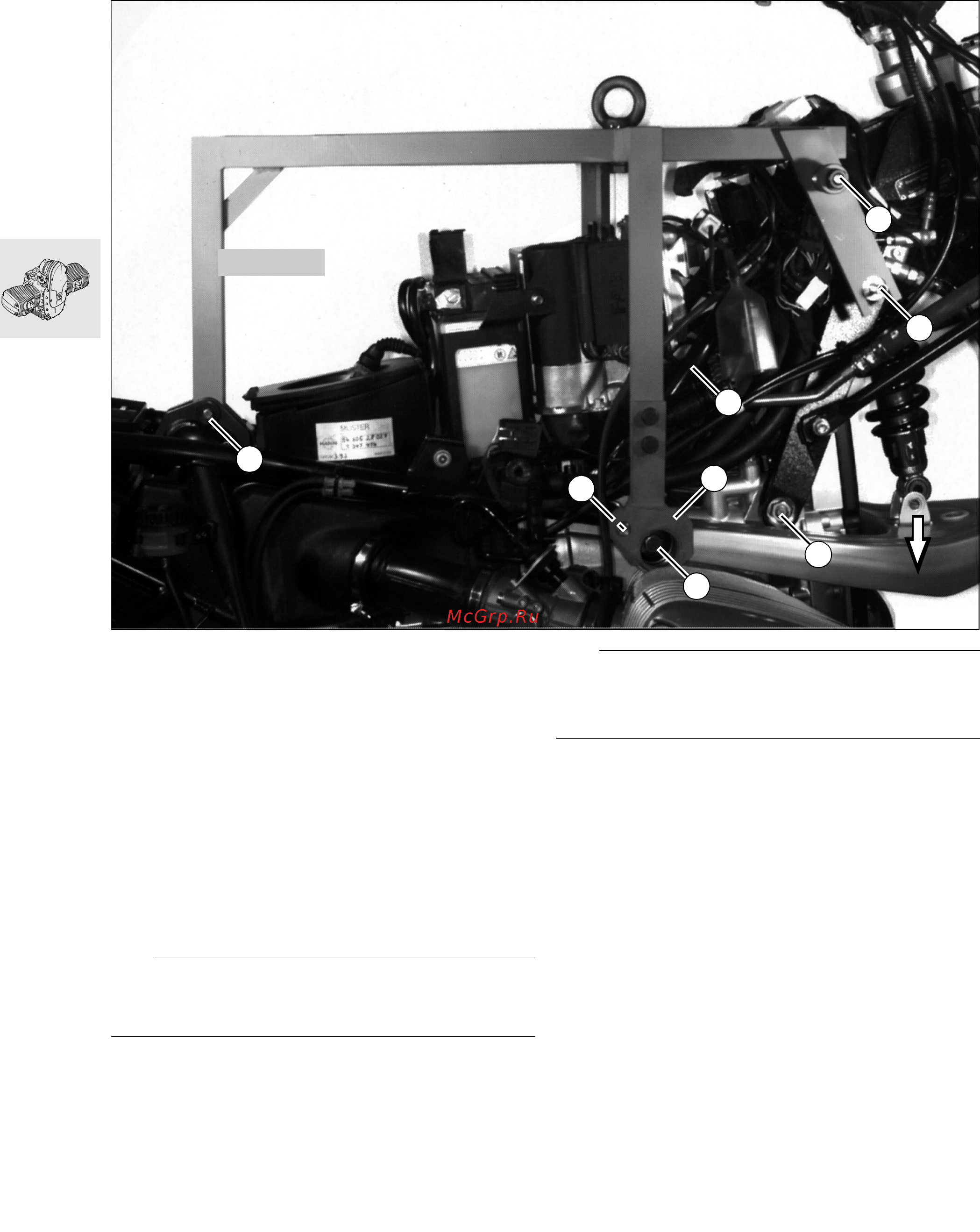

Fitting auxiliary frame
•
Remove the rear wheel.
•
Remove rear suspension strut.
•
Install the rear wheel.
•
Remove upper retaining screw and lower pin in
connecting struts (1) between engine and frame.
•
Attach auxiliary frame, BMW No. 46 5 630, at
rear suspension strut pivot (2).
•
Hook the auxiliary frame to the front tank
mount (3).
•
Center the auxiliary frame over the plane surface
of the tank mount, insert threaded bushes (4) ful-
ly into the connecting struts/frame and
tighten firmly.
e Caution:
Protect tank mount with adhesive tape to prevent
scratching.
•
Unfasten rear frame screw connection (5) at front
left/right.
•
Insert adapter (6) into the leading link/rear frame
mount and secure it to the auxiliary frame.
•
Unfasten lower front suspension strut mount.
•
Press front of leading link down (arrow), or pull
rear section downwards.
•
Unscrew and remove pin (7) securing the frame
to the engine.
e Caution:
Protect tank mount with adhesive tape to prevent
scratching.
•
Secure front suspension strut at bottom.
•
Detach rear left/right of rear frame.
•
Detach left intake pipe at cylinder head and pull
downwards.
•
Withdraw leading link shaft (8) to the left.
•
Raise frame assembly at the front.
4
3
1
8
5
6
7
2
46 5 630
RS111010
