11.51
•

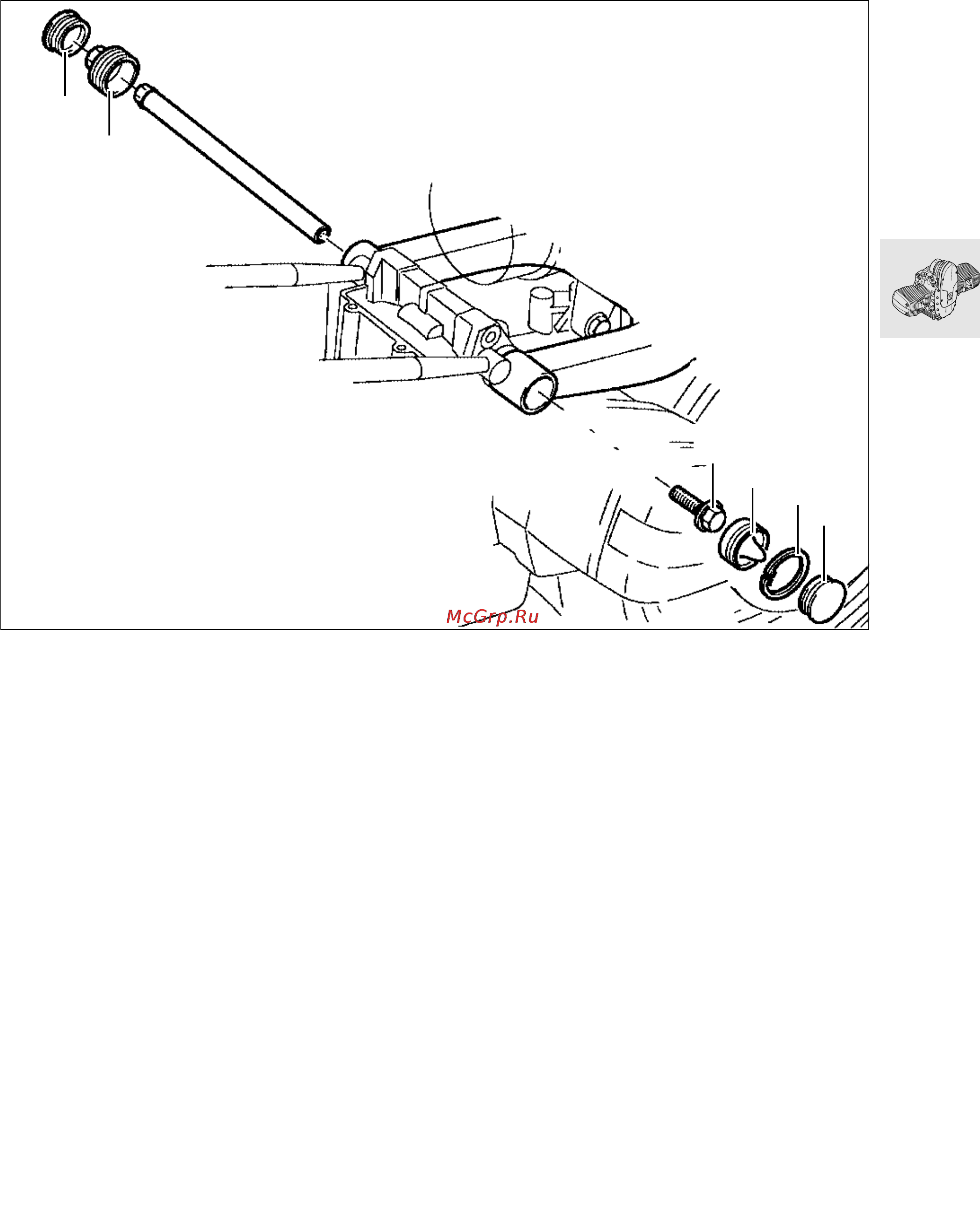

Remove covers (1) on leading link pivots.
•
Unfasten left screw cap (2).
•
Remove right retaining ring (3).
•
Remove retaining cap (4).
•
Take out bolt (5) at right.
1
3
4
5
2
1
RS310011
