11.50
•

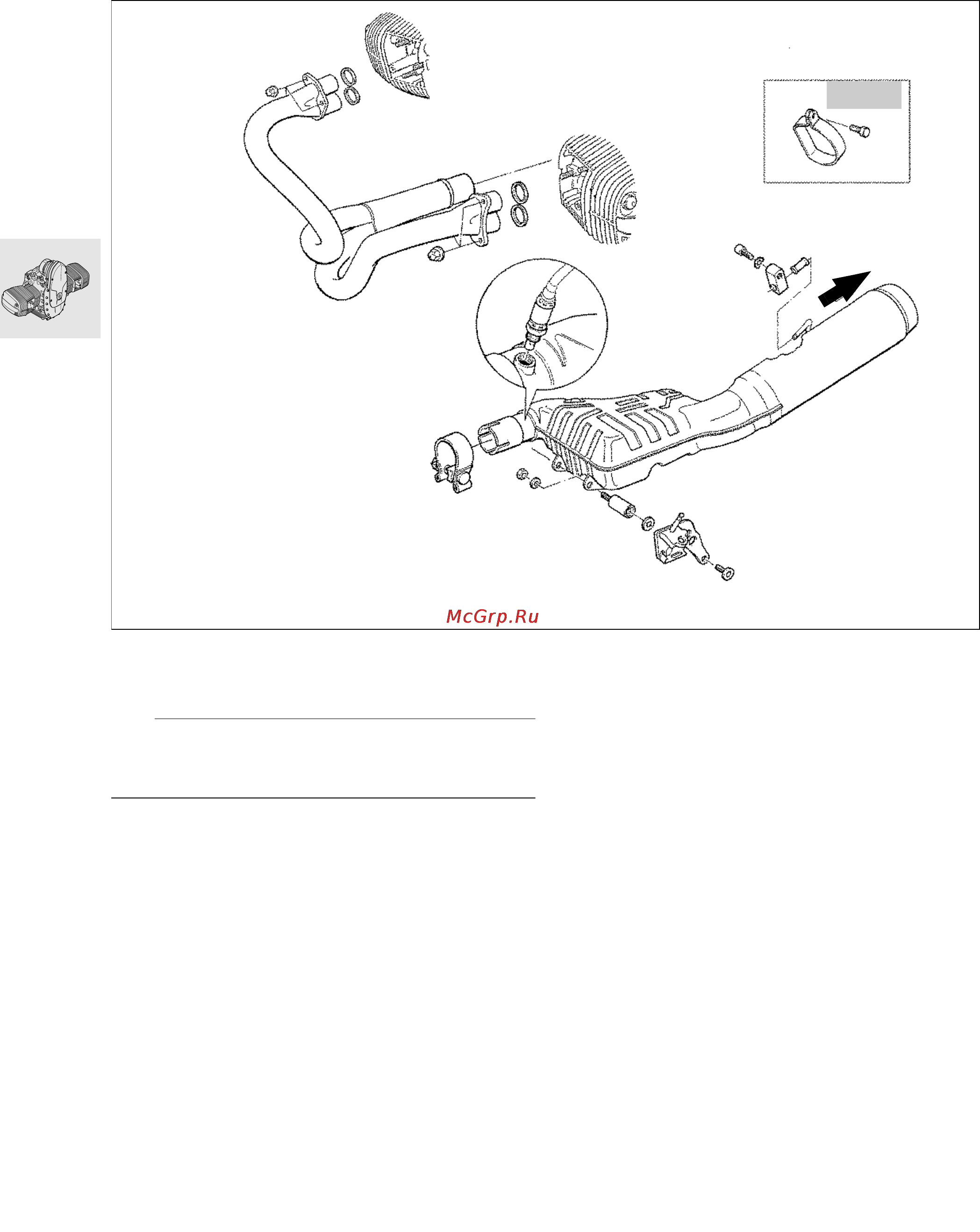

Remove muffler (silencer).
•
Remove manifold pipes.
e Caution:
Detach oxygen sensor cable - do not subject to
tension.
GS/R
RS180040
