11.49
•

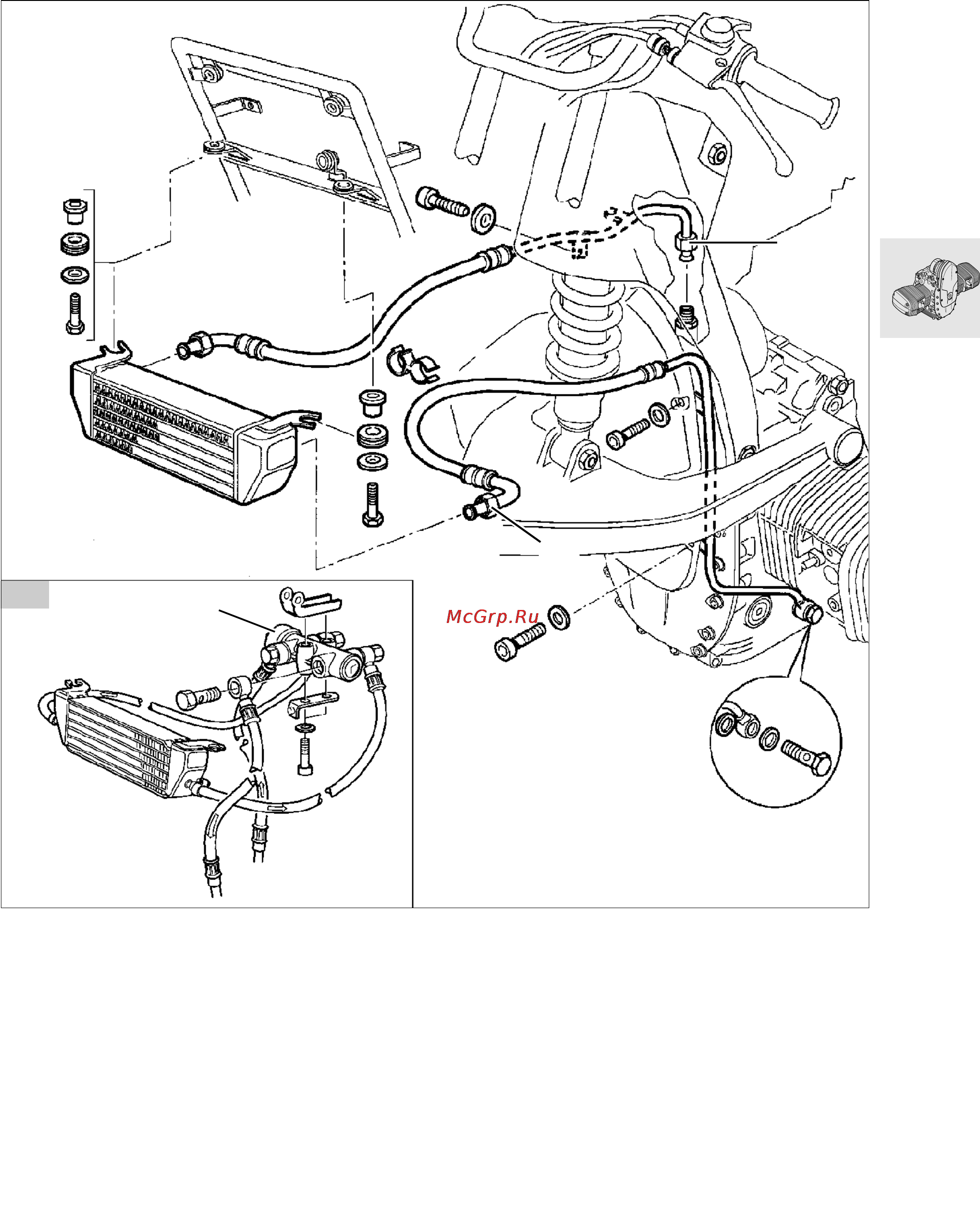

Detach oil cooler pipe (1) at left of oil cooler.
•
[RT] Detach oil cooler line at oil thermostat (3).
•
Detach right oil cooler line from engine (2).
•
[R] Detach oil cooler holder and remove together
with oil cooler.
•
Unscrew hose clips/throttle stub pipe and insert
stub pipe into air cleaner box.
•
Remove rear brake caliper/tie up to rear frame
with cable strap.
•
[ABS]/[GS/R/RT] Detach ABS sensor.
•
Disconnect clutch cable.
RT
2
1
3
RS110561
