11.63
Checking valves for wear
•
Clean combustion residue from valves.
•
Check valve dimensions.
a See Technical Data.

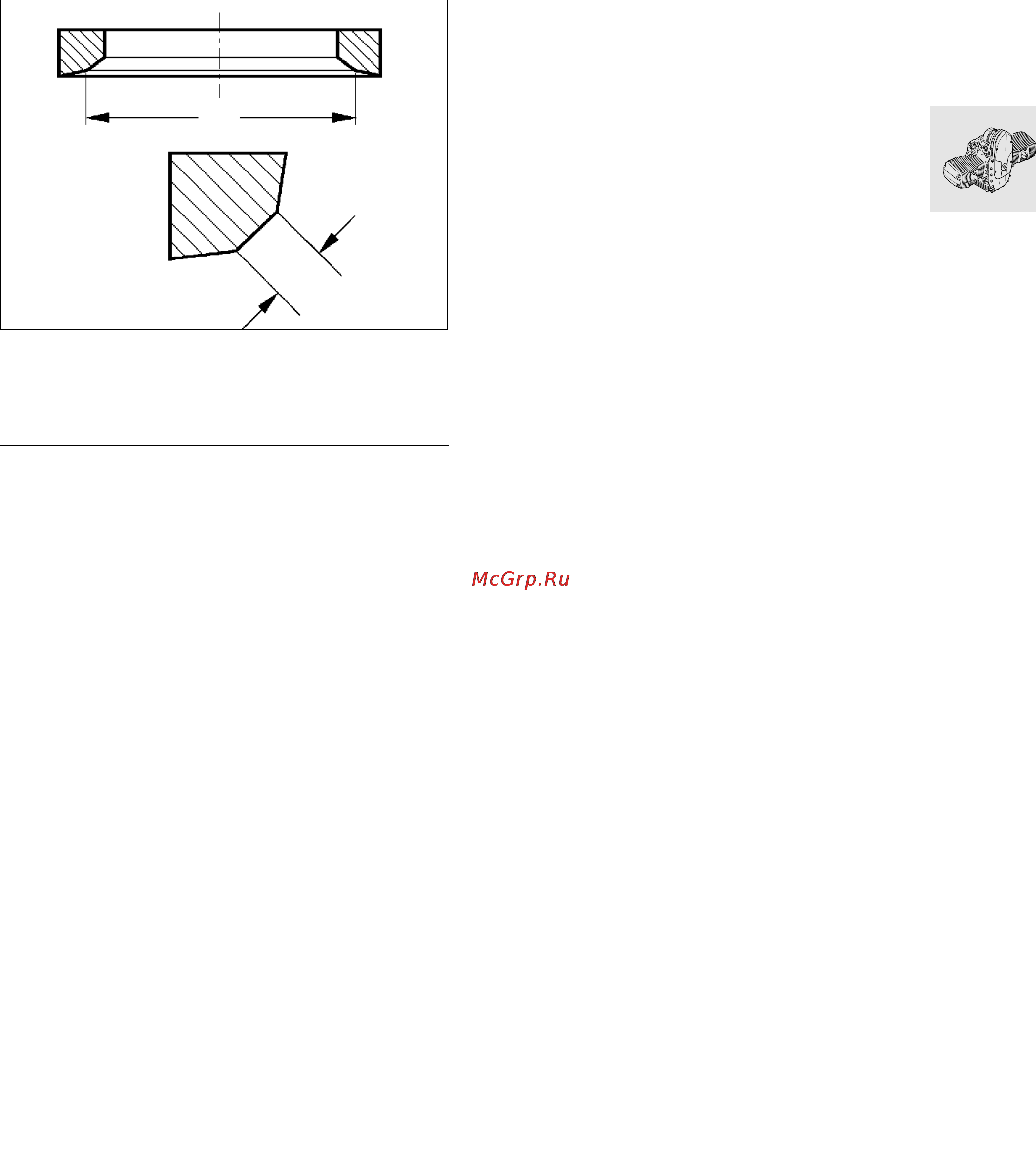

Remachining valve seat
e Caution:
Width (B) and diameter (D) must always be
maintained when remachining the valve seat.
a See Technical Data.
Checking and repairing cylinder head
•
Remove combustion residues from combusion
chamber.
•
Check sealing face for damage/distortion, and
skim flat if necessary.
Skimming sealing face:
...............max. 0.2 mm (0.00787 in) metal re-moval
Checking valve guide for wear
•
Check valve guide bore.
a See Technical Data.
B
D
RS110890
