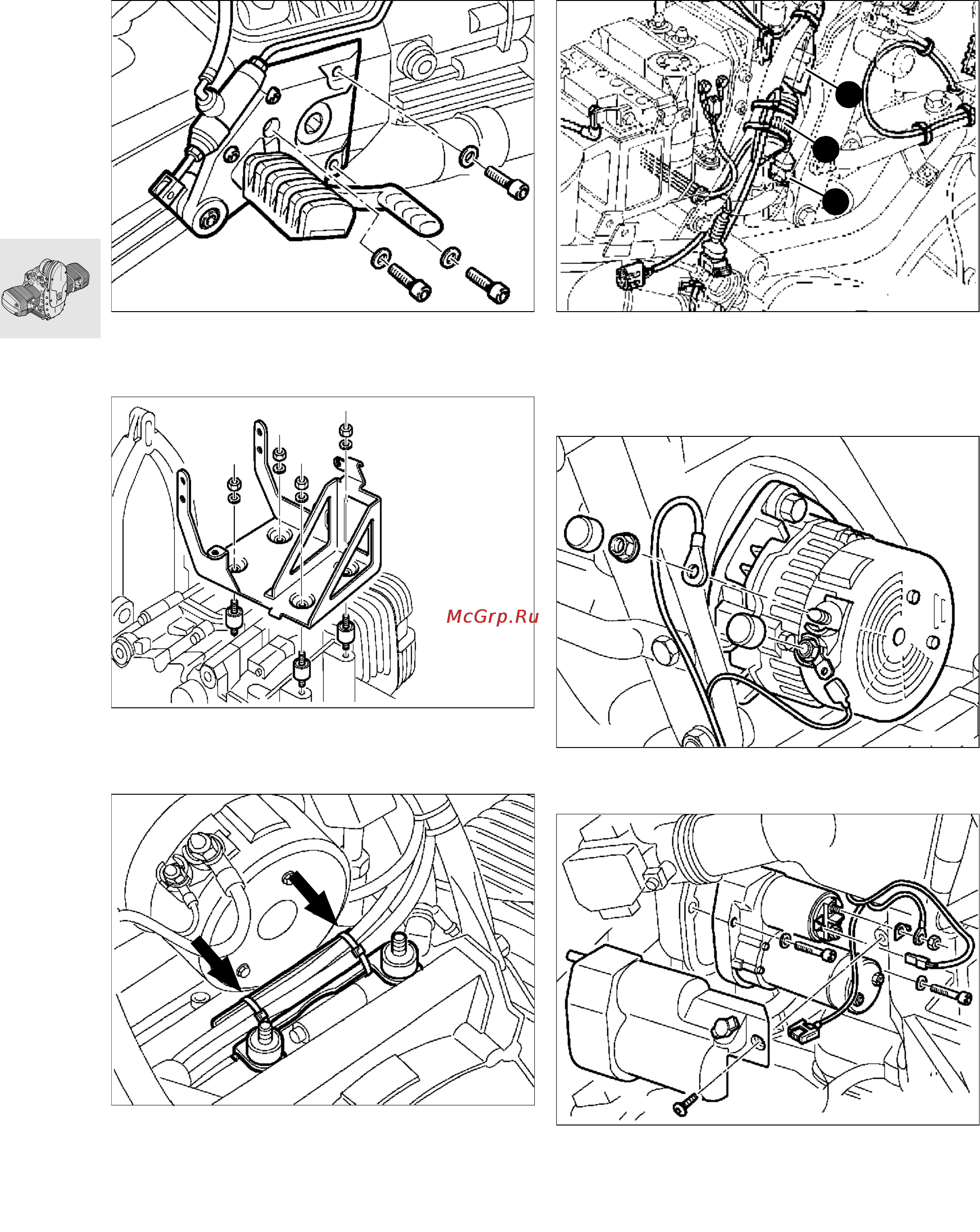

[RT] Detach brake master cylinder.
•
Unfasten right footrest plate
•
Detach wire cable junction block.
•
Remove battery holder
•
Remove cable strap from cable guide under bat-
tery holder.
•
Separate connector/Hall-effect transmitter wire
(1).
•
Separate connector/oxygen sensor (2).
•
Pull off plug/NTC-oil temperature (3).
•
Detach leads from alternator.
•
[RS/GS/RT] Detach starter-motor cover/pull off
socket cable.
•
Detach leads on starter motor/remove starter
motor.
RS460010
RS610010
RS610020
1
2
3
RS110540
RS110510
RS120141
