ioLogik E2200 Series Using the Web Console
5-3
Overview

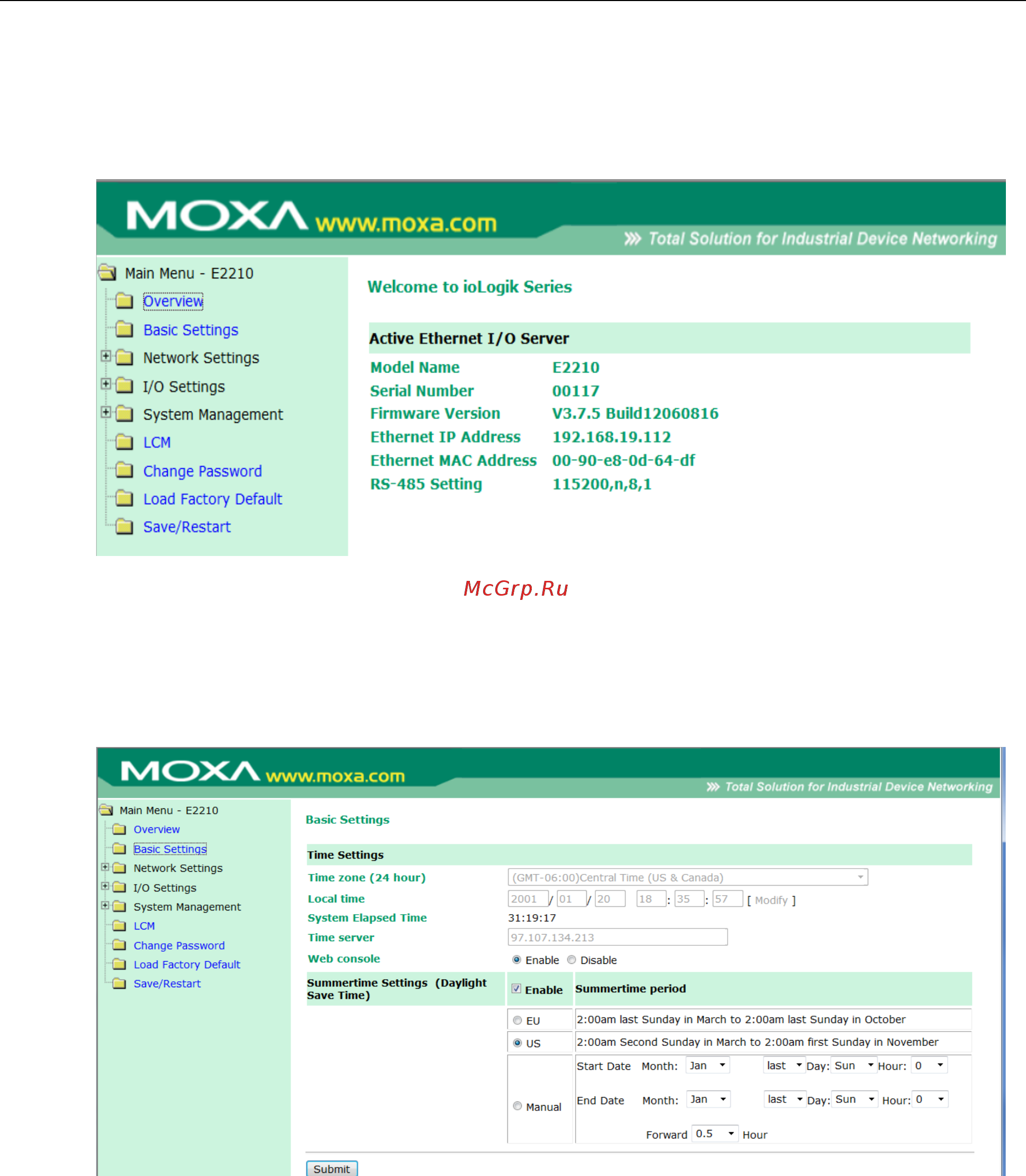

The Overview page contains basic information about the ioLogik, including the model name, serial number,
firmware version, MAC address, and current IP address.
Basic Settings
On the Basic Settings page, you can set the ioLogik’s system time or provide the IP address of a time server
for time synchronization.
