ioLogik E2200 Series Click&Go
4-6

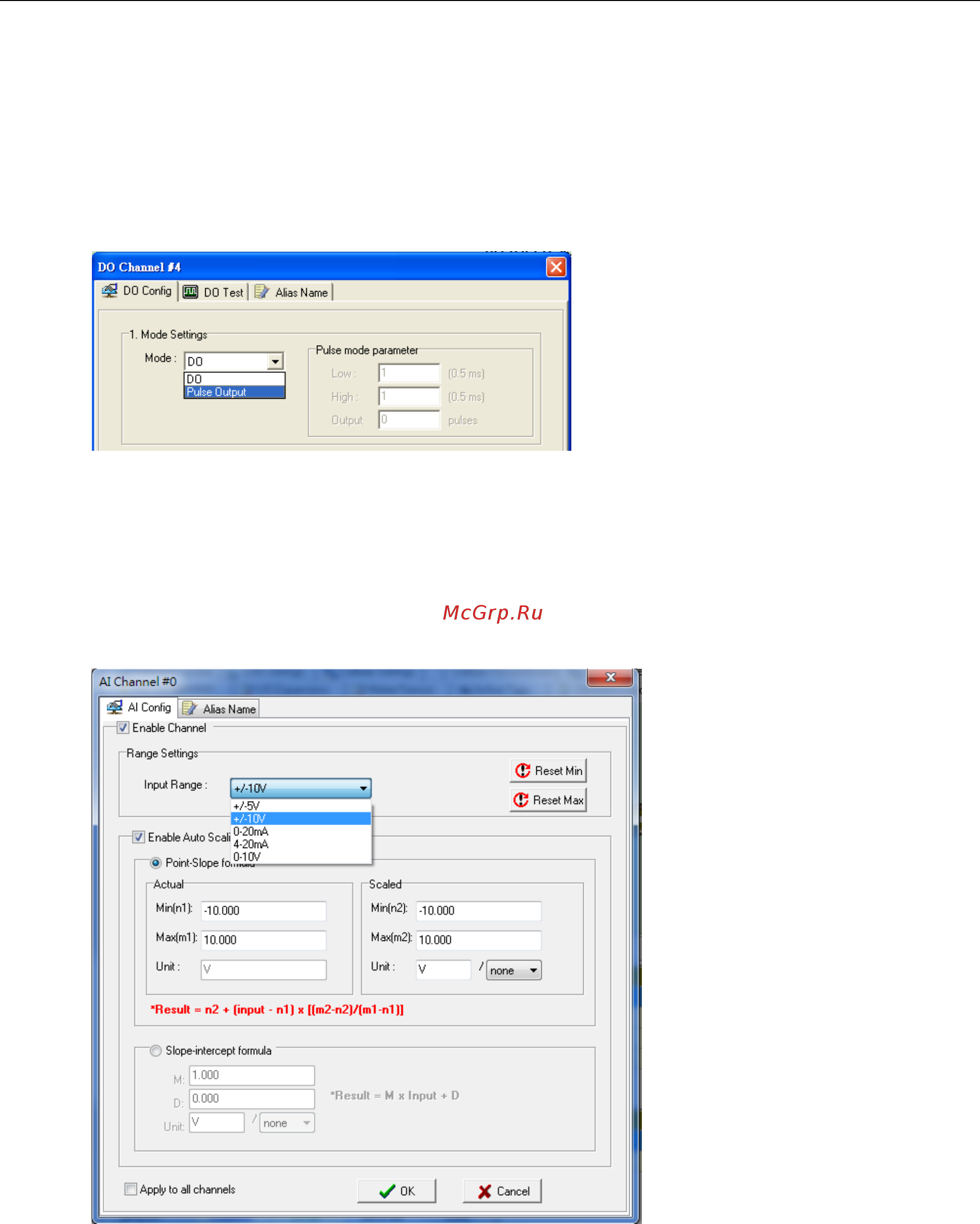

Digital Output Mode Selection
A DO channel can be set to DO or Pulse Output mode. The Relay Output behavior is same as DO.
When logged in as an administrator, double click on a channel on the I/O Configuration panel to configure
that channel’s settings. A window will open with configuration options for that channel. Each DO channel will be
configured to act as either a DO or Pulse Output channel, according to the Mode Settings. To switch between
DO and Pulse Output channel operation, select the desired mode under Mode Settings.
Analog Input Mode Selection
Analog input channels can use either voltage or current to transmit signals.
When logged in as administrator, double click on a channel on the I/O Configuration panel to configure that
channel’s settings. A window will open with configuration options for that channel. Each AI channel will be
configured to measure either voltage or current according to the Range Settings.
Alias Name Configuration
Alias Name helps users configure the alias of a DI or DO channels and define the logic level (0 or 1) for the
ON/OFF status. The Alias can be monitored by the ioAdmin utility, or queried by using a user-defined program
based on the Moxa MXIO library or standard Modbus/TCP protocols.
For Click&Go programming, the Alias Name will display the user-defined name when the specified channel is
selected. For example, although the fist DI channel is represented by DI-0 in Click&Go, you can change the
Alias Name to Door_0 for easier recognition when programming.
