ioLogik E2200 Series Using ioAdmin
3-34
Heartbeat Interval
Tags are event-driven and updated only when the status of an I/O channel changes, so when the status
remains unchanged, they will not be updated to Active OPC Server. The Heartbeat Interval can be used to
determine the connection status between the ioLogik and Active OPC Server, and to ensure that the ioLogik is

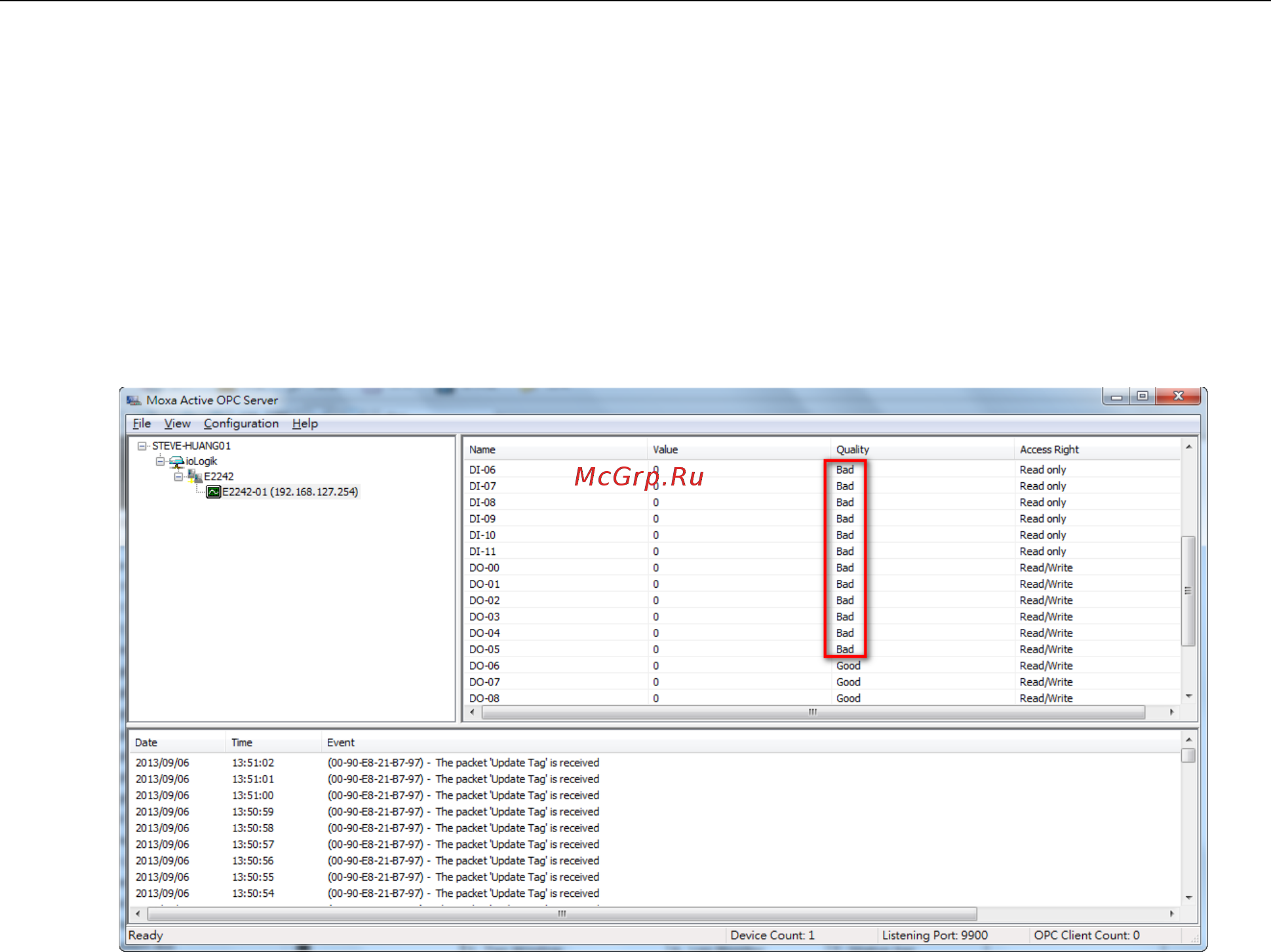

connected and live. If the heartbeat interval is set and the network between the ioLogik and Active OPC Server
is down, Active OPC Server will detect the stopped heartbeat and the Quality column will show BAD to indicate
the loss of the connection.
The ioLogik uses a heartbeat signal to monitor the connection quality between Active OPC server and the device.
For the ioLogik series, we suggest using a value greater than 60 seconds.
Read/Write Privilege
An input channel can only be read while an output channel is shown as read/write acceptable in Active OPC
Server. Note that a channel is read only if an output channel was used in the Click&Go logic tag of that channel.
