ioLogik E2200 Series Active OPC Server
6-4
Features of Active OPC Server

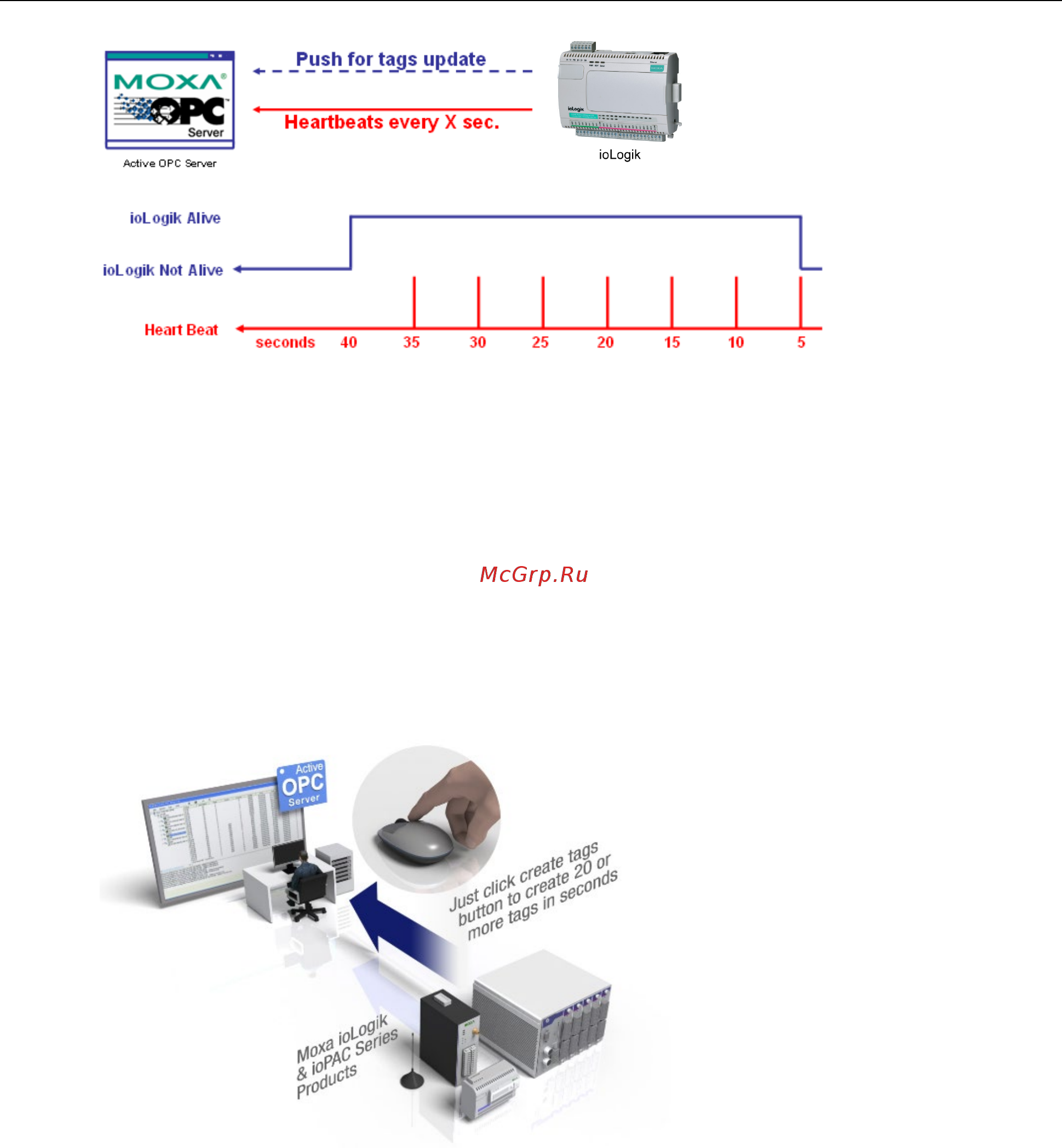

One Click to Create Active Tags
Moxa’s remote I/O devices and Active OPC Servers support automatic tag generation, which eliminates the
headache of specifying individual target IP addresses, I/O channels, and data formats, while even eliminating
any need for editing and importing configuration files. Working from either of Moxa’s ioAdmin or ioSearch
utilities, users only need to select specific I/O channels, set the update criteria, and then click a single button
for their active tags to be automatically generated and configured.
