ioLogik E2200 Series Using the Web Console
5-4

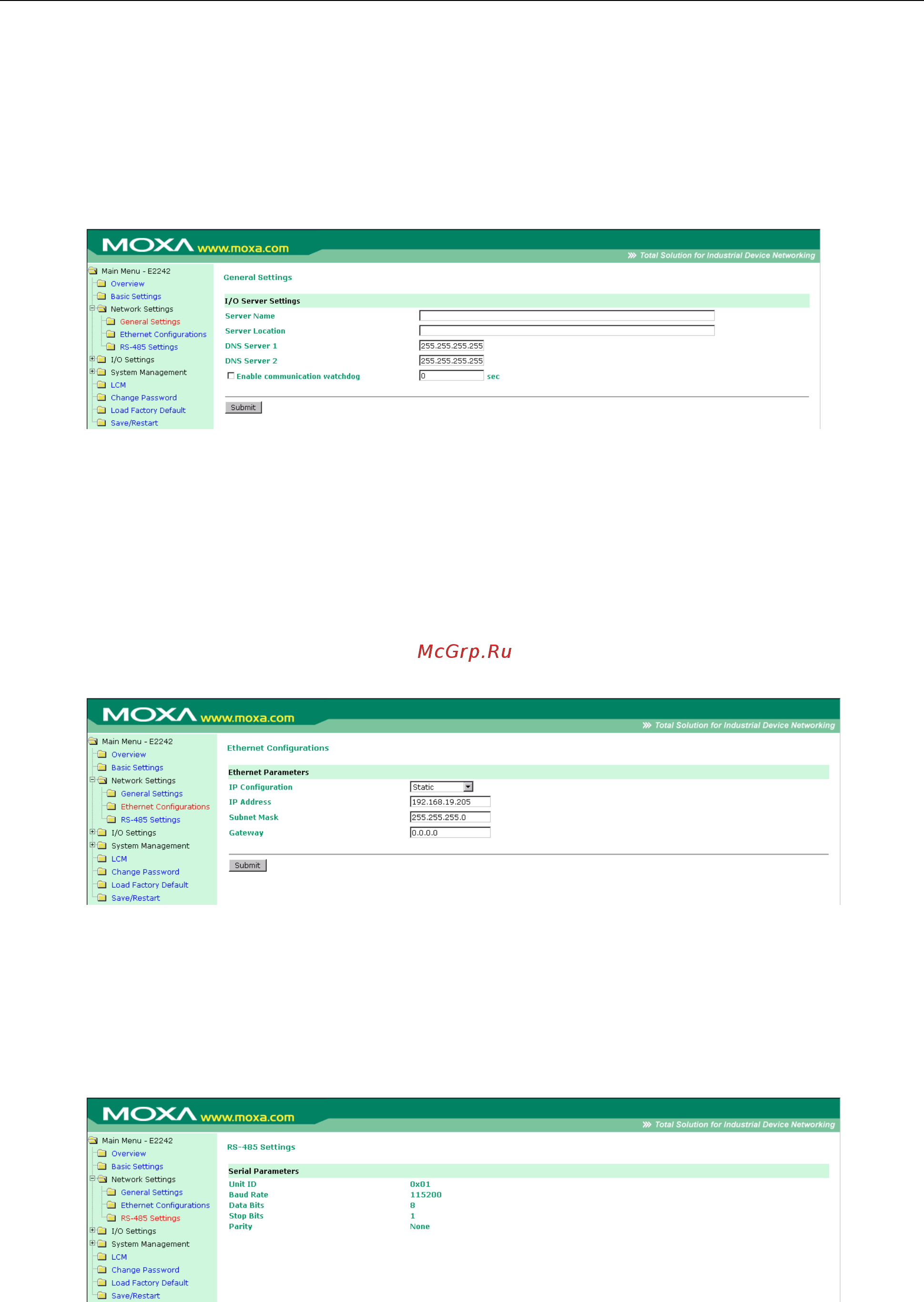

Network Settings
General Settings
On the General Settings page, you can assign a server name and location to assist you in differentiating
between different I/O servers, and enable the Host Communication Watchdog and define the timeout value.
When enabled, the communication watchdog monitors the network connection. If the connection is lost for
the specified number of seconds, the watchdog will activate the Safe Status settings for each DO channel and
Event Counter channel. By default, the watchdog is disabled. To enable the Watchdog, select Enable
communication watchdog and set the timeout value.
Ethernet Configurations
On the Ethernet Configurations page, you can set up a static or dynamic IP address for the ioLogik to
configure the subnet mask and gateway address.
RS-485 Settings
On the RS-485 Settings page, you can view the serial communication parameters, but no configuration
changes are allowed. The baudrate can only be configured using the physical dial on the back of the unit. This
is a reserved function.
