ioLogik E2200 Series Using ioAdmin

3-14

Messages can be displayed in ASCII or in HEX. To display messages in HEX, make sure that “Toggle HEX” is

checked.

Sync Rate Status

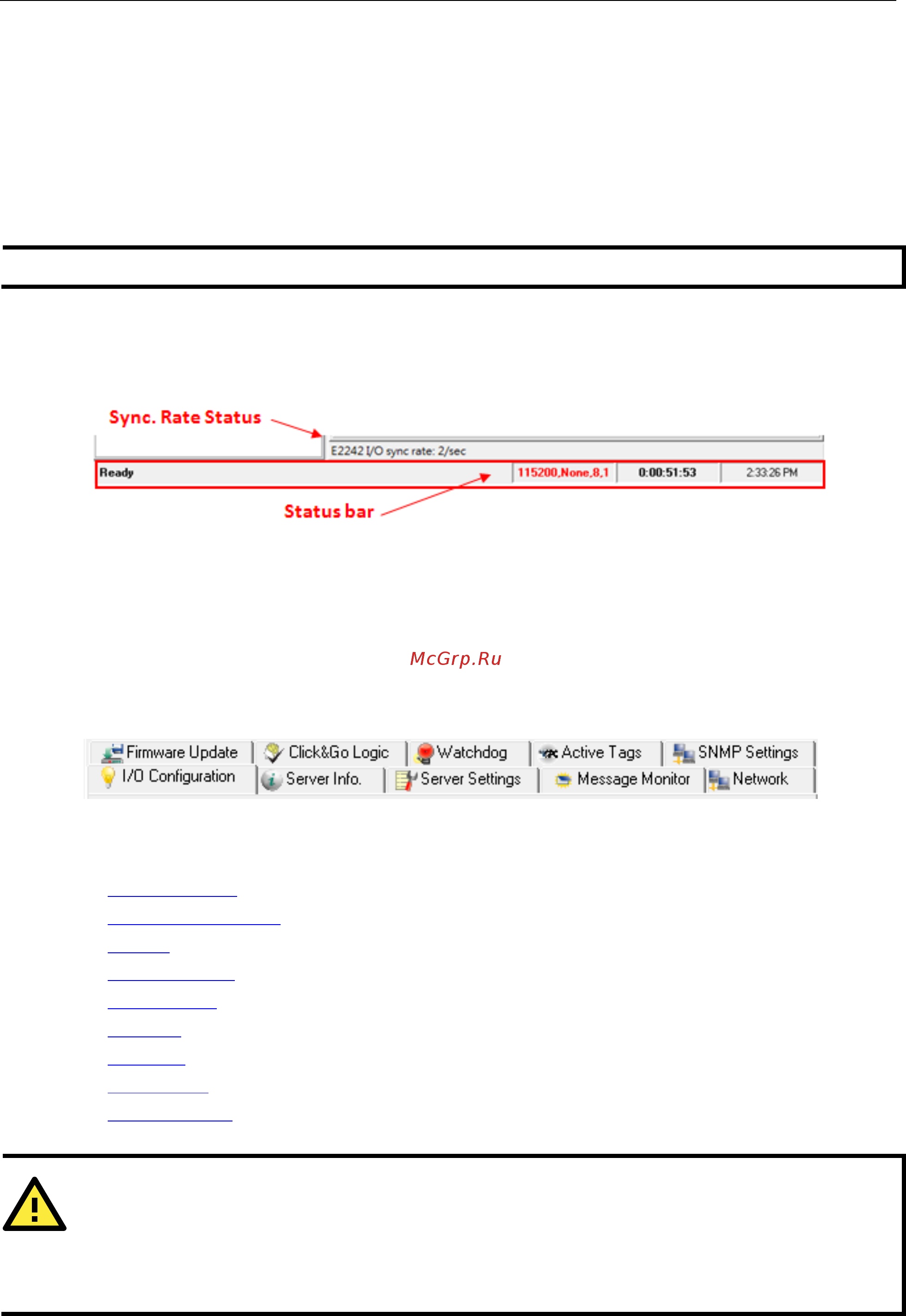

The current sync rate is displayed on the bar at the bottom of the window. The number shows how often the

ioLogik is polled for device status from the ioAdmin utility. The rate can be adjusted by clicking Menu Bar 

System  I/O Status Refresh Rate

NOTE

The

higher sync rates result in higher loads on the network.

Status Bar

The status bar shows ioAdmin status information, such as program ready, searching ioLogik I/O, time, etc.

ioAdmin Administrator Functions

For full access to all configuration options, log in as an administrator in the Server Settings tab. This is required

whenever you start up ioAdmin or boot up/restart the ioLogik. When you install the ioLogik for the first time,

the password will be blank and you can simply click Login. Additional functions will available after logging in,

including the following new tabs:

When making configuration changes, you will need to click Update or Apply to save the changes. Some

changes will require that the unit be restarted in order to take effect.

1. I/O Configuration

2. Server Setting (Admin)

3. Network

4. Firmware Update

5. Click&Go Logic

6. Watchdog

7. Active Tag

8. SNMP Setting

9. Message Monitor

ATTENTION

You MUST log in to access administrator functions, including Network, Communication Watchdog Timer, and

Firmware Update tabs. If you forget the password, hold down the reset button to clear the password and load

fac

tory defaults.

This will result in the loss of all configuration settings and your Click&Go logic rules

that have already been configured.
