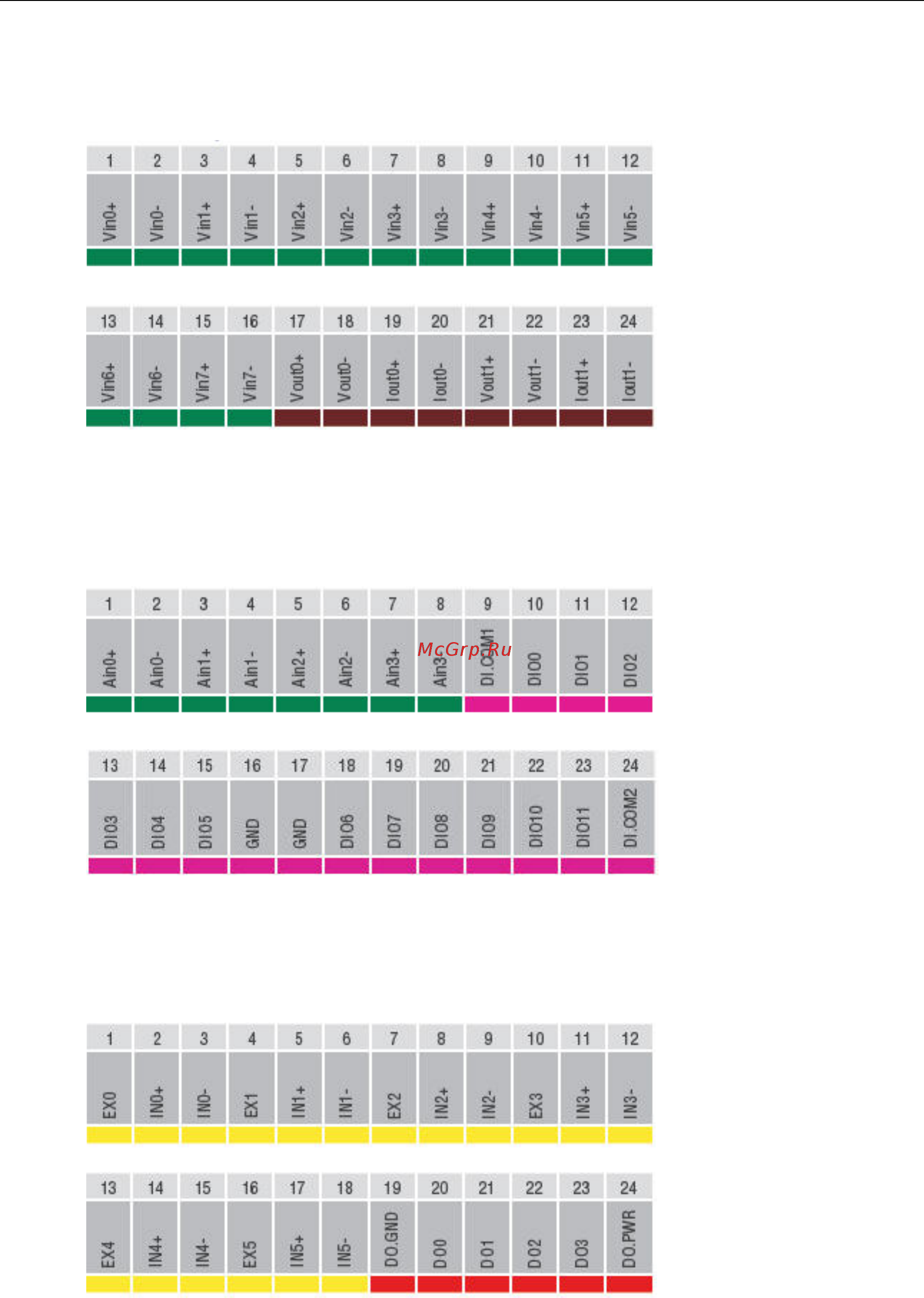

ioLogik E2200 Series Input and Output Terminal
E-3
ioLogik E2240
I/O (left to right)
ioLogik E2242
I/O (left to right)
ioLogik E2260
I/O (left to right)
