ioLogik E2200 Series Click&Go

4-13

A1 A2 A3

Result of

AND Logic

A1 A2 A3

Result of

OR Logic

0 0 0 0 0 0 0 0

0 0 1 0 0 0 1 1

0 1 0 0 0 1 0 1

0 1 1 0 0 1 1 1

1 0 0 1 1 0 0 1

1 0 1 1 1 0 1 1

1 1 0 1 0 0 0 1

1 1 1 1 1 1 1 1

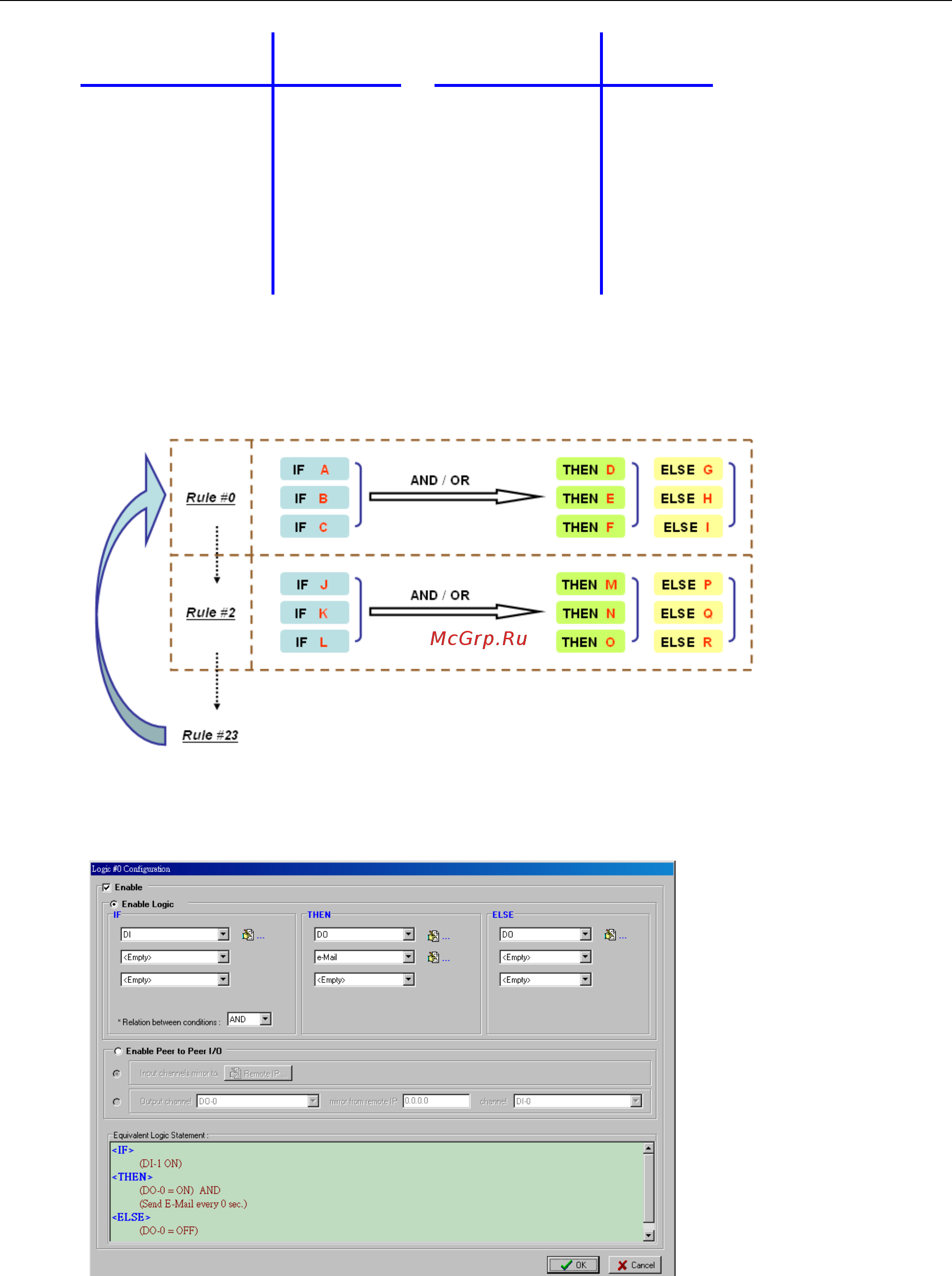

The 24 rules are defined individually and are executed one by one in a loop. The 2

rule can only be processed

after running the 1

rule, and the entire rule-set will start running from the beginning after the last rule is

processed.

You will see a list of the rules in the current rule-set on the main screen. Double Click on a rule to open that

rule’s configuration window, as shown in the following figure, or double click on an empty rule to start a new

rule.

Under Relation between conditions, select AND to specify that all conditions must be satisfied for the

actions to take place; select OR to specify that any one of the conditions can be satisfied for the actions to take

place. The Equivalent Logic Statement at the bottom shows a real-time text-based summary of the rule that

you are defining. It provides a useful way to make sure the rule is designed as you intended.
