ioLogik E2200 Series Initial Setup

2-11

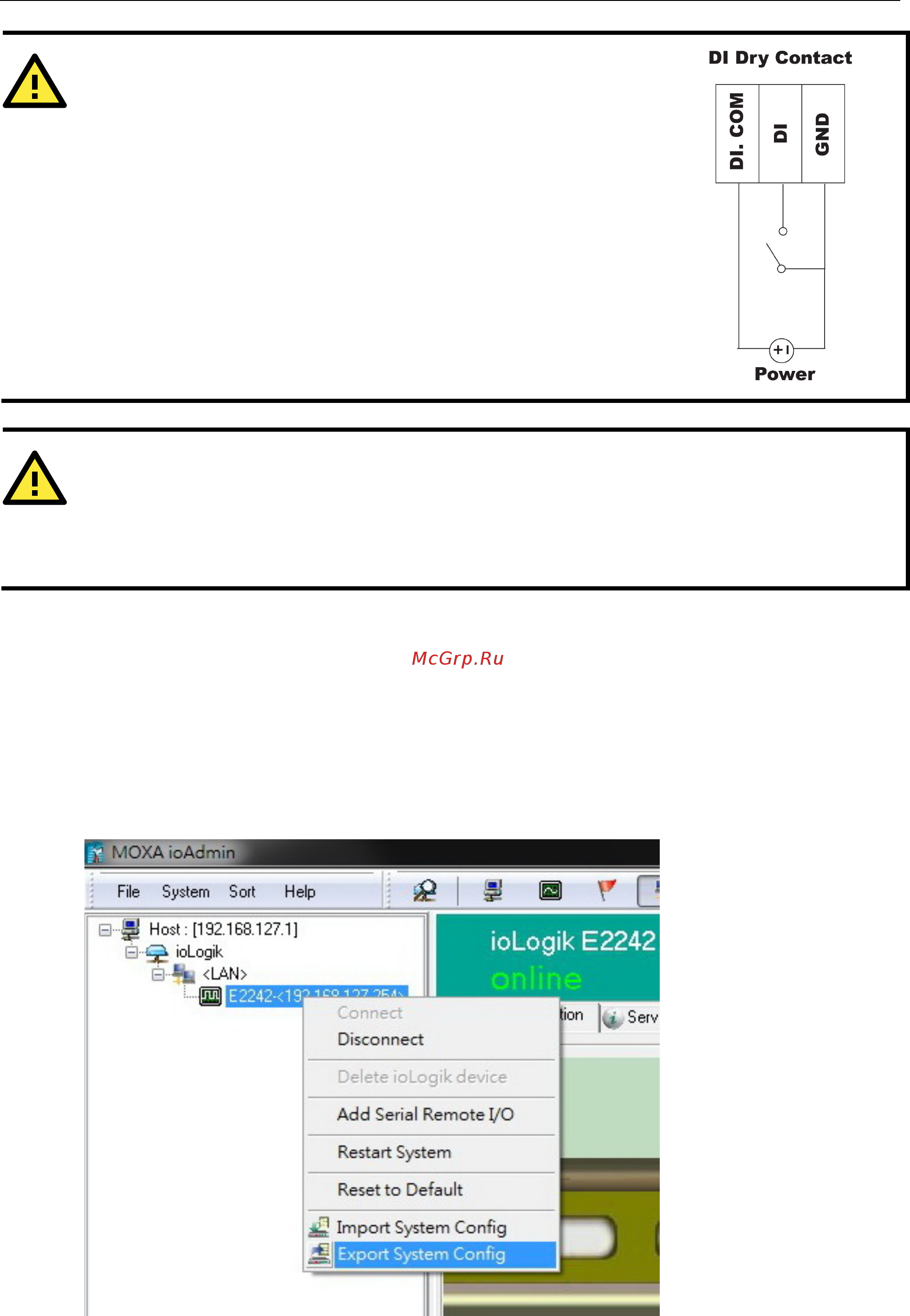

ATTENTION—Dry Contacts

When connecting an I/O device to the ioLogik’s dry contacts, connect DI.COM

to the power of the external sensor to avoid affecting other channels.

The

DI.COM input power should be between 12 to 36 VDC.

ATTENTION—DIO Channels

Sensor types are grouped, with DI

O-0 to DIO-5 forming one group and DIO-6- to DIO-11 forming another

group. If an NPN sensor is connected to DI

0, then only NPN sensors can be connected to the other DI channels

in the group (i.e., DI

O-4 and DIO-5). Likewise, if a PNP sensor is connected to DIO-6

, then only PNP sensors

can be connected to

the other DI channels in the group (i.e., DIO-10 and DIO-11).

Using ioAdmin to Import/Export Configurations

To import or export a system configuration right click on the I/O model name and then selection Import

System Config or Export System Config. You must be logged in as an administrator to use this command.

Export System Config

Select this command to export the selected ioLogik’s configuration to a text file. We recommend using this

method to back up your configuration after you have finished configuring the ioLogik for your application.
