ioLogik E2200 Series Active OPC Server
6-7
View

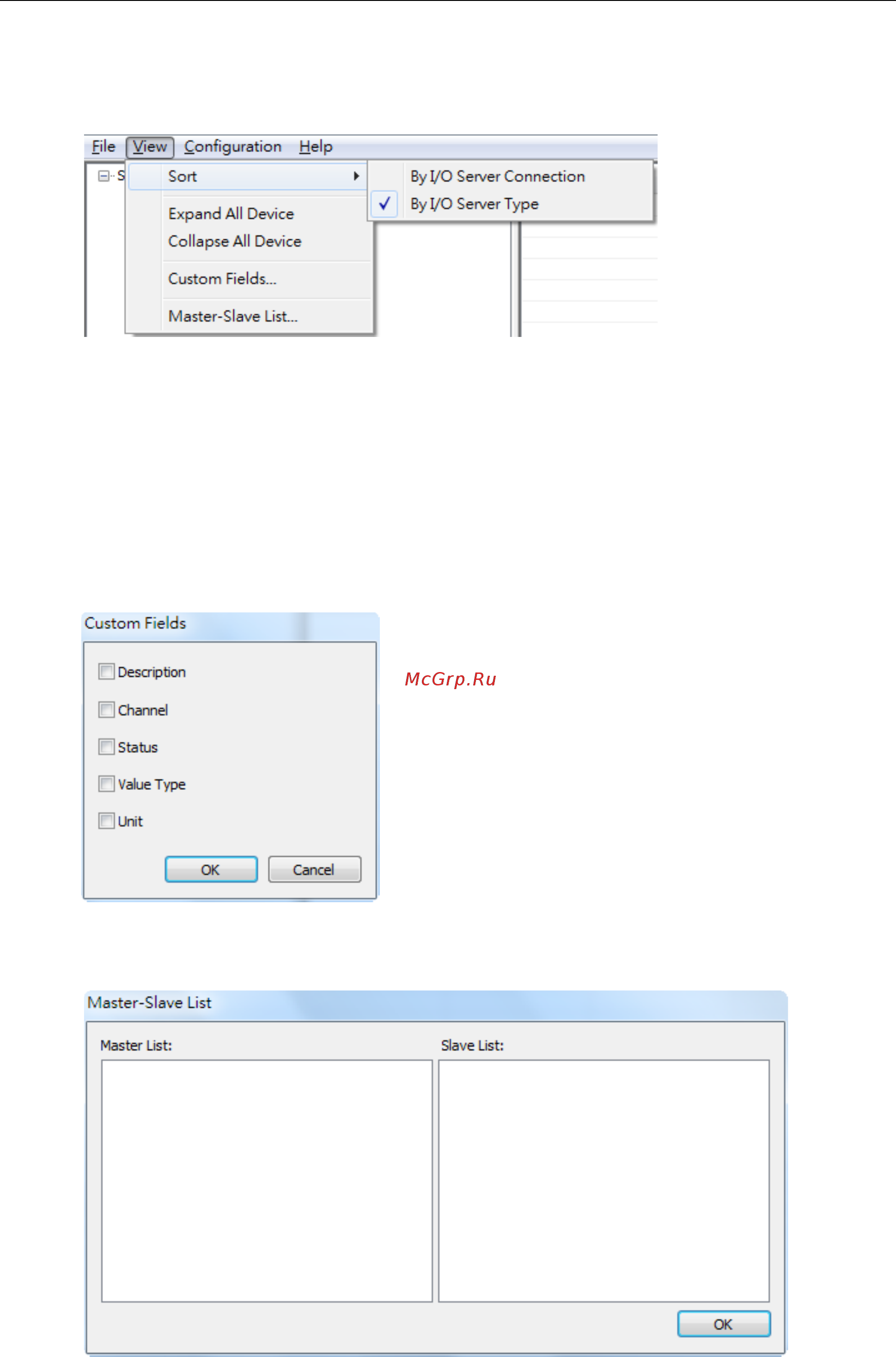

The View menu provides the following options for customizing the information displayed on the main screen.
Sort
The Sort option allows the server list in the navigation panel to be sorted by connection and type (model).
Expand All Device
The Expand All Device option will expand all the devices in the Navigation panel.
Collapse All Device
The Collapse All Device option will collapse all the devices in Navigation panel.
Custom Fields…
The Custom Fields… option allows you select additional information to be displayed in the tag window.
Master-Slave List…
The Master-Slave List… opens a window that identifies the Master and Slave devices on your network.
