Relay (Counts)

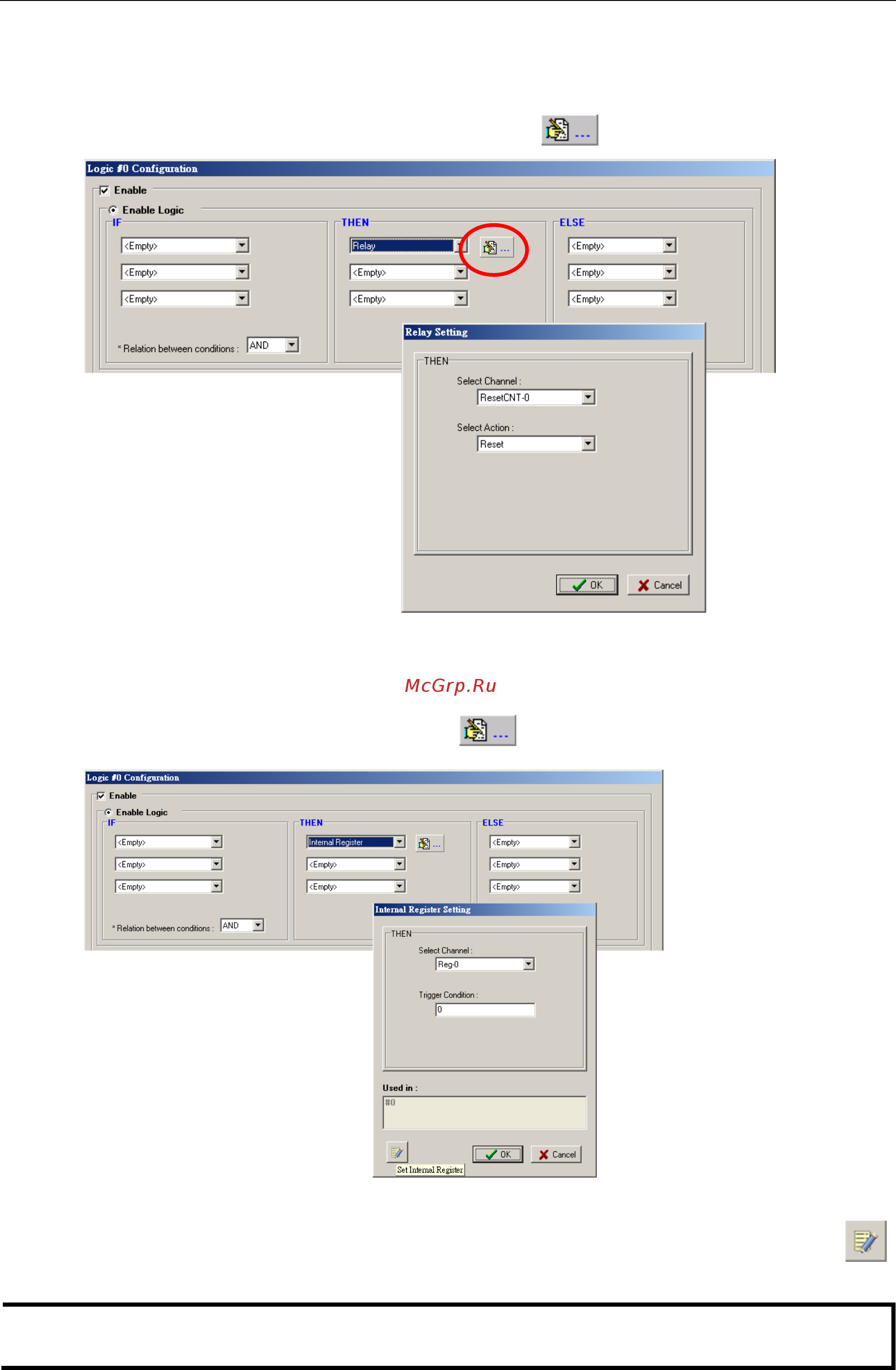

In the THEN/ELSE action, Relay refers to the current counts specifying how many times a relay has been

triggered. The counts are stored internally and can be cleared. “RESET” is the only operator. Select the

THEN/ELSE action to Relay and click on the property button ( ) to enter the Relay Settings window.

Internal Register (Integer)

Internal Register (Integer) represents a status flag to link the status of the first logic to the second one by

specifying other actions in the THEN/ELSE fields. Values from 0 to 255 can be used here. Select the THEN/ELSE

action for Timer and click on the property button ( ) to enter the Internal Register Settings window.

In the above figure, the “Used in:” column indicates that this Internal Register is also used in Rule-0, which

helps the user identify the relationship between the rules. In addition, the Set Internal Register button ( )

can be used to define the default values of all registers.

NOTE

Internal Register can be controlled by Modbus/TCP protocol. Refer to the appendix for the address list of

all

Internal Registers.
