ioLogik E2200 Series Active OPC Server
6-8
Configuration

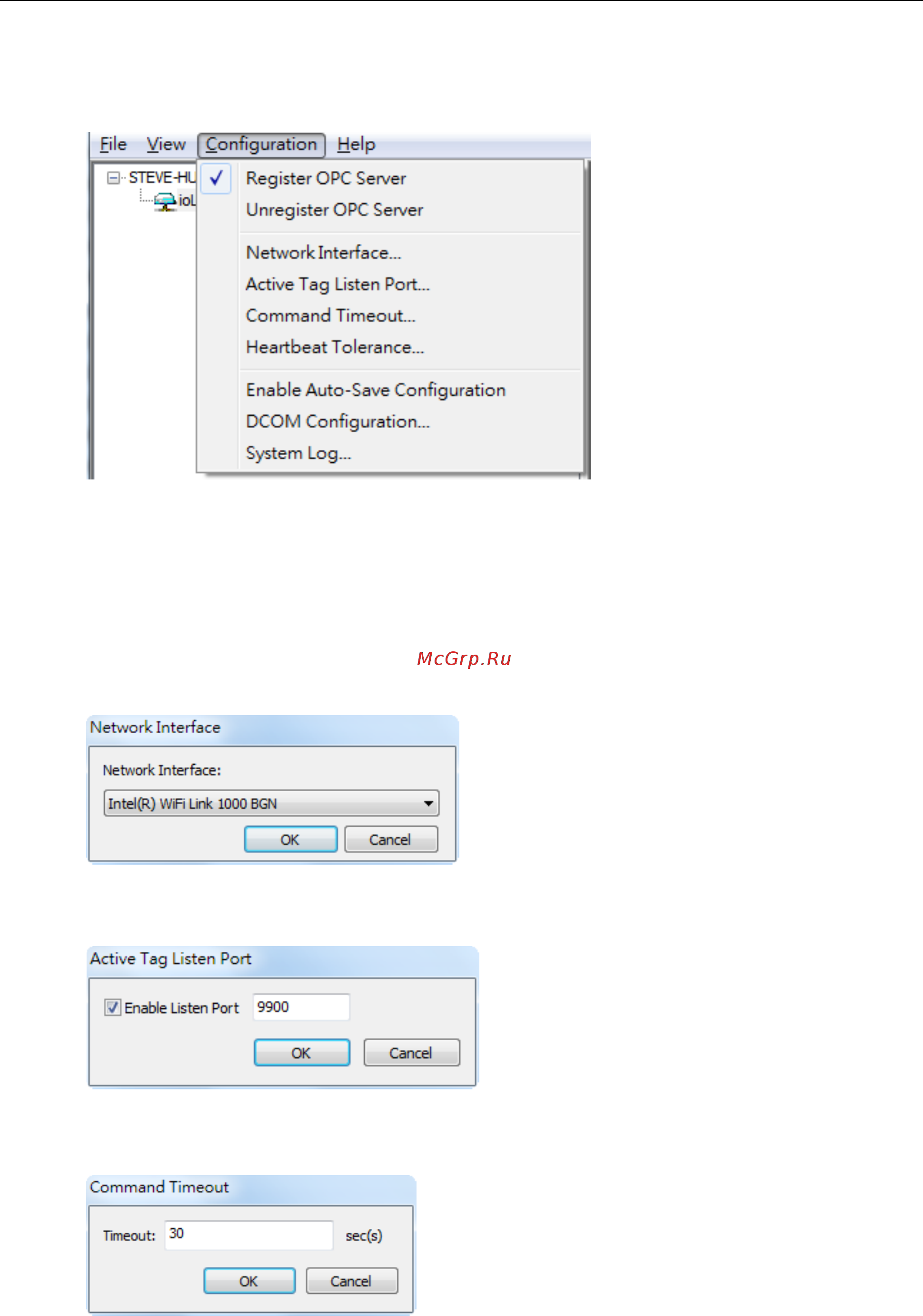

Several operations can be accessed from the Configuration menu.
Register OPC Server
This operation registers the DCOM components to a Windows system. After Active OPC Server Lite is installed,
it will automatically configure the DCOM.
Unregister OPC Server
This operation cancels the registration of the DCOM components from the Windows system.
Network Interface…
Use this operation to select which network to use if the PC has multiple network adaptors installed.
Active Tag Listen Port…
Use this operation to select the preferred TCP socket port for tag generation from the ioAdmin utility.
Command Timeout…
This operation defines the timeout interval for controlling an output channel on a remote ioLogik device.
