ioLogik E2200 Series Using ioAdmin
3-37

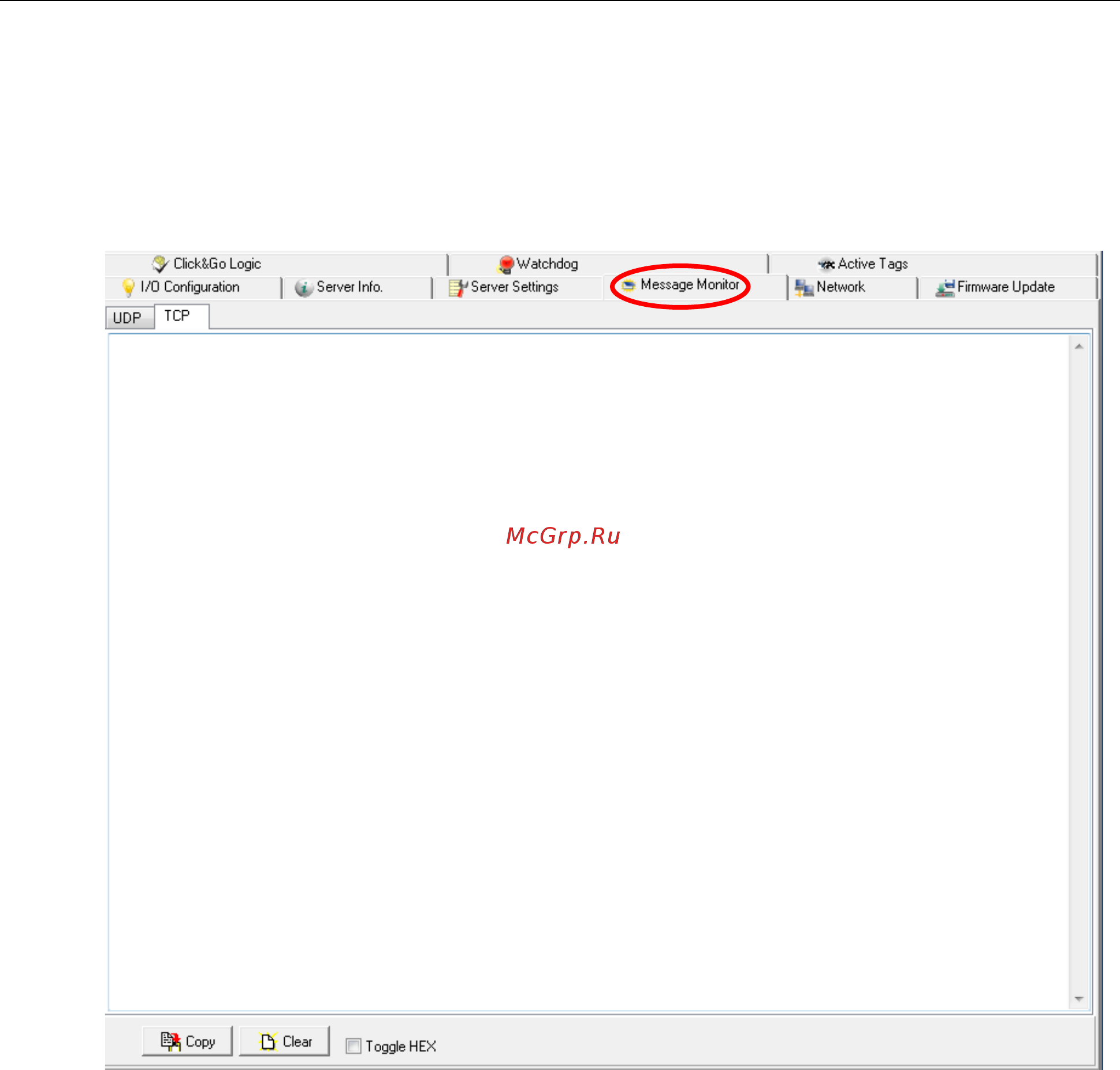

Message Monitor Panel (General)
The Message Monitor panel will display any TCP/UDP Active Messages reported by the ioLogik. When you install
the unit for the first time, the ruleset will not have been defined yet, so there will be no messages on the
Message Monitor Panel. When a ruleset has been defined and activated, any TCP/UDP messages that have been
triggered by sensor events will be shown on the Message Monitor panel.
Messages can be displayed in HEX. To display messages in HEX, make sure the “HEX” button at the bottom of
the window is checked.
