ioLogik E2200 Series Using the Web Console
5-7

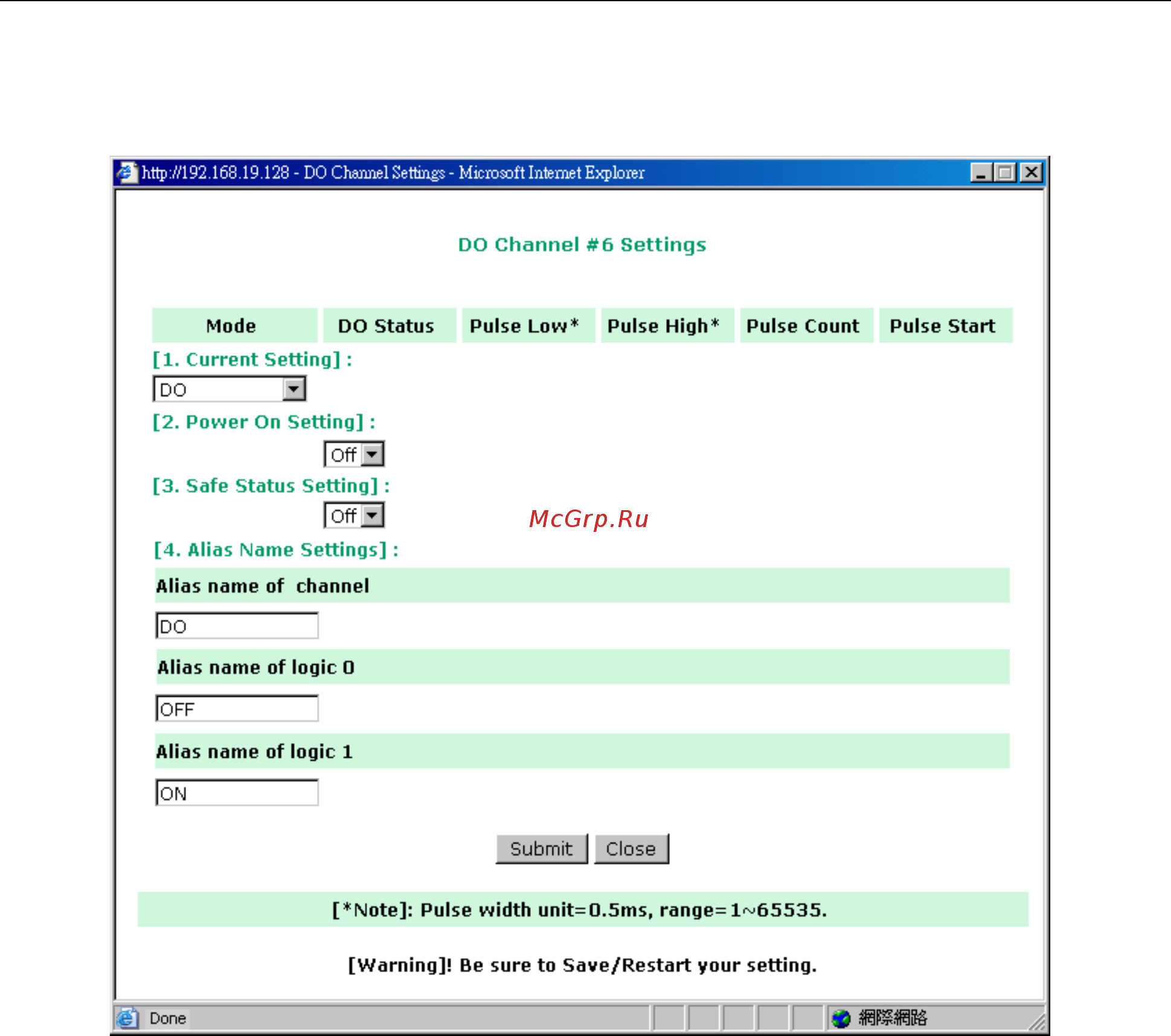

Click on a channel to see that channel’s configuration options. DO Channels can operate in DO mode or Pulse
Output mode. In DO mode, output is either on or off. In Pulse Output mode, a configurable square wave is
generated.
By default, DO and Pulse Output channels are set to “off” when the ioLogik is powered on. You can set a channel
to automatically turn on or begin pulse output when the ioLogik is powered on, by enabling Power On Setting.
