ioLogik E2200 Series Active OPC Server
6-9

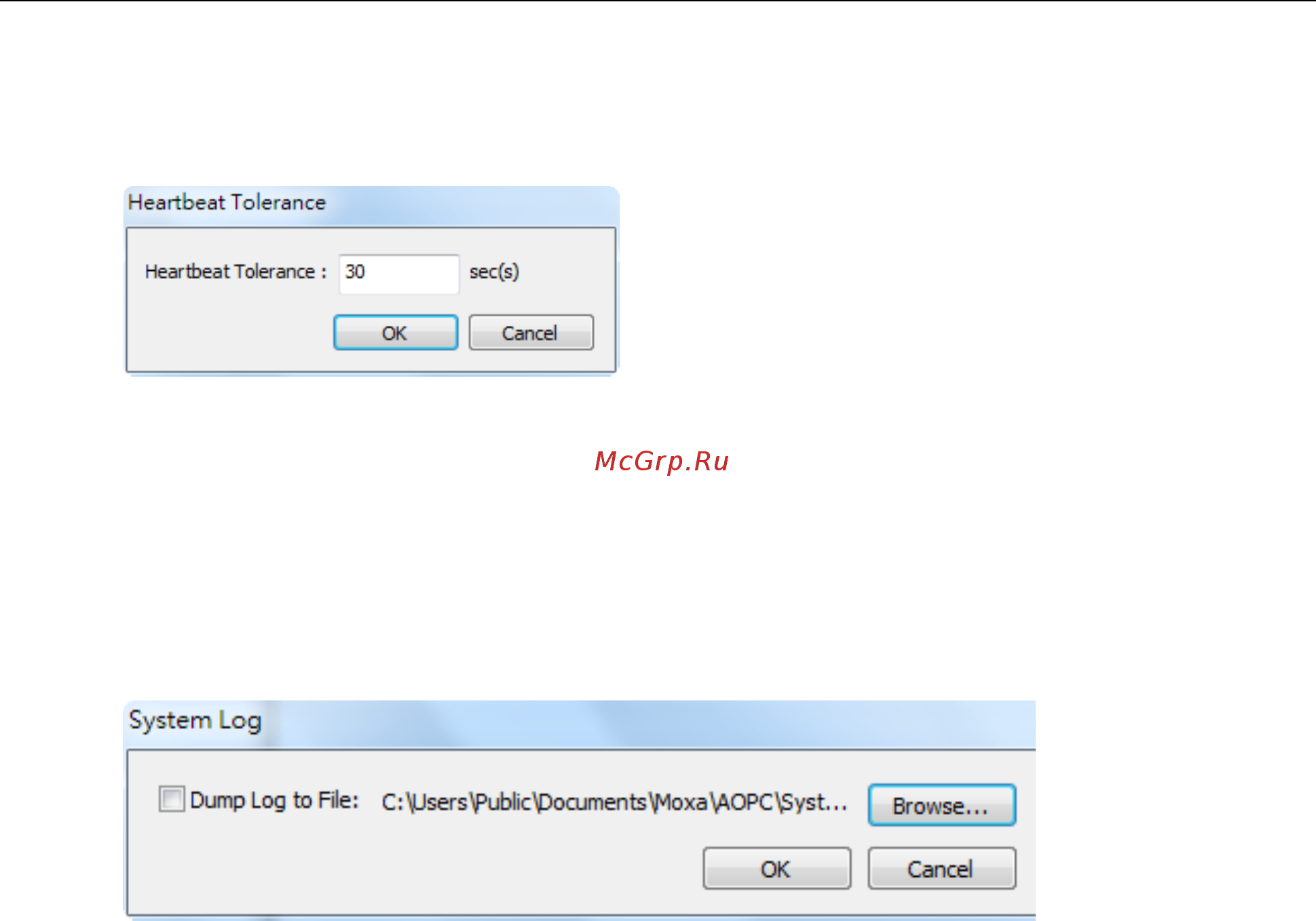

Heartbeat Tolerance…
This operation defines the amount of time to wait for a heartbeat signal from a remote ioLogik device (default:
60 seconds).
Enable Auto-Save Configuration
When Auto Save is enabled, Active OPC will automatically save the configuration when Access synchronizes.
DCOM Configuration…
This operation launches the Windows DCOM configuration utility.
System Log
Selecting Dump Log to File will store a copy of the Active OPC Server system log in a designated folder.
