ioLogik E2200 Series Using ioAdmin
3-36

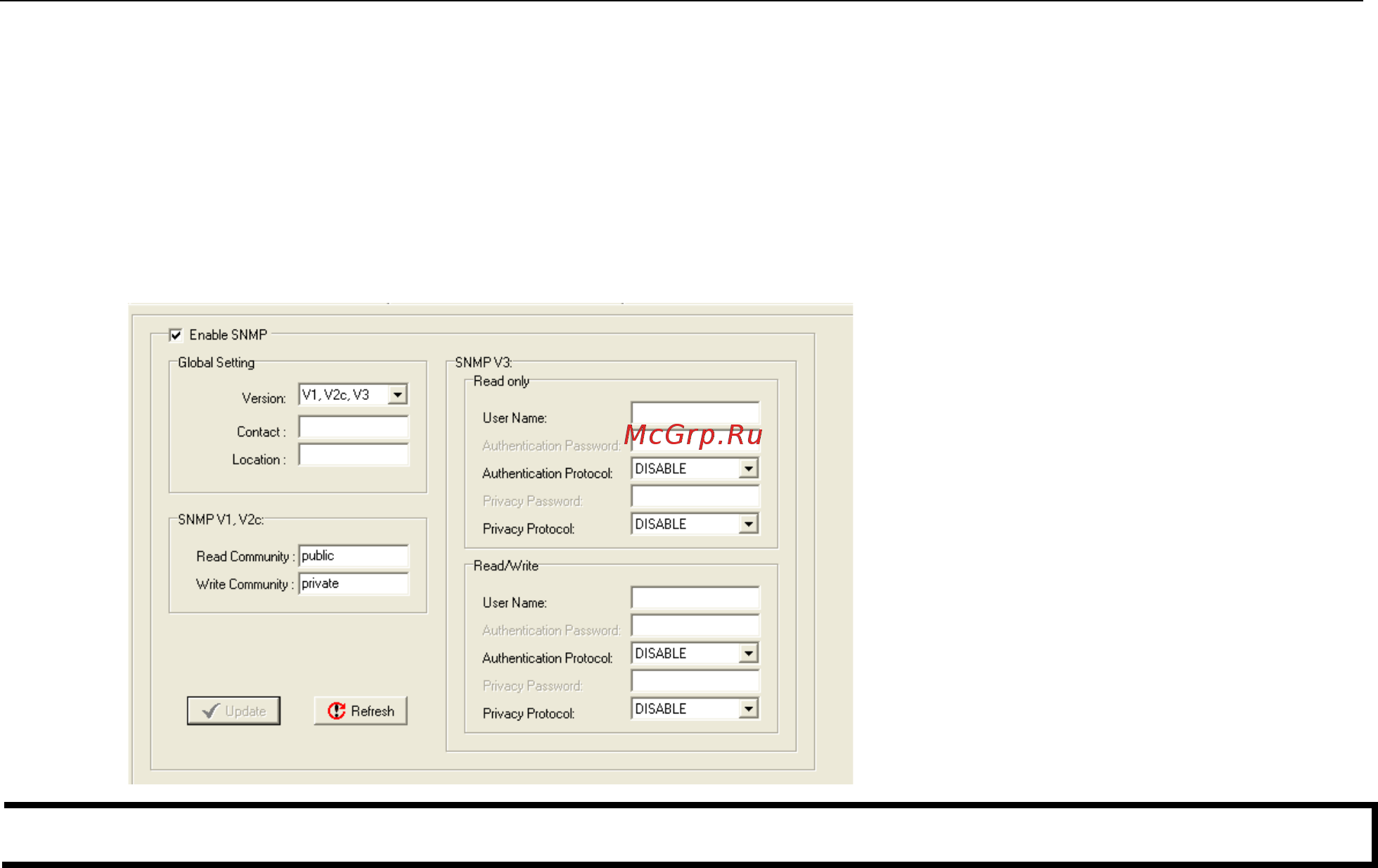

SNMP Settings Tab
The ioLogik supports SNMP V1, V2c, and V3 (Simple Network Management Protocol) to monitor network and
I/O devices with SNMP Network Management software. It is useful in building automation and telecom
applications. Use these fields to enable SNMP and set the read and write community strings for SNMP V1 and
V2c, or use authentication for SNMP V3.
NOTE
SNMP v3
is not supported by E2210 and E2240 hardware version V1.X
